K111 Fuel Pump Driver Control Module (LH7)

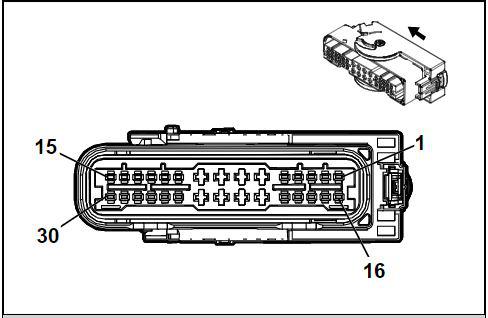

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 19300432 | J-35616-2A (GY) | J-38125-217 | Not Available | Not Available | Not Available | Not Available |
| II | 19300635 | J-35616-2A (GY) | J-38125-217 | Not Available | Not Available | Not Available | Not Available |
| III | Not Available | J-35616-35 (VT) | J-38125-12A | 1326030-8 | Lear 17 | A | 4 |
| IV | Not Available | J-35616-35 (VT) | J-38125-12A | 1326030-8 | Lear 17 | Not Available | Not Available |
| V | Not Available | No Tool Required | Not Available | Not Required | Not Required | Not Required | Not Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | WH/BU | 6862 | Water In Fuel Sensor 5V Reference | IV | - |
| 2 | 0.35 | BU/YE | 6861 | Water In Fuel Sensor Signal | II | - |
| 3 | - | - | - | Not Occupied | - | - |
| 4 | 0.35 | BU/VT | 455 | Fuel Filter Temperature Signal | II | - |
| 5 | 0.35 | WH | 7494 | High Speed GMLAN Serial Data (-)3 | II | - |
| 6 | 0.35 | VT/GN | 39 | Run/Crank Ignition 1 Voltage | II | - |
| 7 | 2.5 | RD/BU | 3240 | Battery Positive Voltage | I | - |
| 8 | 1 | GY | 120 | Fuel Pump Control | III | - |
| 9 | 1 | YE/GY | 4137 | Fuel Pump Supply Voltage Phase 2 | III | - |
| 10 - 11 | - | - | - | Not Occupied | - | - |
| 12 | 0.5 | BU/RD | 7445 | Fuel Line Pressure Sensor 5V Reference | I | - |
| 13 | 0.5 | BU/VT | 1589 | Primary Fuel Level Sensor Signal | III | - |
| 14 | 0.5 | BU/WH | 1937 | Secondary Fuel Level Sensor Signal | V | - |
| 15 | 0.5 | WH | 4499 | High Speed GMLAN Serial Data (-) 7 | V | - |
| 16 | 0.35 0.5 |
VT/BU VT/YE |
3674 5985 |
NOx Sensor 1 Control Accessory Wakeup Serial Data |
V V |
NDE -NDE |
| 17 | 0.35 | VT/GN | 39 | Run/Crank Ignition 1 Voltage | V | - |
| 18 | 0.35 | GN/GY | 465 | Fuel Pump Primary Relay Control | V | - |
| 19 | 0.35 | BK/VT | 412 | Fuel Filter Temperature Sensor Low Reference | V | - |
| 20 - 21 | - | - | - | Not Occupied | - | - |
| 22 | 2.5 | BK | 1950 | Ground | V | - |
| 23 | 0.35 | BU | 7443 | Fuel System Control Module Shield Ground Extension | V | - |
| 24 | 1 | WH/BN | 4138 | Fuel Pump Supply Voltage Phase 3 | V | - |
| 25 | 0.35 | BK/BU | 6863 | Water In Fuel Sensor Low Reference | V | - |
| 26 | 0.5 | BU/WH | 7446 | Fuel Line Pressure Sensor Signal | V | - |
| 27 | 0.5 | BK/YE | 7447 | Fuel Line Pressure Sensor Low Reference | V | - |
| 28 | 0.5 | BK/GN | 6281 | Fuel Level Sensor Low Reference | V | - |
| 29 | 0.5 | BK/BU | 6282 | Fuel Level Sensor 2 Low Reference | V | - |
| 30 | 0.5 | BU/BN | 4498 | High Speed GMLAN Serial Data (+) 7 | V | - |
