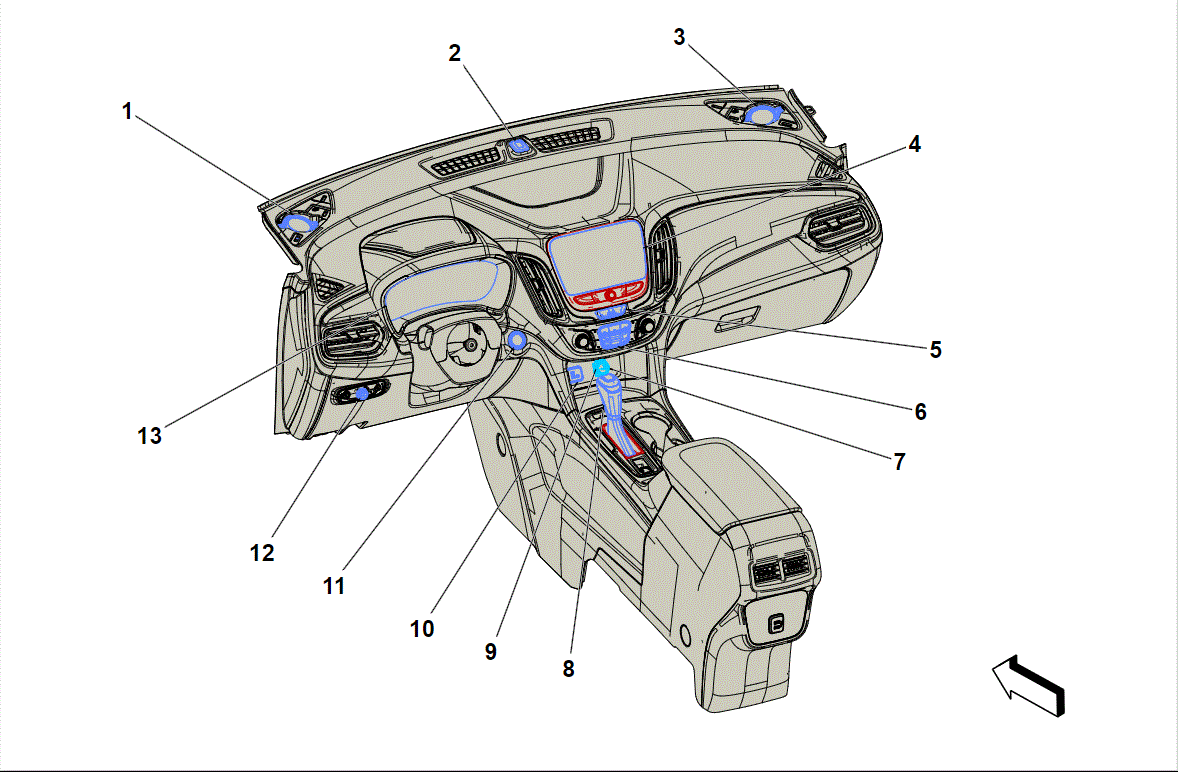

Instrument Panel and Shift Lever

Courtesy of GENERAL MOTORS COMPANY

Items
1. P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQA)P19J Speaker - Left Instrument Panel (UZ6)
2. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor (CJ2+UE1)B10B Ambient Light/Sunload Sensor (CJ2-UE1)
3. P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (UQA)P19W Speaker - Right Instrument Panel (UZ6)
4. P17 Info Display Module P17 Info Display Module X1 (EPH+(IOS/IOT/IOU))P17 Info Display Module X1 (IOR)P17 Info Display Module X1 (IOS/IOT/IOU-EPH)P17 Info Display Module X2 (IOR)P17 Info Display Module X2 (IOS/IOT/IOU)
5. S26 Hazard Warning Switch S26 Hazard Warning Switch ()
6. A26 HVAC Controls A26 HVAC Controls
7. X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel
8. S3 Transmission Shift Lever (Without EPH) S3 Transmission Shift Lever (-EPH)
9. E32 Cigarette Lighter Receptacle (SAO/U37) E32 Cigarette Lighter Receptacle (SAO/U37)
10. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 (MCR+MCZ)X83 Auxiliary Audio Input X1 (UKS+USR)X83 Auxiliary Audio Input X2 (MCZ)X83 Auxiliary Audio Input X2 (UKS+USR)
11. S38 Ignition Mode Switch S38 Ignition Mode Switch
12. S30 Headlamp Switch S30 Headlamp Switch
13. P16 Instrument Cluster P16 Instrument Cluster X1 P16 Instrument Cluster X3
