Installation Procedure

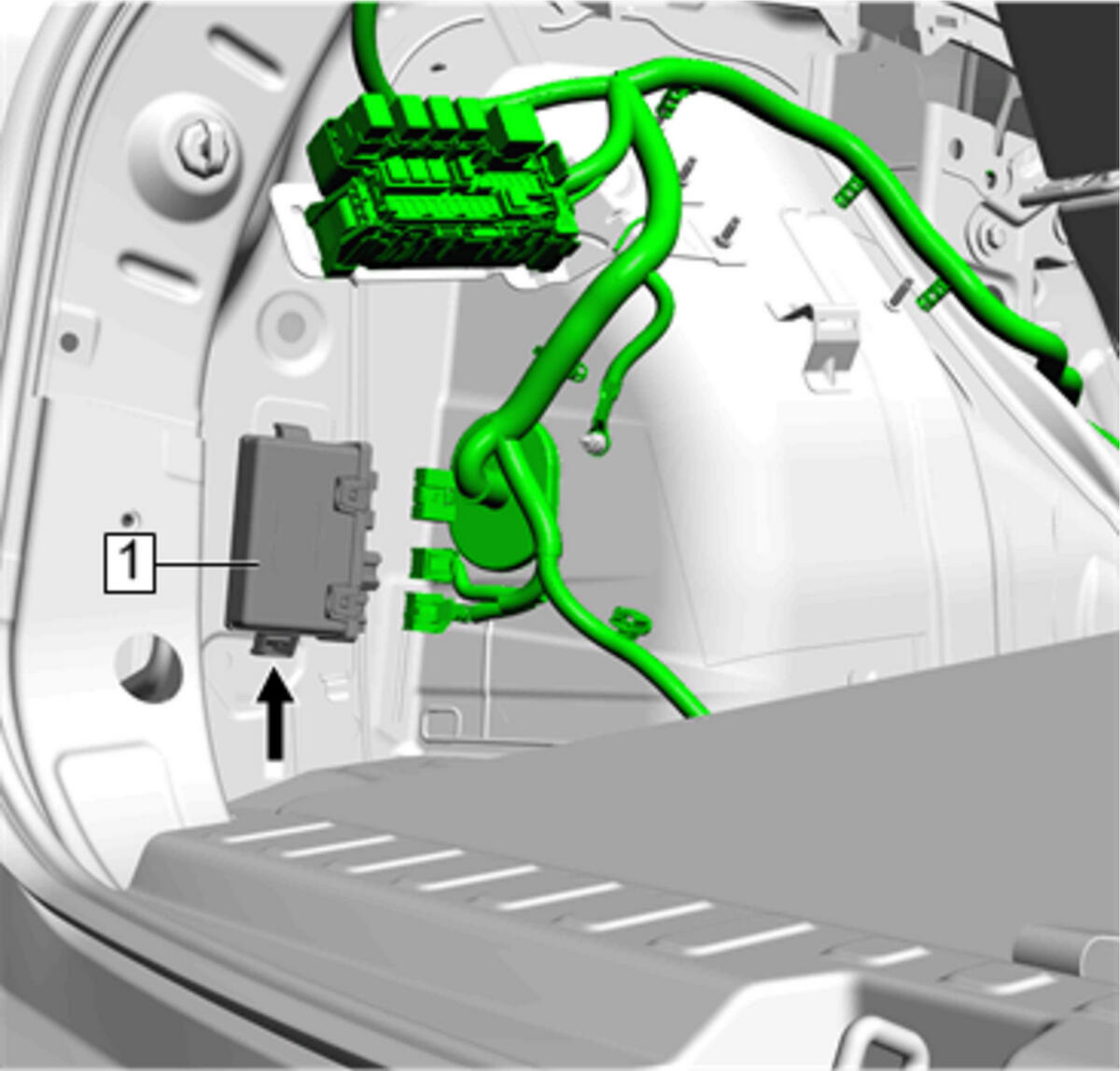

  1. Accessory and Liftgate Control Module(1) - Install
    GM4573159Courtesy of GENERAL MOTORS COMPANY

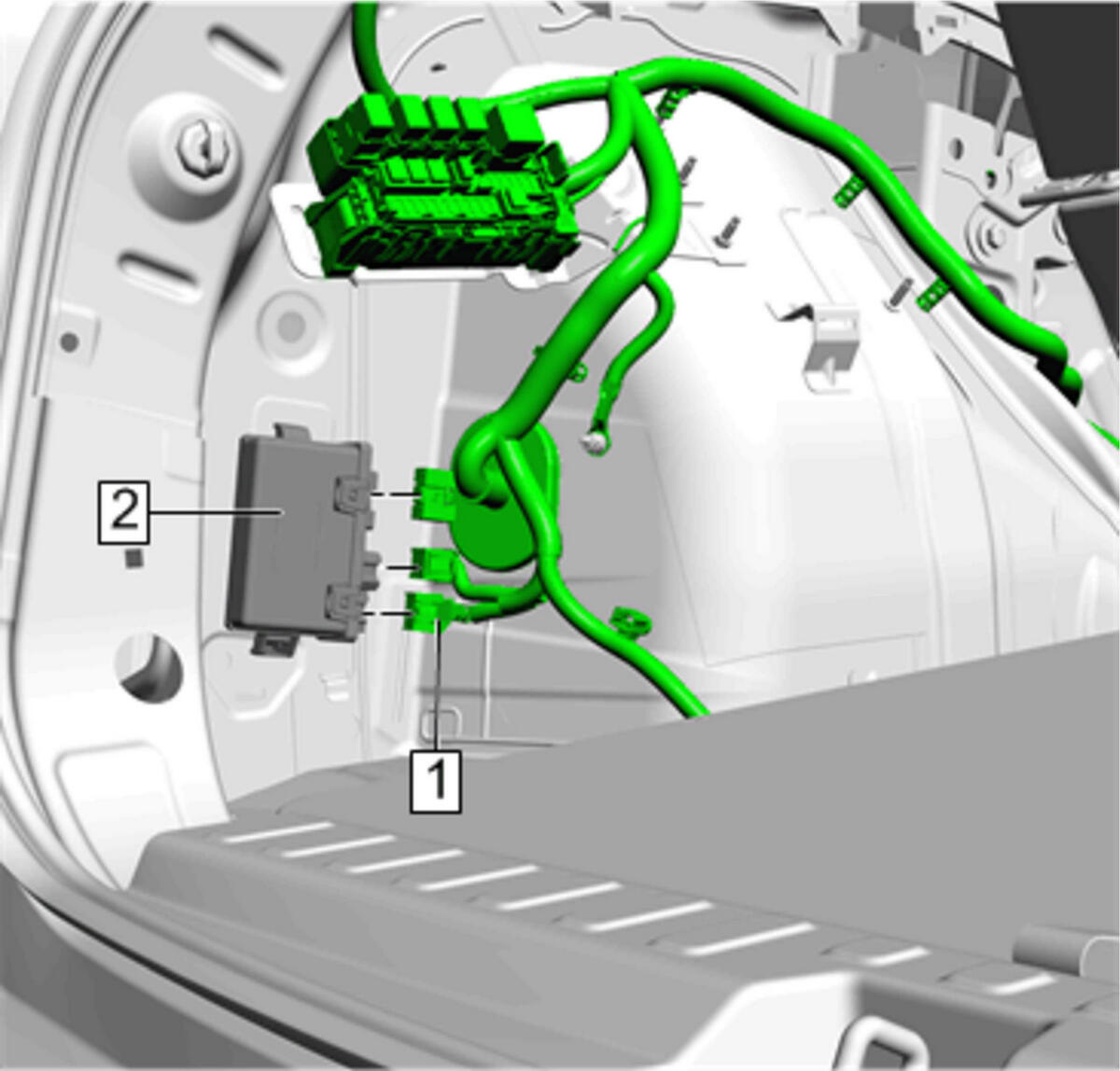

  2. Electrical Connector (1)@Accessory and Liftgate Control Module(2) - Connect
    GM4573150Courtesy of GENERAL MOTORS COMPANY
  3. Quarter Lower Rear Trim Panel(1) - Install - Quarter Lower Rear Trim Panel Replacement (Left Side)Quarter Lower Rear Trim Panel Replacement (Right Side)
  4. Perform the necessary programming and setup procedure:Control Module References
