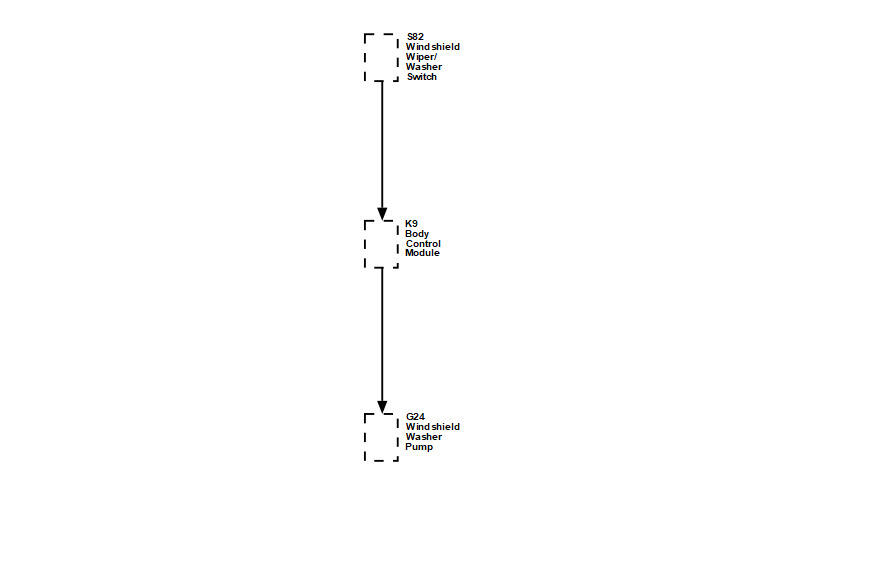

Front Washer-Washer Fluid Level Block Diagram

GM3639955

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
S82	S82 Windshield Wiper/Washer Switch
K9	K9 Body Control Module
G24	G24 Windshield Washer Pump
