Transfer Case Control Module Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

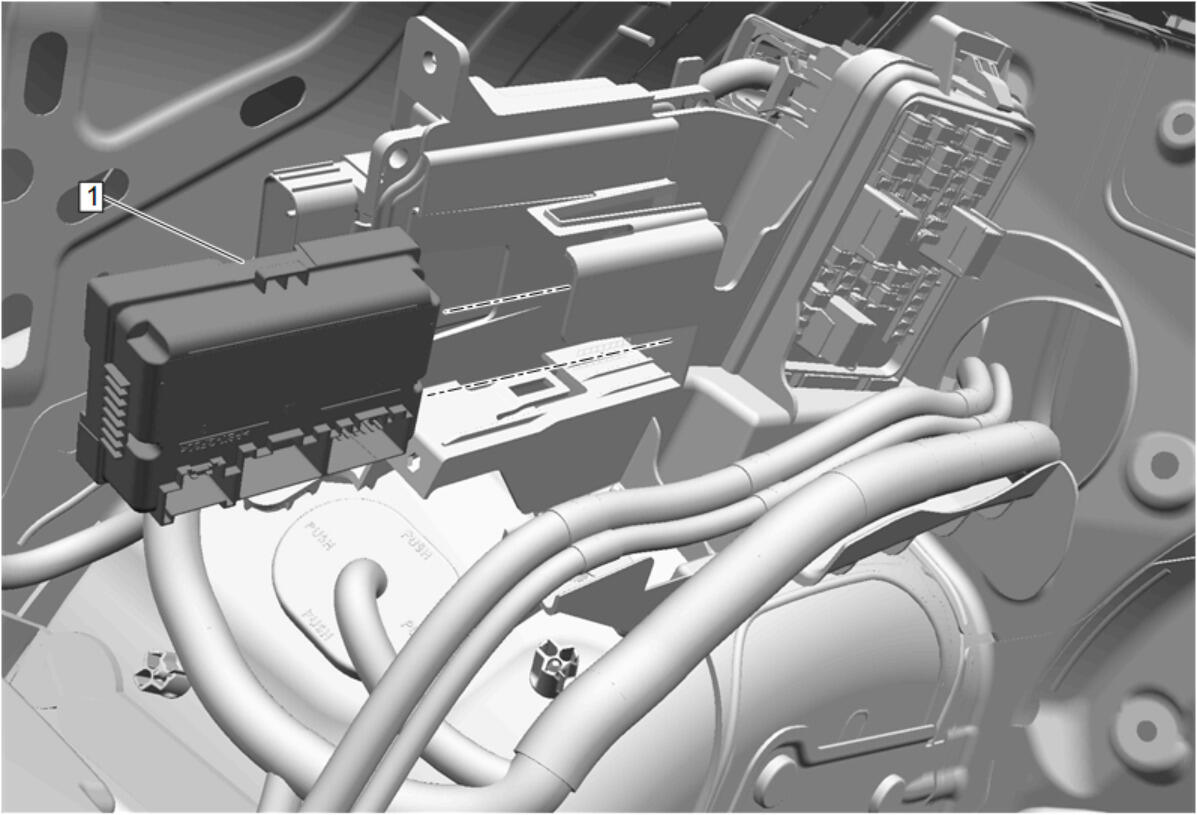

GM5330914

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Rear Compartment Side Trim Replacement - Left Side

1

Transfer Case Control Module

Procedure

Disconnect the electrical connectors.
Remove the module from the module bracket by releasing the retaining tabs and sliding it out of the bracket.
After replacing the transfer case control module, record the clutch calibration identification number. Transfer Case Identification
Program K69 transmission control module. K69 Transfer Case Control Module: Programming and Setup
