Turn Signal Switch Replacement

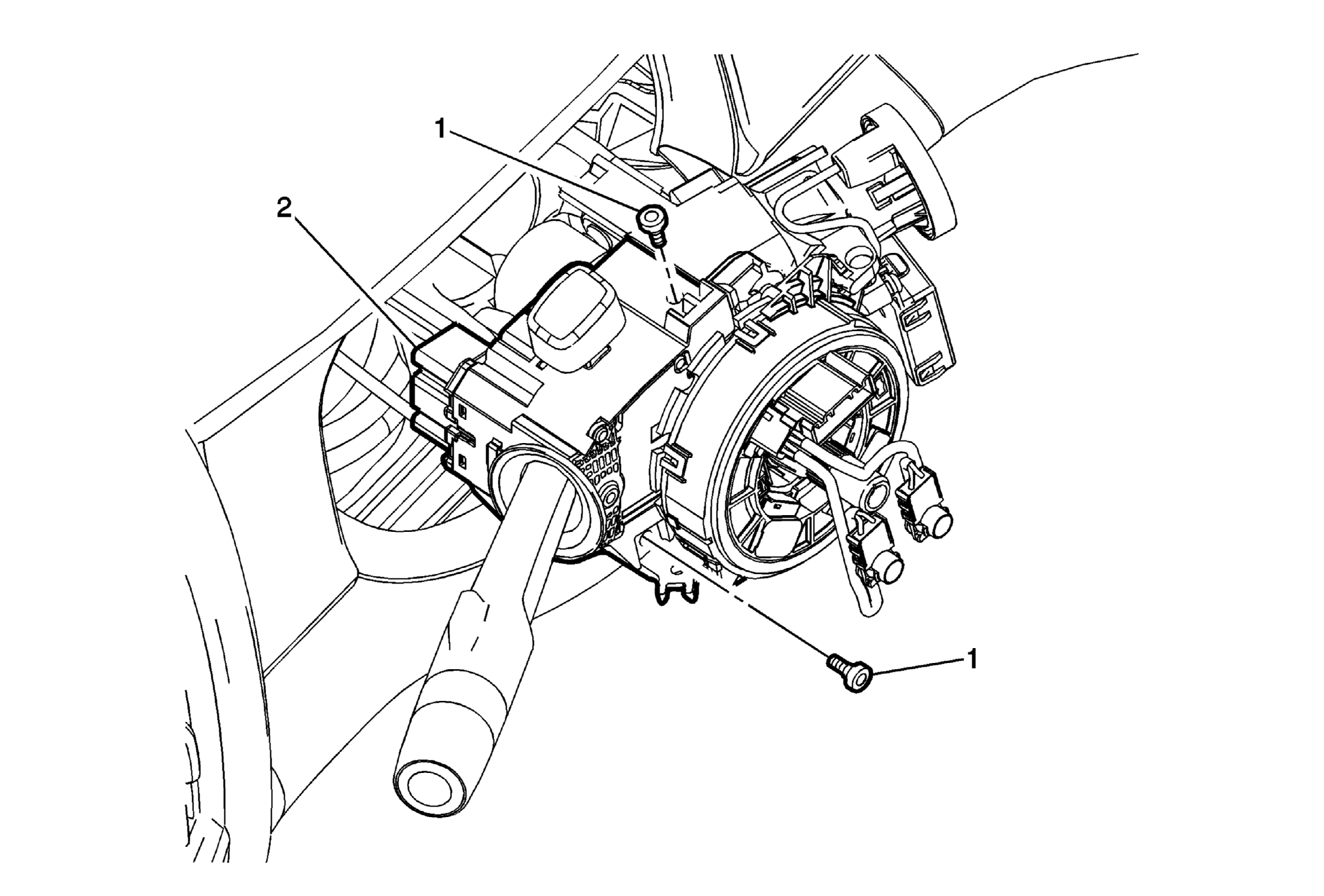

GM3344440Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Wheel Replacement
  2. Steering Column Shroud Replacement (Manual Tilt) Steering Column Shroud Replacement (Manual Tilt and Telescope)
1 Turn Signal Switch Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
.9 - 1.4 N.m (8 - 12 lb in)
2 Turn Signal Switch

Procedure

  1. Disconnect the electrical connectors.
  2. Press in the pin on the front of the turn signal switch to avoid interference with the turn signal switch cancel cam position plate.
