Removal Procedure

Steering Column - Remove - Steering Column Replacement
Range Selector Lever Cable Lever - Remove - Range Selector Lever Cable Lever Replacement
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Do not use excessive force when removing the automatic transmission shift lock control from the steering column. Using excessive force may cause damage to the automatic transmission shift lock control and/or the steering column.

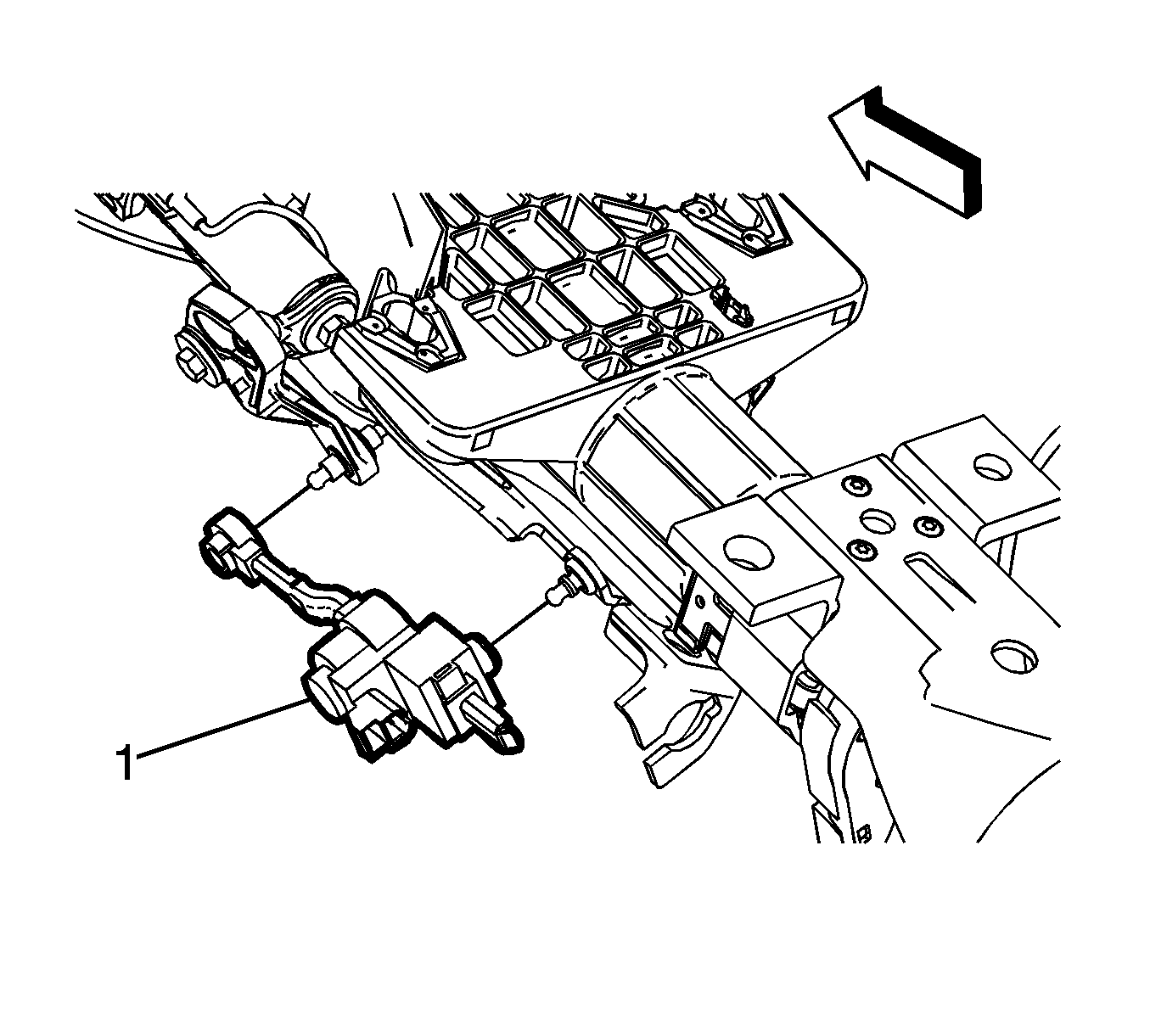

Remove the automatic transmission shift lock control solenoid (1) from the automatic transmission control bracket. Automatic Transmission Shift Lock Control Actuator Replacement
Courtesy of GENERAL MOTORS COMPANY

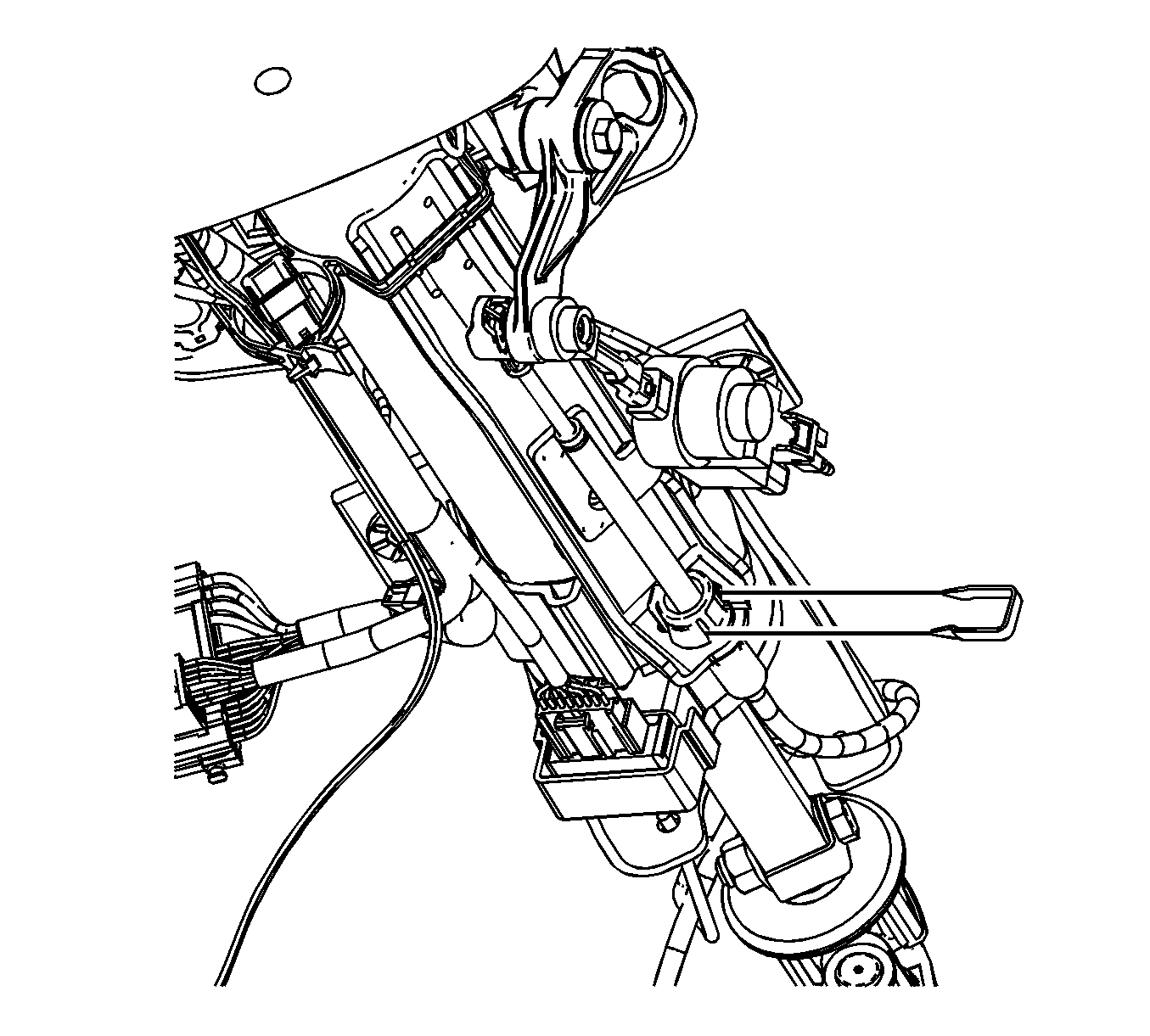

Disconnect the range selector lever cable and set aside. Range Selector Lever Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The ignition lock cylinder should be in the OFF-LOCK position.

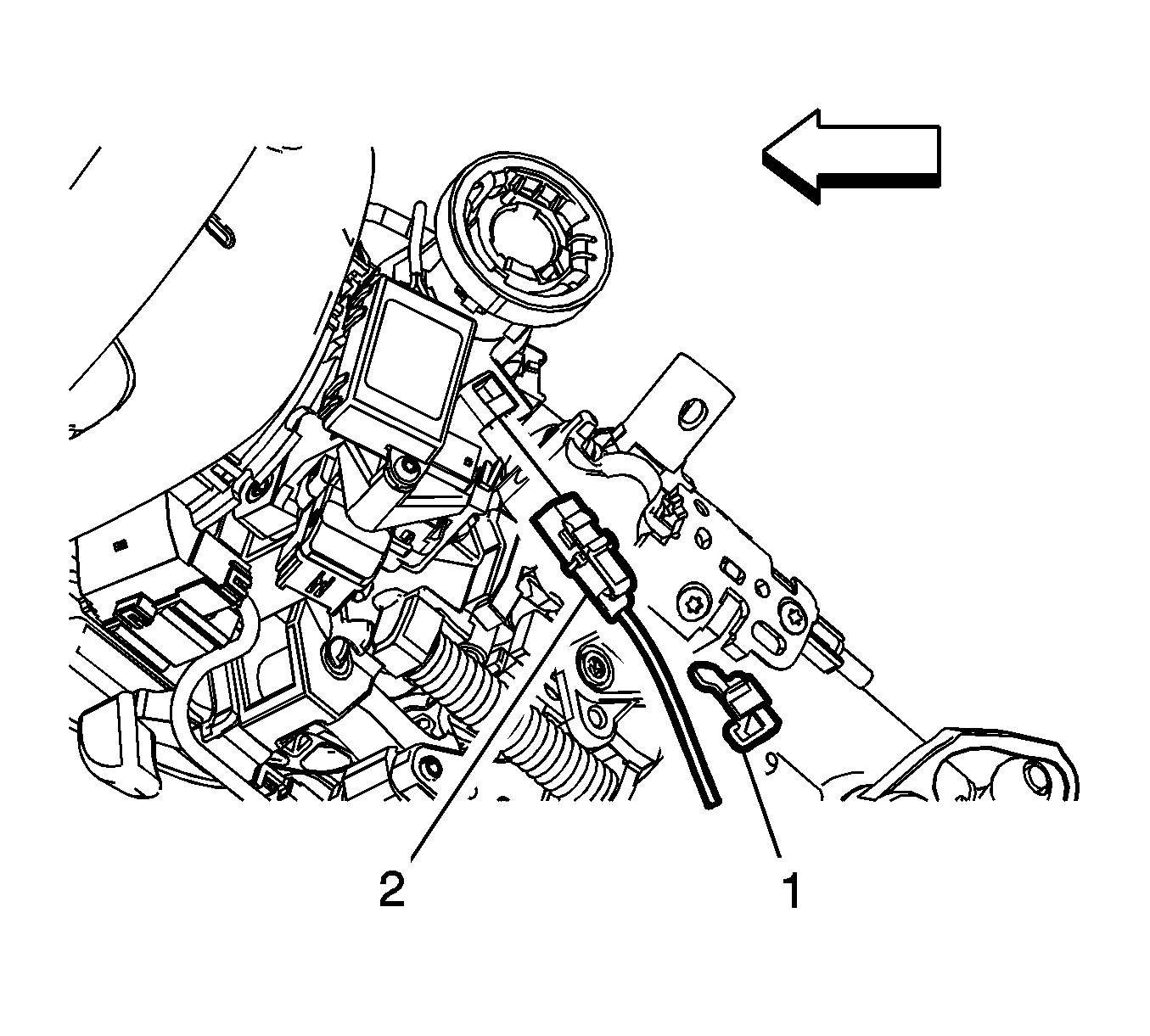

Remove the automatic transmission park lock cable retainer (1).
Disconnect the automatic transmission park lock cable (2) from the ignition lock cylinder case.
Courtesy of GENERAL MOTORS COMPANY

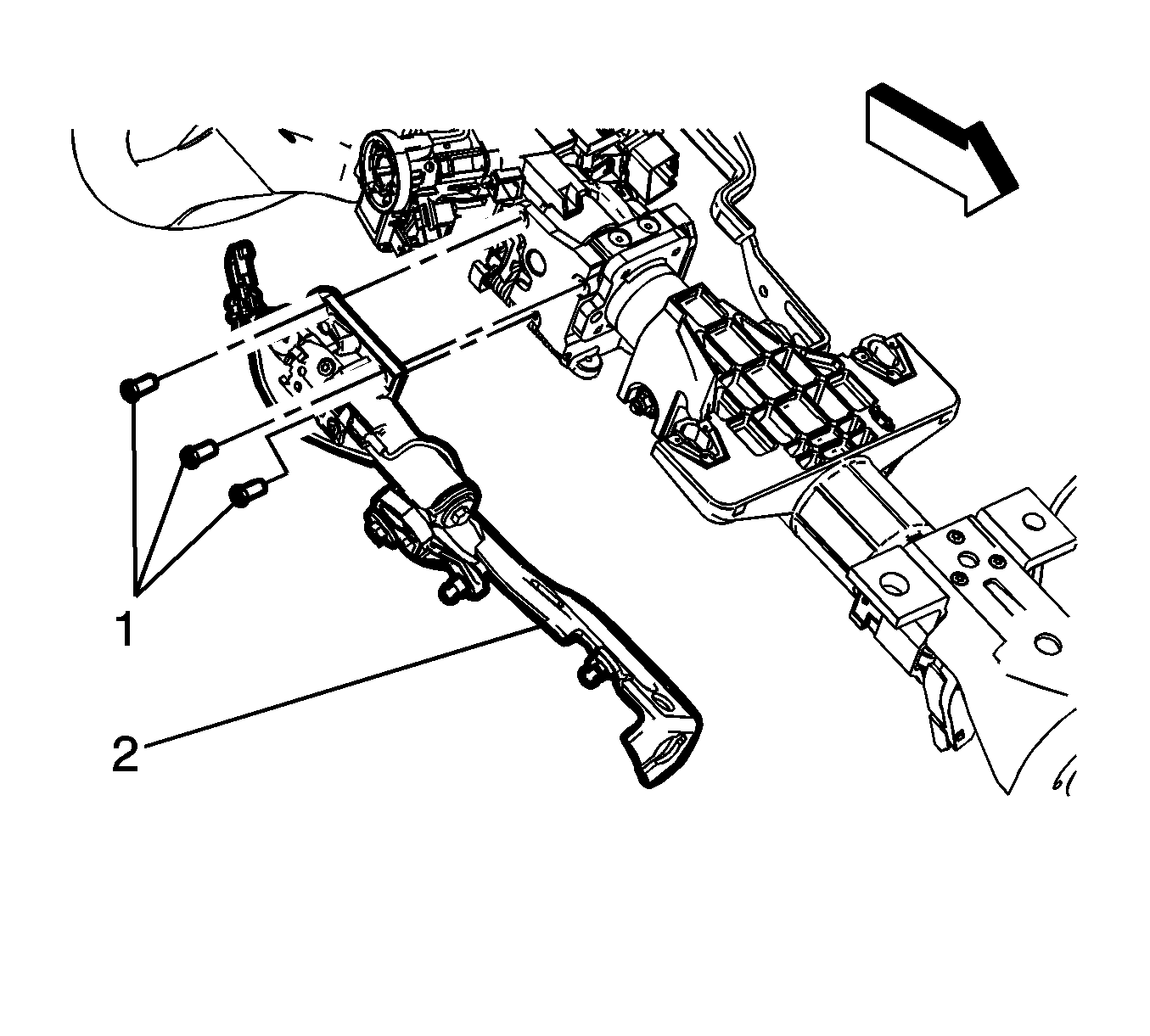

Remove the automatic transmission control bolts (1).
Remove the automatic transmission control (2) from the steering column.
