Chassis Control Module Replacement

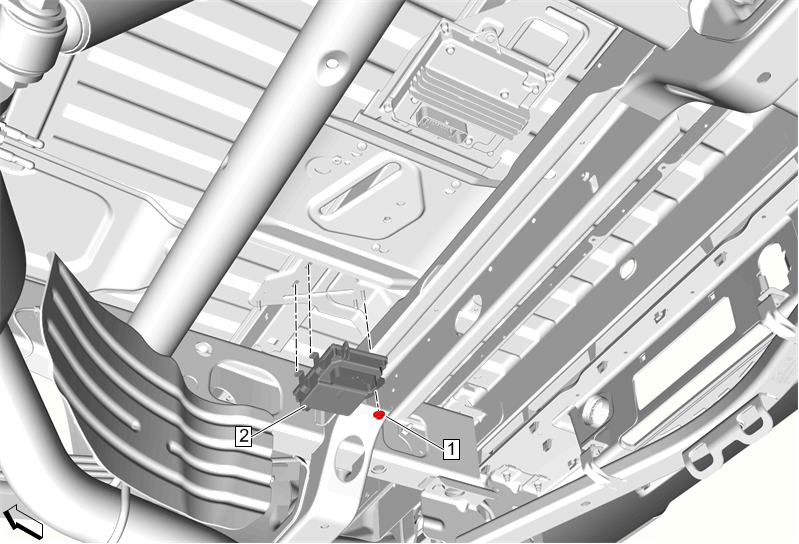

GM5045250Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Spare Wheel Hoist Replacement
1 Chassis Control Module Nut
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Chassis Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, reprogram the module. Control Module References
