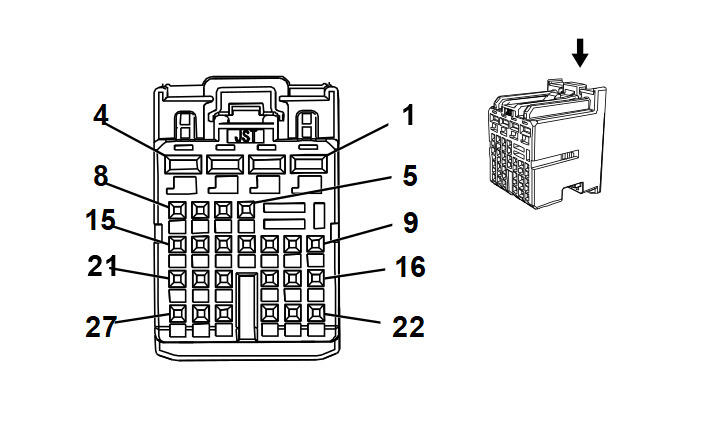

K9 Body Control Module X6
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray Name | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13575789 | J-35616-35 (VT) | J-38125-12A | SNAC-A061T-M2.8 | Delphi 20 | C | A |
| II | 13582297 | J-35616-64B (LT BU) | J-38125-215A | Not Available | Not Available | Not Available | Not Available |
| III | 13587507 | J-35616-35 (VT) | J-38125-12A | Not Available | Not Available | Not Available | Not Available |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 1.5 | BU/WH | 195 | Door Lock Control | I | - |
| 2 | 1.5 | GY/GN | 3271 | Door Lock Control 2 | I | - |
| 3 | 1.5 | BK | 1850 | Ground | I | - |
| 4 | 0.75 1.5 |
BN/YE BN/YE |
294 294 |
Door Lock Actuator Unlock Control Door Lock Actuator Unlock Control |
III I |
A91 -A91 |
| 5 | - | - | - | Not Occupied | - | - |
| 6 | 0.35 | BU/VT | 1124 | Door Lock Key Switch Unlock Signal | II | - |
| 7 - 8 | - | - | - | Not Occupied | - | - |
| 9 | 0.5 | GN/BU | 6133 | Local Interconnect Network Serial Data Bus 2 | II | - |
| 10 | 0.5 | GN/YE | 6134 | Local Interconnect Network Serial Data Bus 3 | II | - |
| 11 | - | - | - | Not Occupied | - | - |
| 12 | 0.5 | YE/BK | 5356 | Left Tail Lamp Outage Detection Signal | II | - |
| 13 - 20 | - | - | - | Not Occupied | - | - |
| 21 | 0.35 | WH/VT | 3270 | Driver Door Lock Motor Status Signal | II | - |
| 22 | 0.5 | VT/YE | 5357 | Right Tail Lamp Outage Detection Signal | II | - |
| 23 | - | - | - | Not Occupied | - | - |
| 24 | 0.5 | BU | 2500 | High Speed GMLAN Serial Data (+) 1 | II | - |
| 25 | 0.5 | WH | 2501 | High Speed GMLAN Serial Data (-) 1 | II | - |
| 26 | 0.5 | BN/WH | 1429 | Standing Lamp Relay Control | II | - |
| 27 | - | - | - | Not Occupied | - | - |
