Installation Procedure

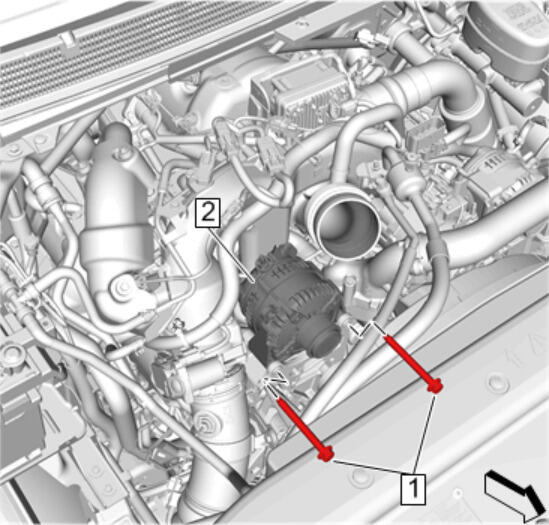

  1. GM4542759Courtesy of GENERAL MOTORS COMPANY

    Generator (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Generator Bolt (1) - Install and tighten [2x] 58 N.m (43 lb ft)

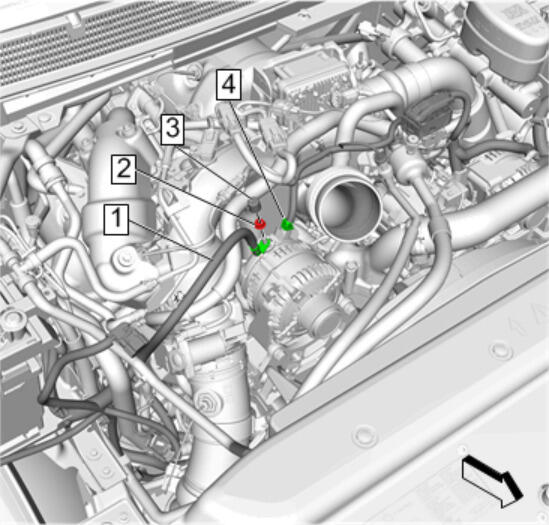

  3. GM4542758Courtesy of GENERAL MOTORS COMPANY

    Generator Battery Control Wiring Harness (1) - Install

  4. Generator Positive Cable Fastener (2) - Install and tighten 12 N.m (106 lb in)
  5. Protective Cap (3) - Install
  6. Electrical Connector (4) - Connect

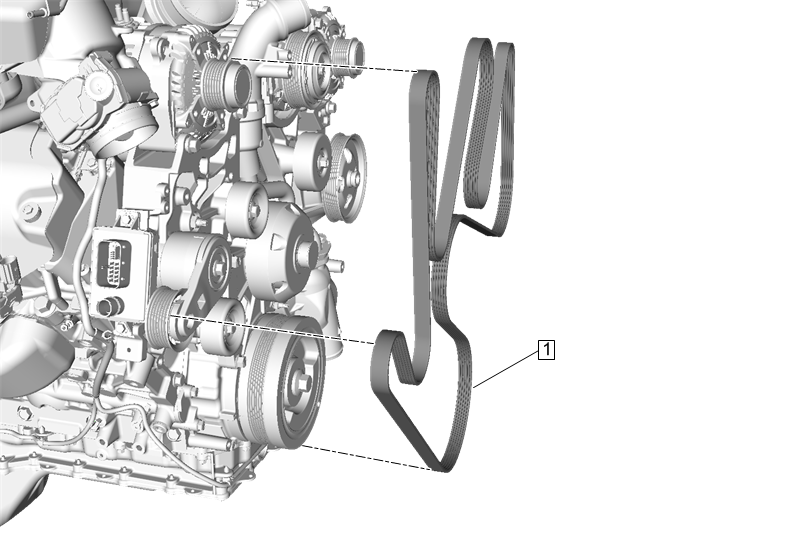

  7. GM4535167Courtesy of GENERAL MOTORS COMPANY

    Drive Belt (1) - Install - Drive Belt Replacement (Dual Generators)Drive Belt Replacement (Single Generator)

  8. Air Cleaner Outlet Front Duct - Install - Air Cleaner Outlet Front Duct Replacement
  9. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (L96 LC8) Battery Negative Cable Disconnection and Connection (L83) Battery Negative Cable Disconnection and Connection (Dual Battery) Battery Negative Cable Disconnection and Connection (L5P)
