Installation Procedure

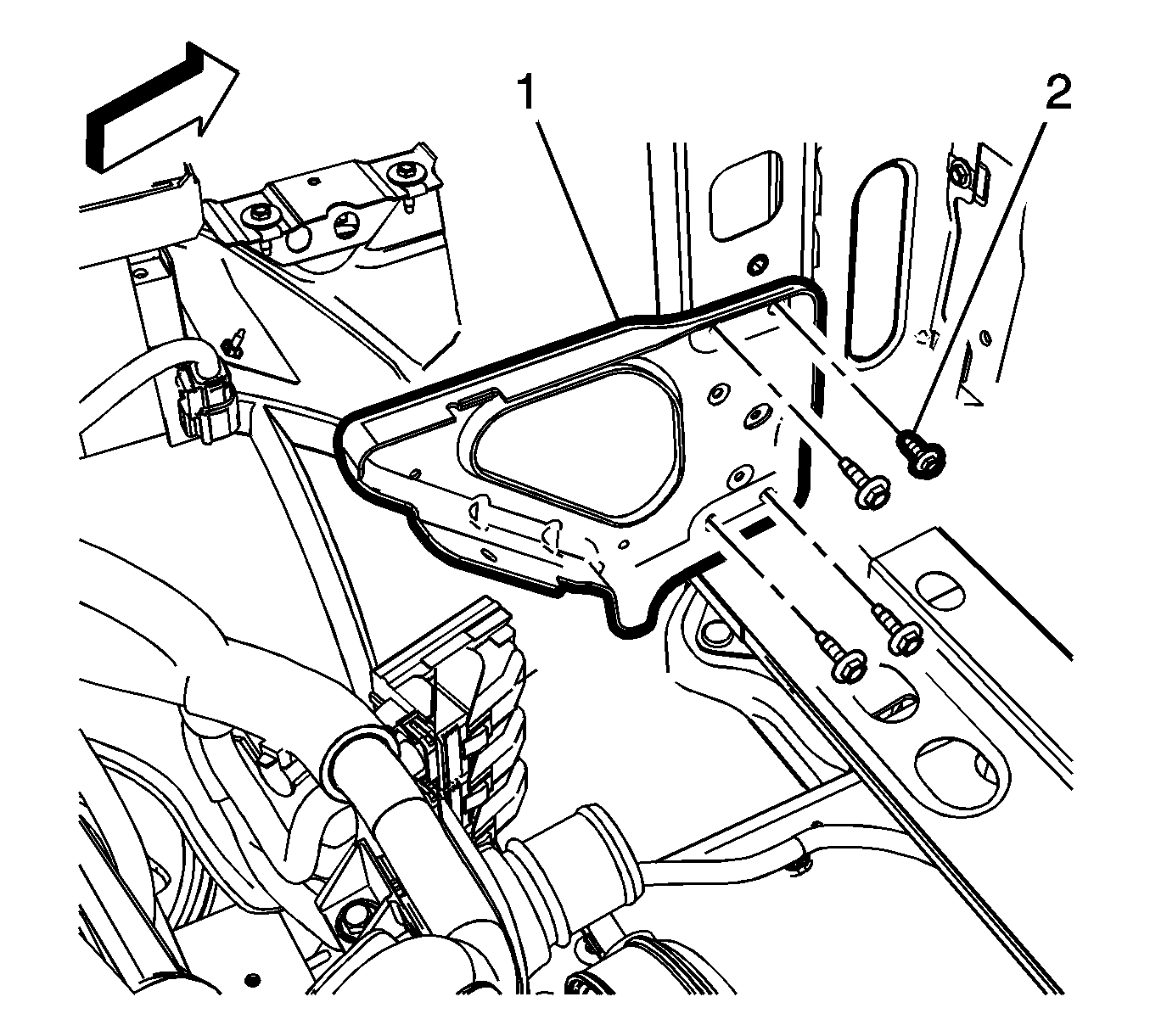

  1. GM3258895Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the battery tray support (1) into position and tighten the fasteners (2) to 9 N.m (80 lb in).

  2. GM3258898Courtesy of GENERAL MOTORS COMPANY

    Attach the forward lamp harness (1) to the battery tray support.

  3. Install the auxiliary battery tray. Refer to Auxiliary Battery Tray Replacement .
