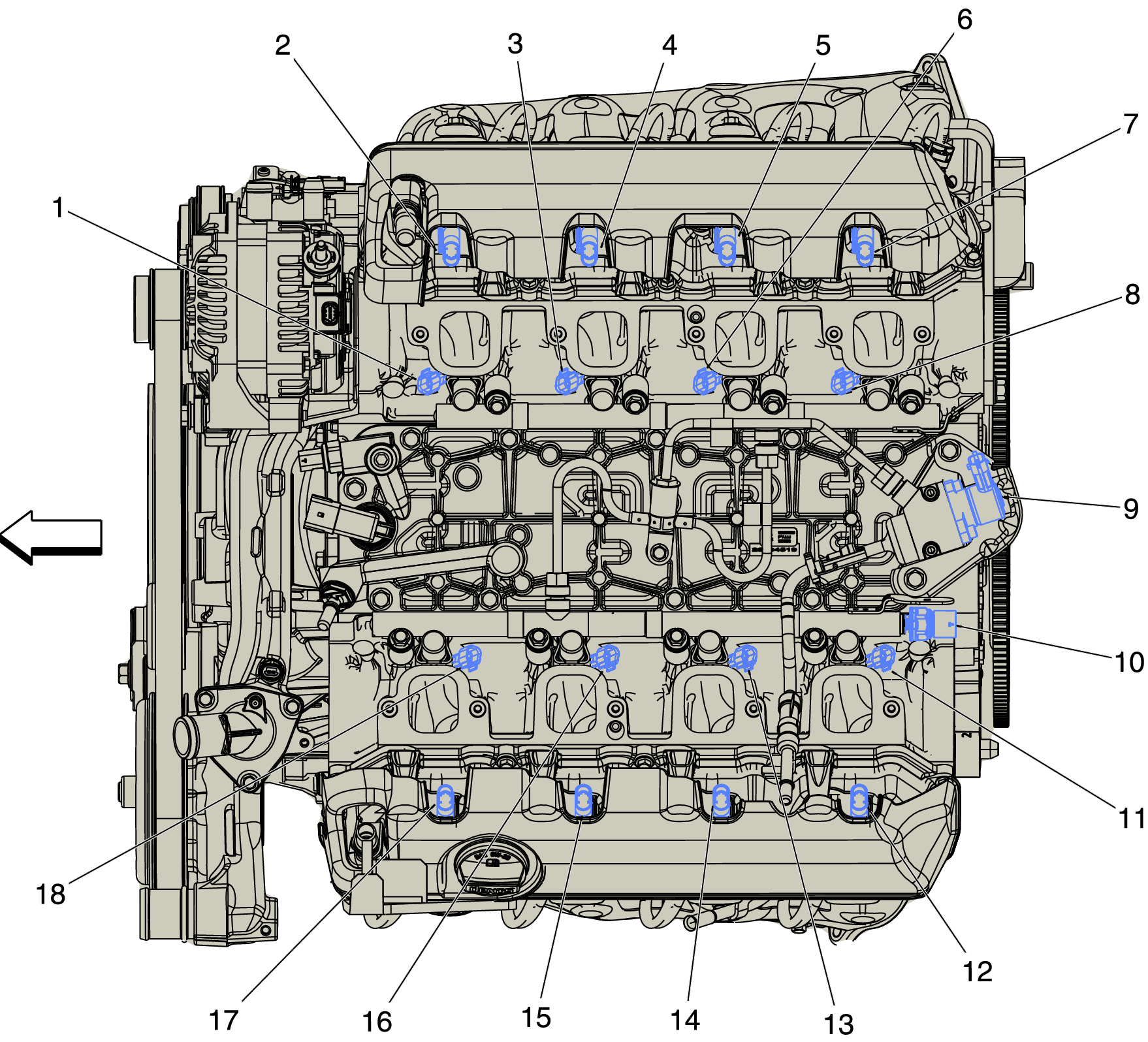

Top of Engine Components (L83)

Courtesy of GENERAL MOTORS COMPANY

Items
1.Q17B Fuel Injector 2 Q17B Fuel Injector 2 (L5P)Q17B Fuel Injector 2 (L83)Q17B Fuel Injector 2 (L96)Q17B Fuel Injector 2 (LC8)
2. T8B Ignition Coil 2 (except L5P) T8B Ignition Coil 2 (L83)T8B Ignition Coil 2 (L96/LC8)
3. Q17D Fuel Injector 4 Q17D Fuel Injector 4 (L5P)Q17D Fuel Injector 4 (L83)Q17D Fuel Injector 4 (L96)Q17D Fuel Injector 4 (LC8)
4. T8D Ignition Coil 4 (except L5P) T8D Ignition Coil 4 (L83)T8D Ignition Coil 4 (L96/LC8)
5. T8F Ignition Coil 6 (except L5P) T8F Ignition Coil 6 (L83)T8F Ignition Coil 6 (L96/LC8)
6. Q17F Fuel Injector 6 Q17F Fuel Injector 6 (L5P)Q17F Fuel Injector 6 (L83)Q17F Fuel Injector 6 (L96)Q17F Fuel Injector 6 (LC8)
7. T8H Ignition Coil 8 (L83, L96 or LC8) T8H Ignition Coil 8 (L83)T8H Ignition Coil 8 (L96/LC8)
8. Q17H Fuel Injector 8 Q17H Fuel Injector 8 (L5P)Q17H Fuel Injector 8 (L83)Q17H Fuel Injector 8 (L96)Q17H Fuel Injector 8 (LC8)
9. G18 High Pressure Fuel Pump (1500) G18 High Pressure Fuel Pump (L83)
10. B310 Fuel Pressure/Temperature Sensor B310 Fuel Pressure/Temperature Sensor (L83)
11. Q17G Fuel Injector 7 Q17G Fuel Injector 7 (L5P)Q17G Fuel Injector 7 (L83)Q17G Fuel Injector 7 (L96)Q17G Fuel Injector 7 (LC8)
12. T8G Ignition Coil 7 (L83, L96 or LC8) T8G Ignition Coil 7 (L83)T8G Ignition Coil 7 (L96/LC8)
13. Q17E Fuel Injector 5 Q17E Fuel Injector 5 (L5P)Q17E Fuel Injector 5 (L83)Q17E Fuel Injector 5 (L96)Q17E Fuel Injector 5 (LC8)
14. T8E Ignition Coil 5 (except L5P) T8E Ignition Coil 5 (L83)T8E Ignition Coil 5 (L96/LC8)
15. T8C Ignition Coil 3 (except L5P) T8C Ignition Coil 3 (L83)T8C Ignition Coil 3 (L96/LC8)
16. Q17C Fuel Injector 3 Q17C Fuel Injector 3 (L5P)Q17C Fuel Injector 3 (L83)Q17C Fuel Injector 3 (L96)Q17C Fuel Injector 3 (LC8)
17. T8A Ignition Coil 1 (except L5P) T8A Ignition Coil 1 (L83)T8A Ignition Coil 1 (L96/LC8)
18. Q17A Fuel Injector 1 Q17A Fuel Injector 1 (L5P)Q17A Fuel Injector 1 (L83)Q17A Fuel Injector 1 (L96)Q17A Fuel Injector 1 (LC8)
