Outside Rearview Mirror Replacement (DPN)

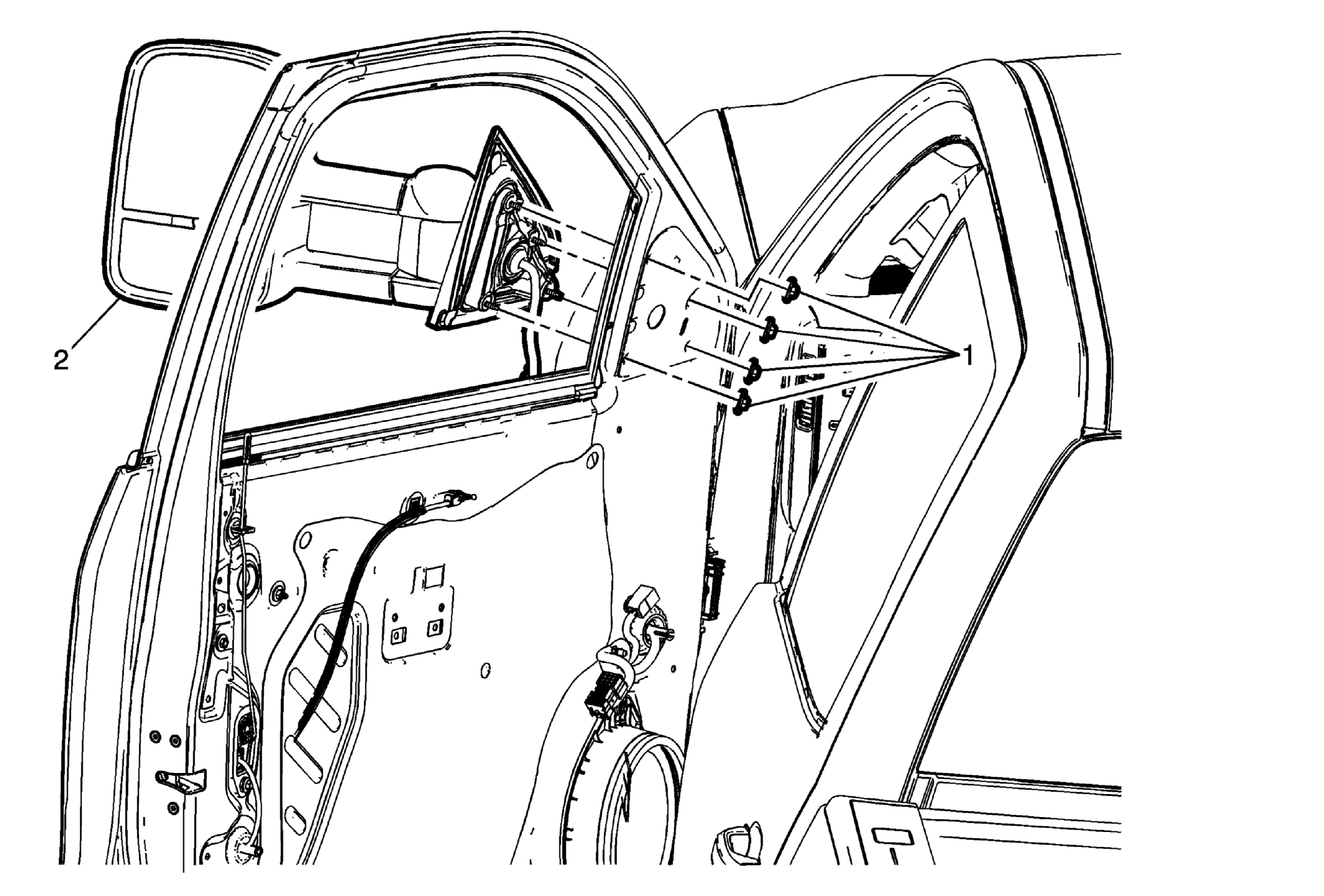

Callout	Component Name
Preliminary Procedures  Remove the front side door window garnish trim. Refer to Front Side Door Window Garnish Molding Replacement (Crew Cab, Extended Cab)Front Side Door Window Garnish Molding Replacement (Regular Cab) .
1	Outside Rearview Mirror Nuts (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure  Disconnect the electrical connector. Tighten  9 N.m (80 lb in)
2	Outside Rearview Mirror NOTE: Ensure all electrical connectors are properly connected. Inspect the outside mirror for proper operation before installing the door trim.
