Installation Procedure

Transfer the rear side door inside handle cable. Refer to Rear Side Door Inside Handle Cable Replacement .
Transfer the rear side door outside handle cable. Refer to Rear Side Door Outside Handle Cable Replacement .
Place the window in the full up position.
Courtesy of GENERAL MOTORS COMPANY

Install the outside handle bracket (1) and the rear side door latch (2) assembly in the vehicle.
Fig 1: Door Handle Bolts Replacement Components With Torque Specifications Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

NOTE:
Install and torque the four latch bolts in proper sequence to prevent damage to the latch mechanism.

Install four bolts (1) to the rear side door latch and tighten to 11 N.m (97 lb in).
Courtesy of GENERAL MOTORS COMPANY

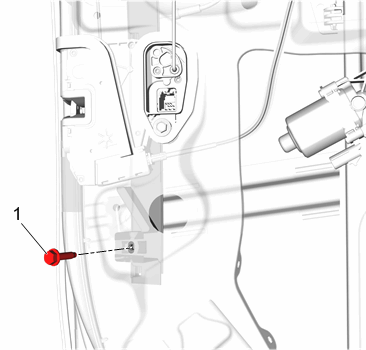

Install the lower rear side door window weatherstrip bolt (1) to the rear side door window weatherstrip. Refer to Rear Side Door Window Weatherstrip Replacement (Crew Cab)Rear Side Door Window Weatherstrip Replacement (Extended Cab) .
Install the rear side door outside handle bracket screw. Refer to Rear Side Door Outside Handle Bracket Replacement .
Install the rear side door outside handle. Refer to Rear Side Door Outside Handle Replacement .
Connect the rear side door latch electrical connector.
Install the rear side door locking rod. Refer to Rear Side Door Locking Rod Knob Replacement .
Inspect the door latch and the outside handle for proper operation before install the door trim.
Install the water deflector.
Install the rear side door armrest plate bolts and plate to the inner door panel.
Install the rear side door trim. Refer to Rear Side Door Trim Panel Replacement (Crew Cab, Extended Cab) .
