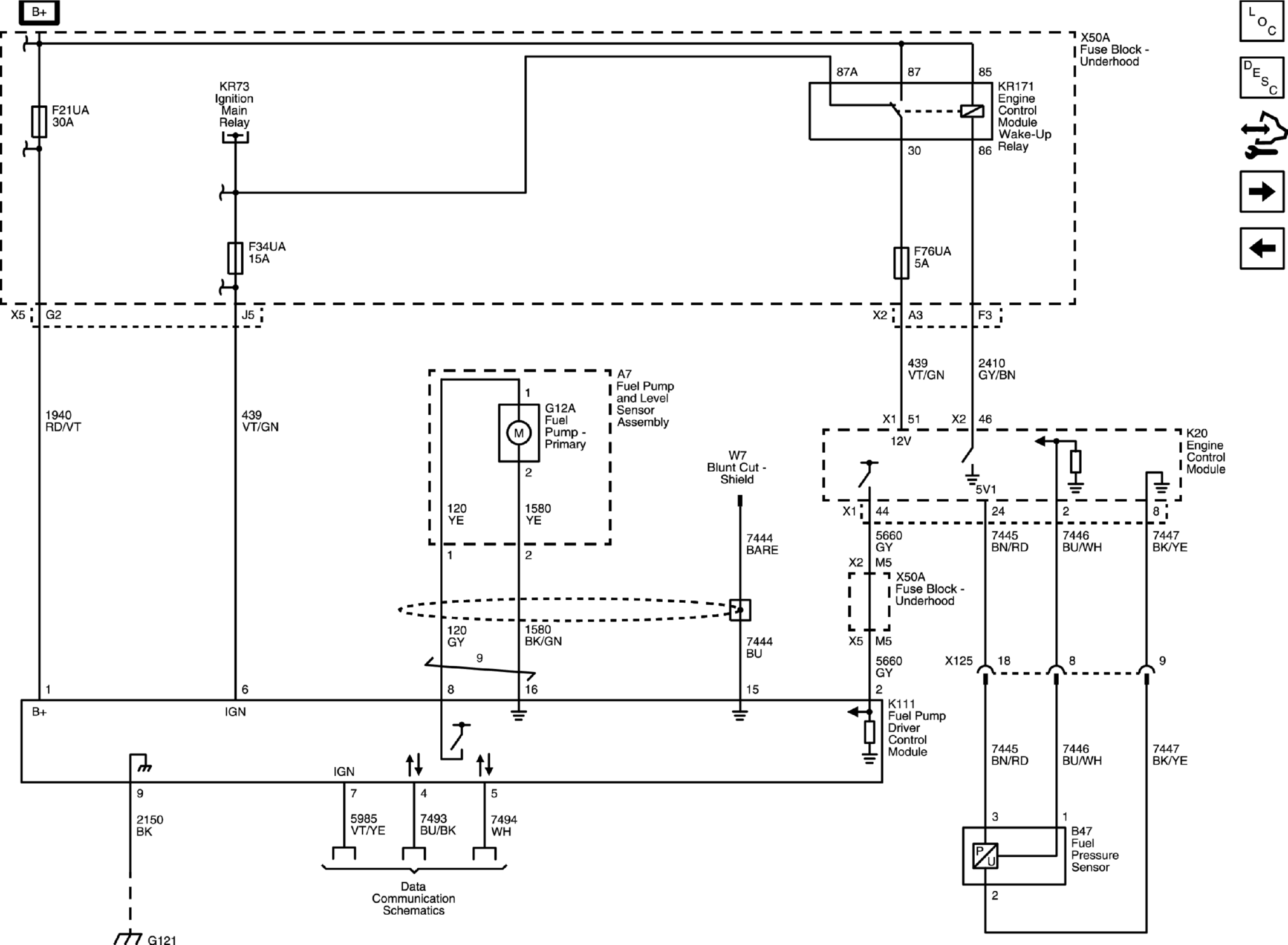

Home >> GMC >> 2019 >> Sierra 1500 Limited Base, RWD, Gas >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 5.3L (L83) - Engine Controls Schematics >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Fuel Controls - Fuel Pump Control
