Fuel Pump Power Control Module Replacement

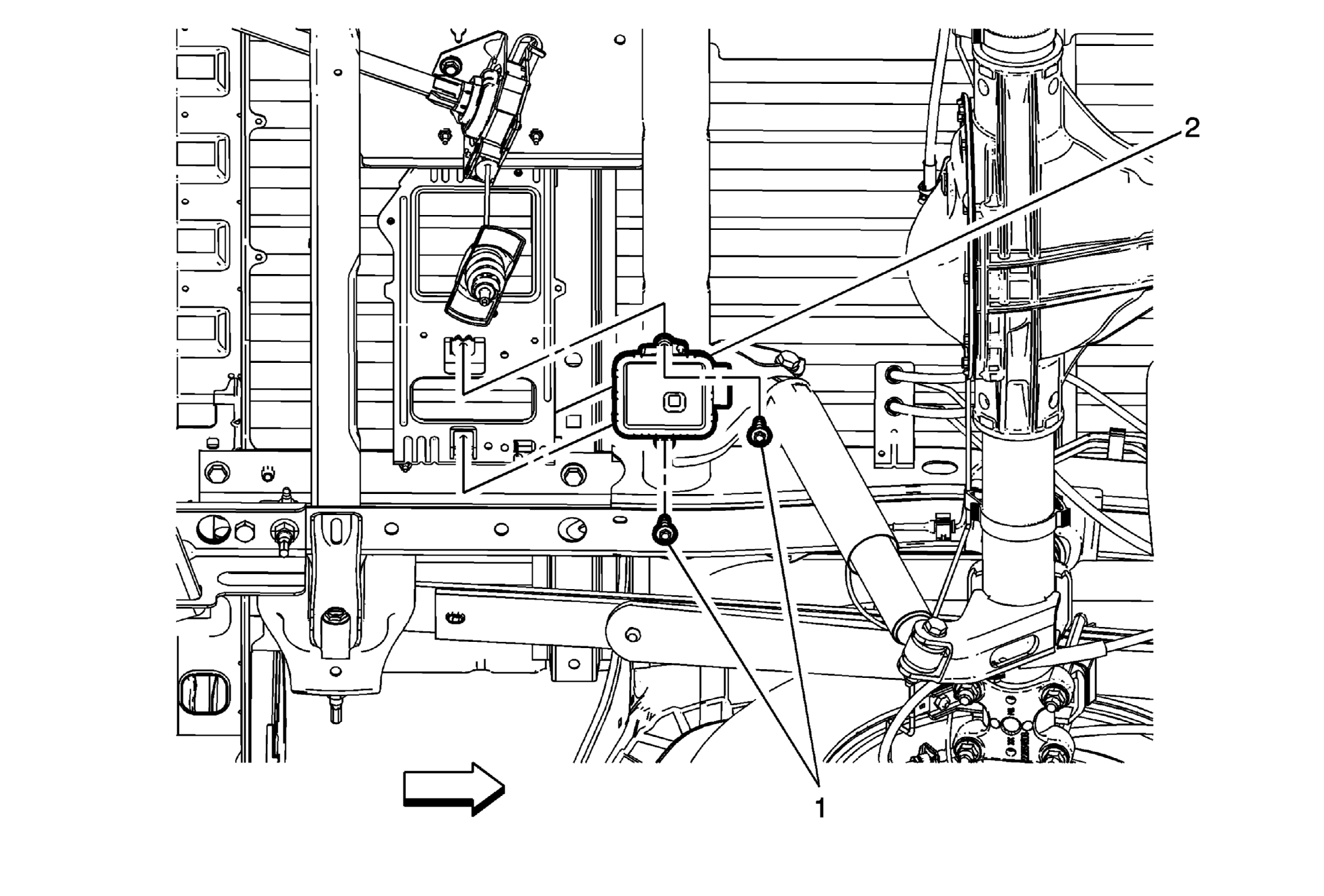

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the spare tire. Spare Wheel Hoist Replacement . |
|
| 1 | Fuel Pump Power Control Module Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Fuel Pump Power Control Module Procedure Disconnect the electrical connector.
NOTE:
The fuel pump power control module is located on top of the fuel pump power control module bracket. |
