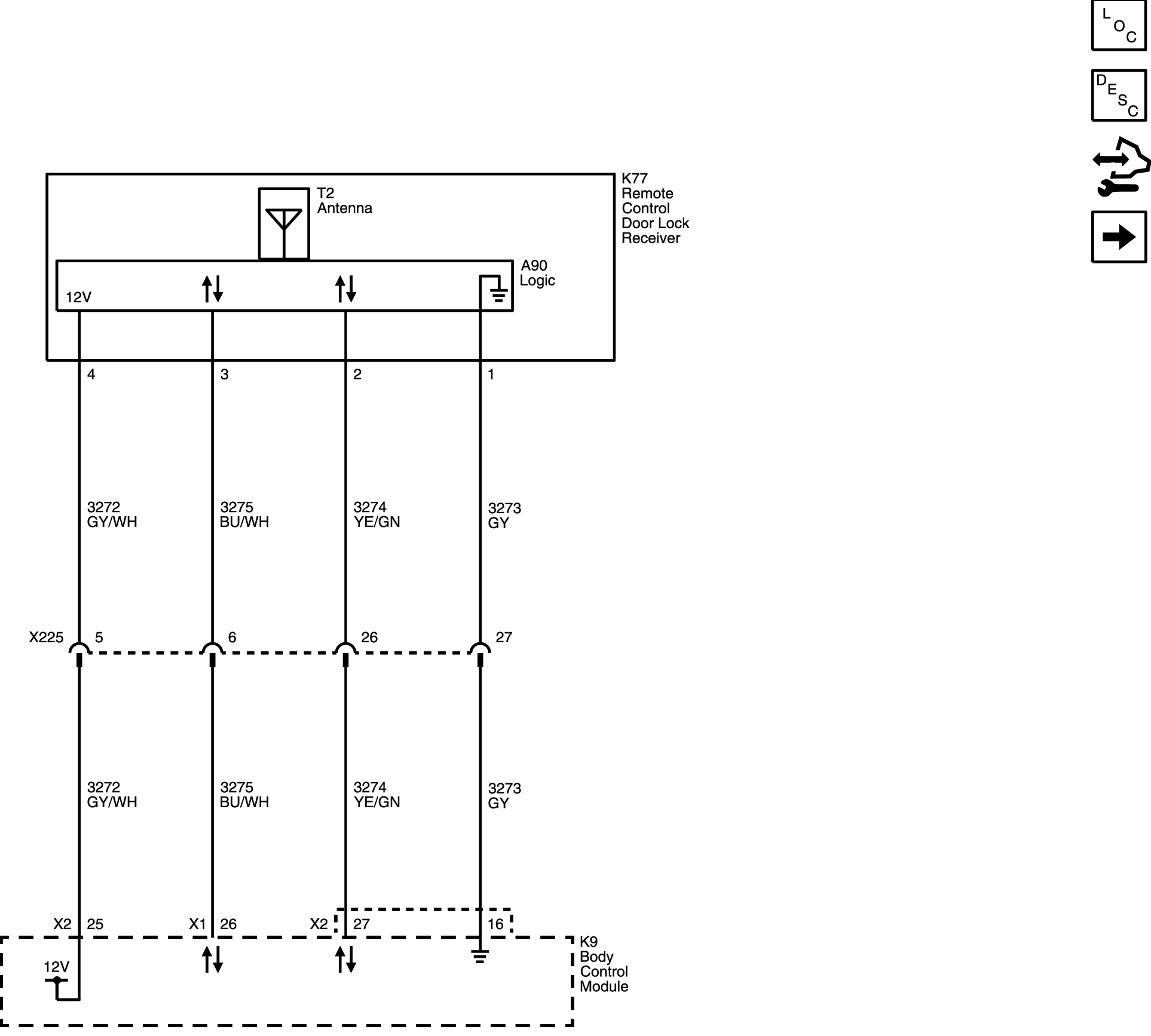

Home >> GMC >> 2019 >> Sierra 1500 Limited Base, RWD, Gas >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Functions >> Schematic and Routing Diagrams >> Remote Function Wiring Diagram Schematics >> Keyless Entry
