Endgate Lock Actuator Replacement

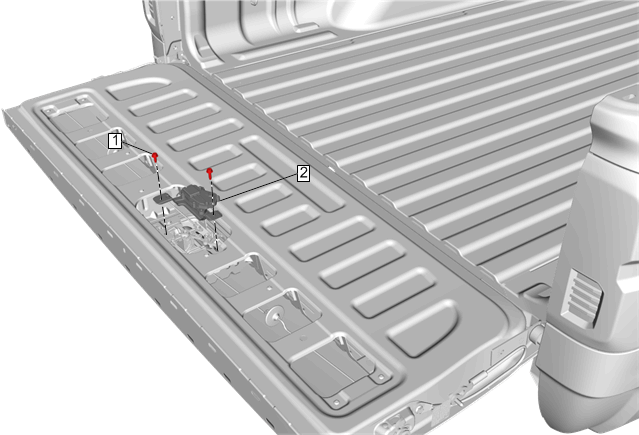

| Callout | Component Name |
|---|---|
| Preliminary Procedure Pickup Box Endgate Access Hole Cover Panel Replacement |
|
| 1 | Endgate Lock Actuator Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Endgate Lock Actuator Procedure Disconnect the electrical connector. |
