Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

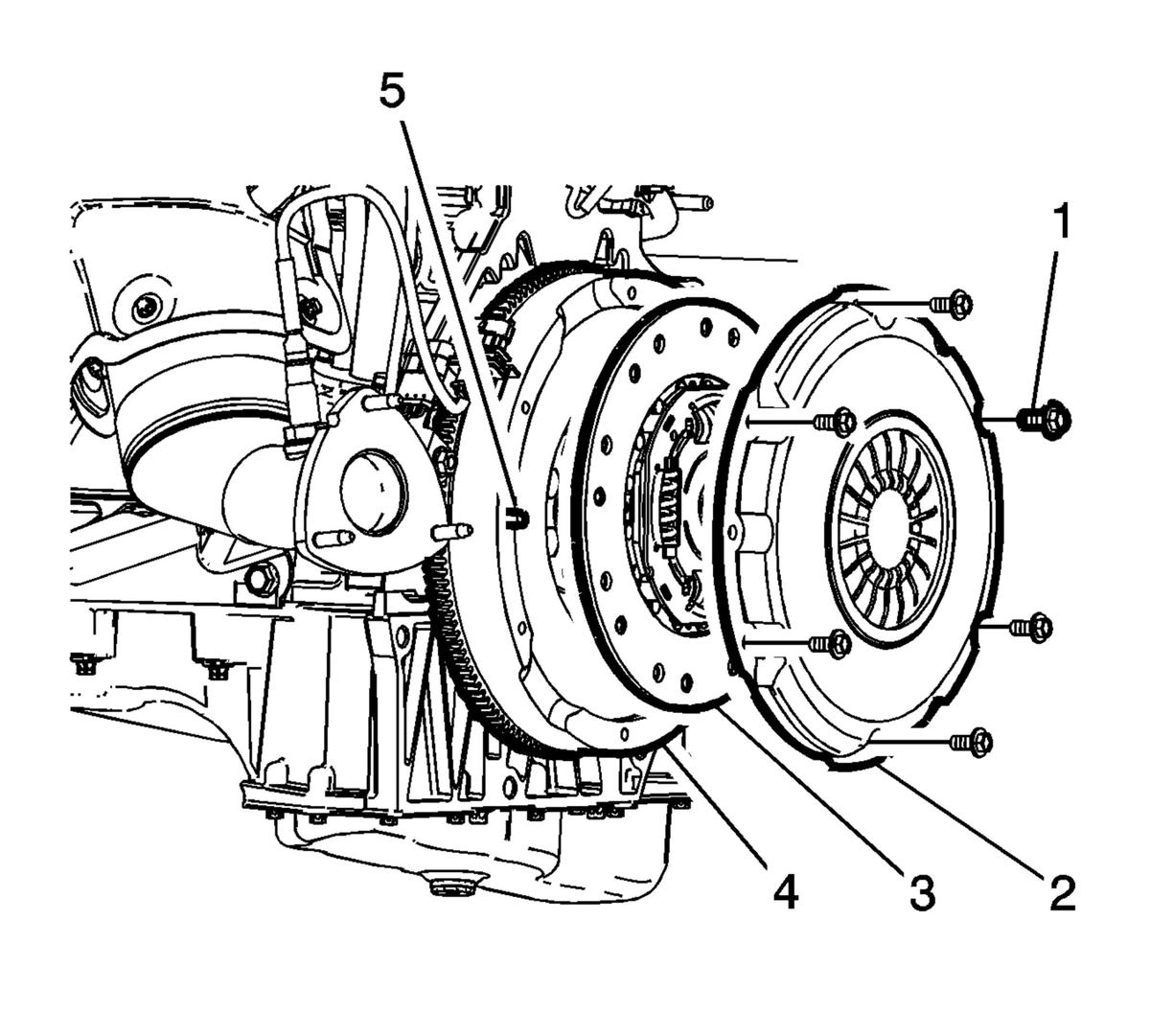

Install the clutch pressure plate (2) and driven plate (3) to the dowel pins (4) on the flywheel (5).
Install the clutch pressure plate bolts (1) finger tight.
Using J-5824-A tool, align the clutch driven plate (3) to the clutch pilot bearing.
Fig 1: Clutch Pressure Plate Bolts Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Tighten the NEW clutch pressure plate bolts in the sequence shown to 40 N.m (30 lb ft).
Install the transmission. Refer to Transmission Replacement .
Perform the excessive clutch slip data reset.
