Left Front of the Engine Components (LWN)

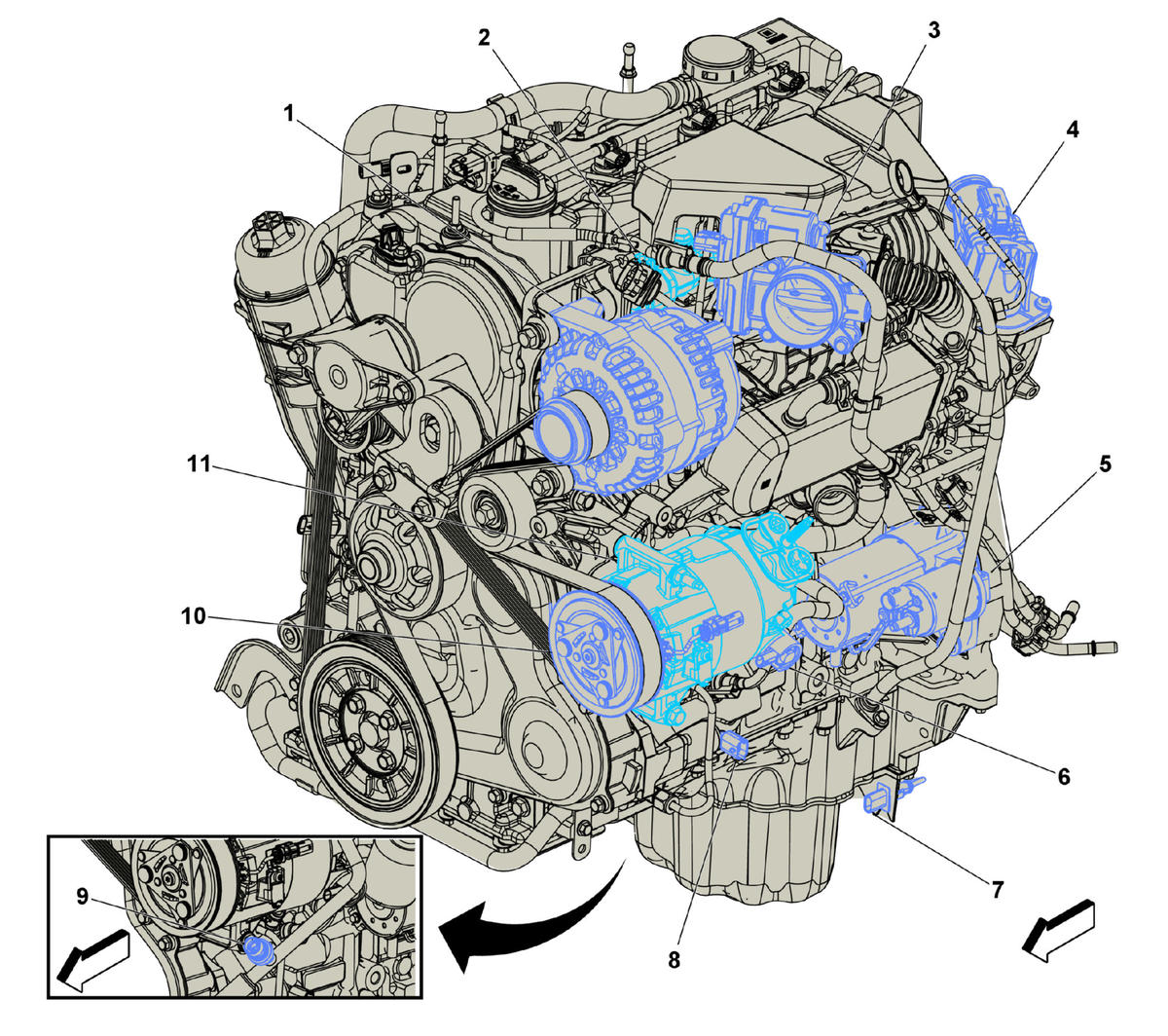

GM5035013Courtesy of GENERAL MOTORS COMPANY
Items
(1) G13 Generator G13 Generator X1 (LCV)G13 Generator X1 (LGZ)G13 Generator X1 (LWN)G13 Generator X2G13 Generator X2 (LCV)G13 Generator X2 (LGZ)G13 Generator X2
(2) Q18B Fuel Pressure Regulator 2 (LWN) Q18B Fuel Pressure Regulator 2
(3) Q20 Intake Air Flow Valve (LWN) Q20 Intake Air Flow Valve
(4) Q14 Exhaust Gas Recirculation Valve (LWN) Q14 Exhaust Gas Recirculation Valve
(5) M64 Starter Motor M64 Starter Motor X1M64 Starter Motor X2 (LCV)M64 Starter Motor X2 (LGZ)M64 Starter Motor X2 (LWN)
(6) Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve
(7) B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LCV/LWN)B26 Crankshaft Position Sensor (LGZ)
(8) Q18A Fuel Pressure Regulator 1 (LWN) Q18A Fuel Pressure Regulator 1
(9) B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
(10) Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch
(11) G1 A/C Compressor
