Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

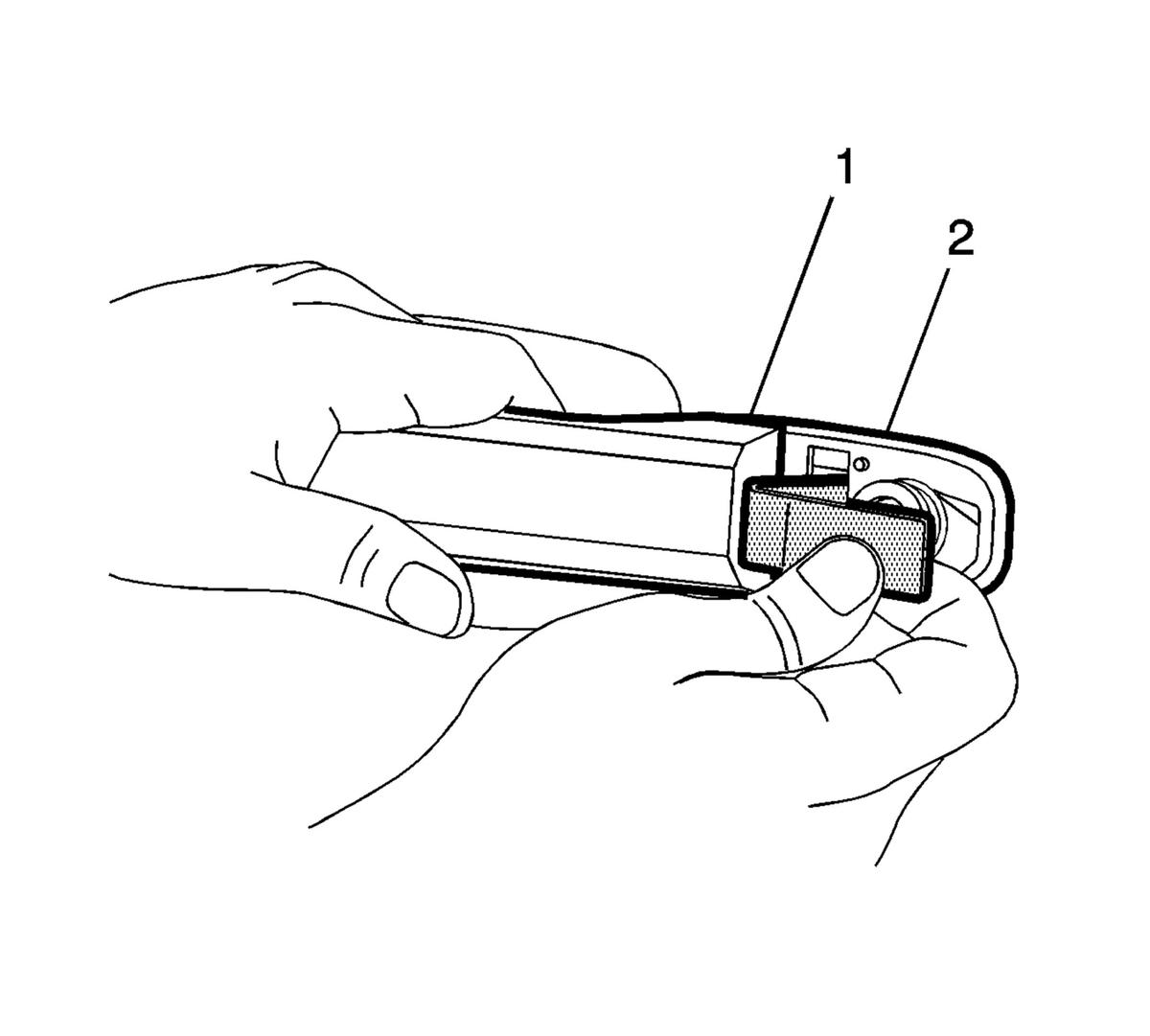

While holding BO-51363 Door Handle Spring Retainer in place, install front side door outside handle (1) into door (2) at approximately a 90 degree angle to door.
Courtesy of GENERAL MOTORS COMPANY

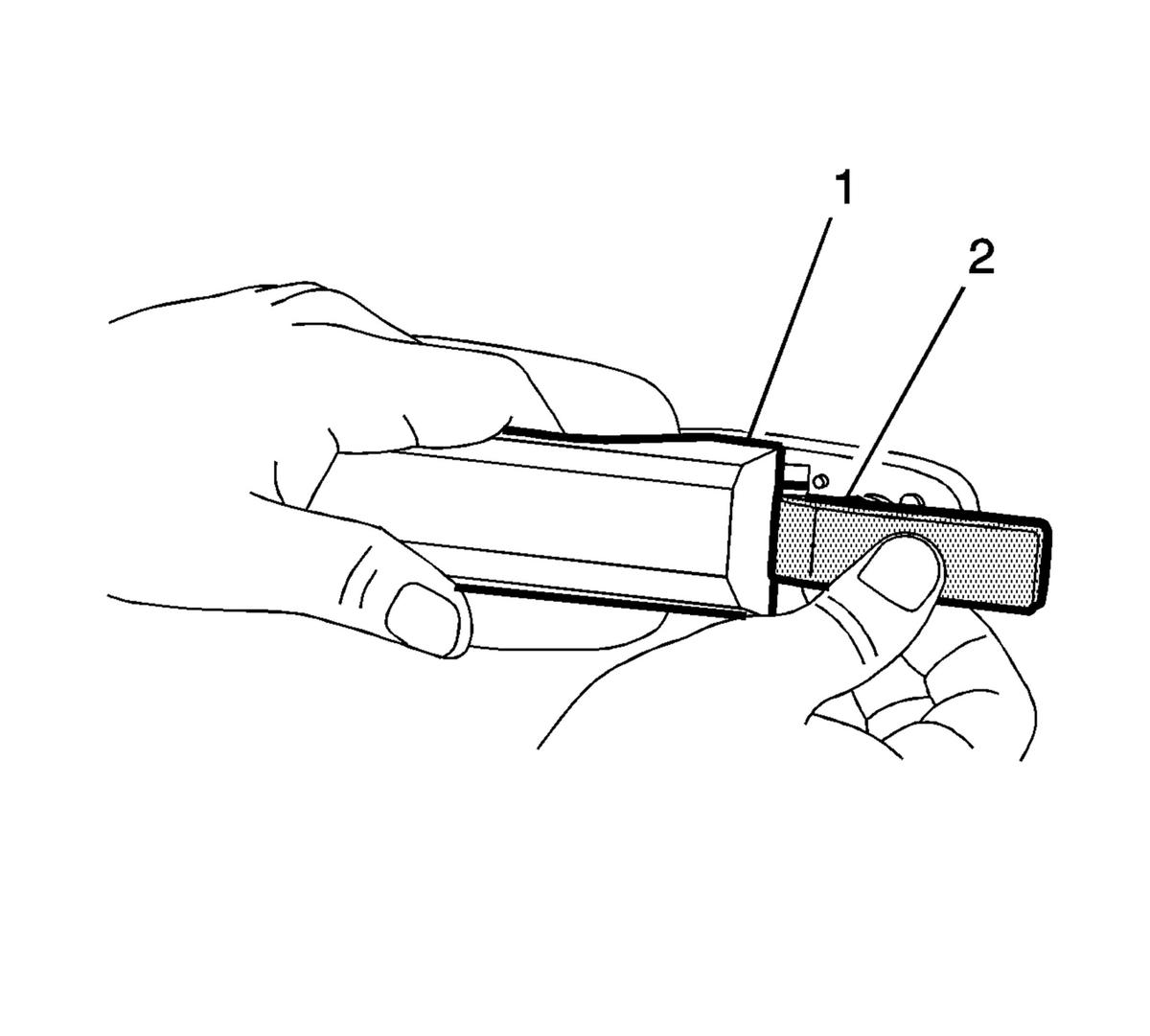

Rotate front side door outside handle (1) rearward into front side door handle mechanism (2).
Courtesy of GENERAL MOTORS COMPANY

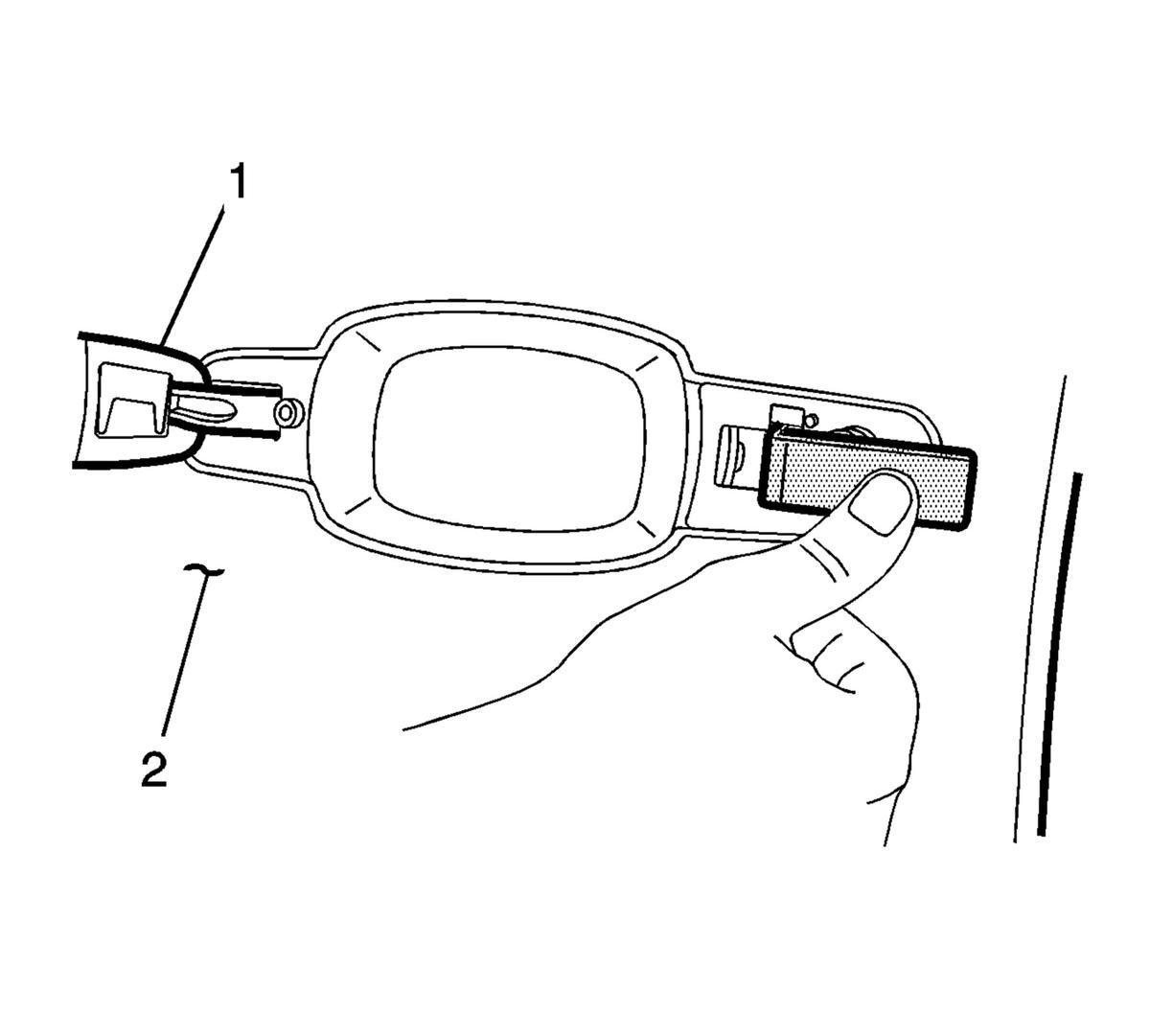

Slide front side door outside handle (1) forward to lock into position.
Courtesy of GENERAL MOTORS COMPANY

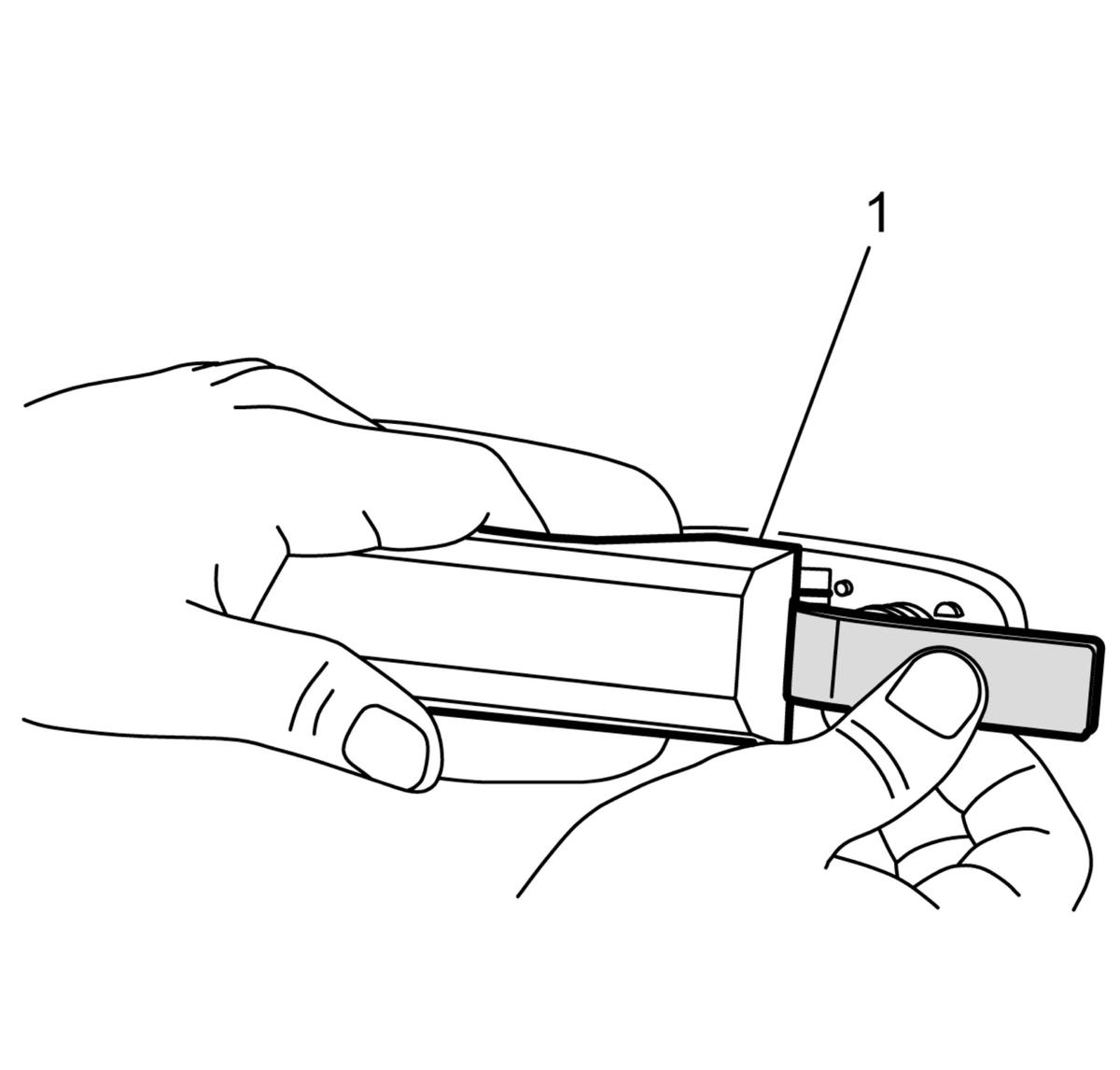

Release pressure on BO-51363 Door Handle Spring Retainer. Pull front side door outside handle (1) outward and remove BO-51363 Door Handle Spring Retainer from door (2).

NOTE:

When installing the door lock cylinder screw Do Not go past the hard stop.

Tighten screw for lock cylinder bezel. Front Side Door Lock Cylinder Bezel Replacement
Ensure that the door lock system operates properly.
