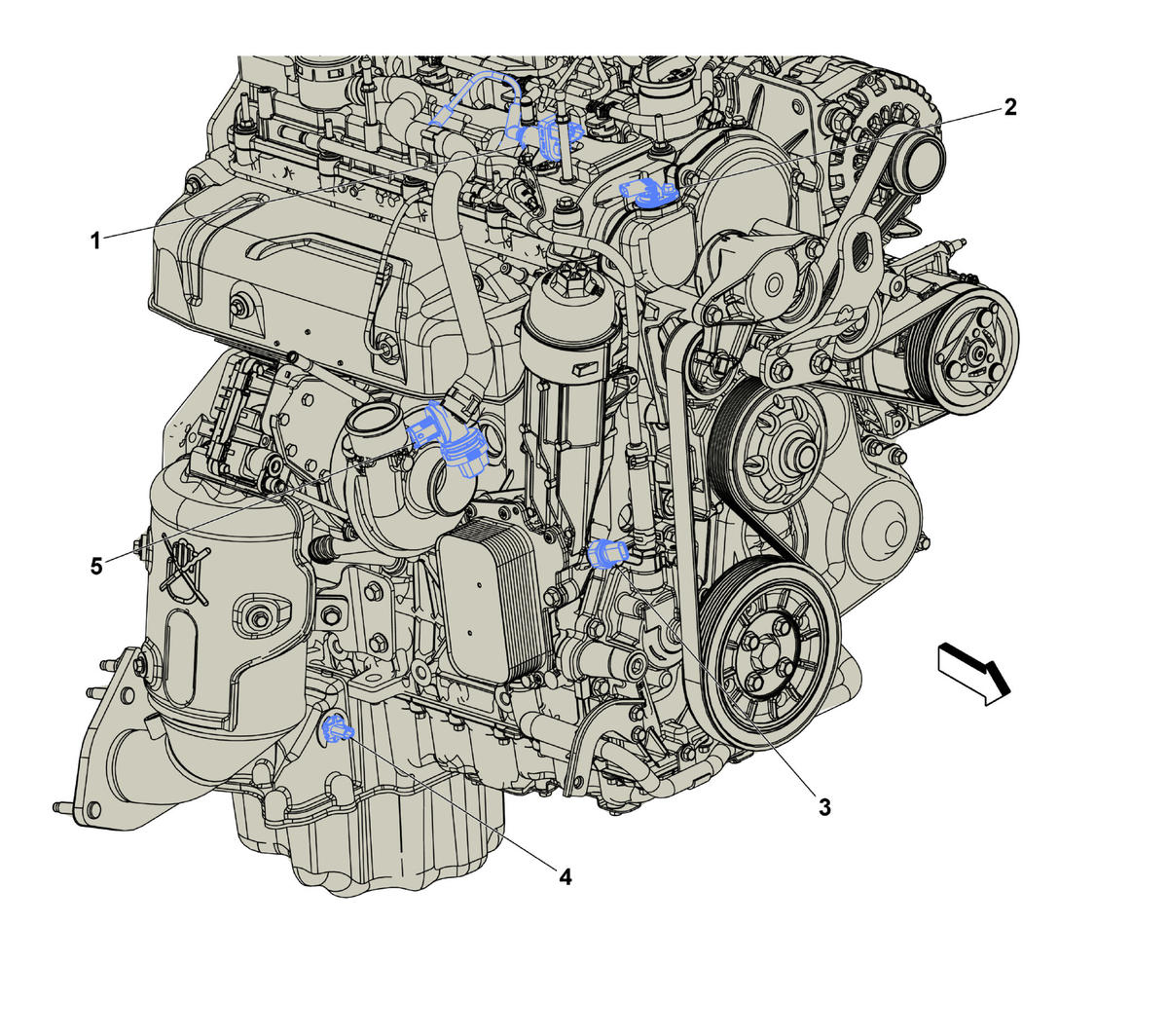

Right Bottom of Engine Components (LWN)

GM4122347Courtesy of GENERAL MOTORS COMPANY
Items
(1) Q47 Exhaust Gas Recirculation Cooler Bypass Solenoid Valve (LWN) Q47 Exhaust Gas Recirculation Cooler Bypass Solenoid Valve
(2) B23 Camshaft Position Sensor (LWN) B23 Camshaft Position Sensor
(3) B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LCV)B37B Engine Oil Pressure Sensor (LGZ/LWN)
(4) B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LCV)B35 Engine Oil Level Switch (LGZ)B35 Engine Oil Level Switch (LWN)
(5) E45 Positive Crankcase Ventilation Heater (LWN) E45 Positive Crankcase Ventilation Heater
