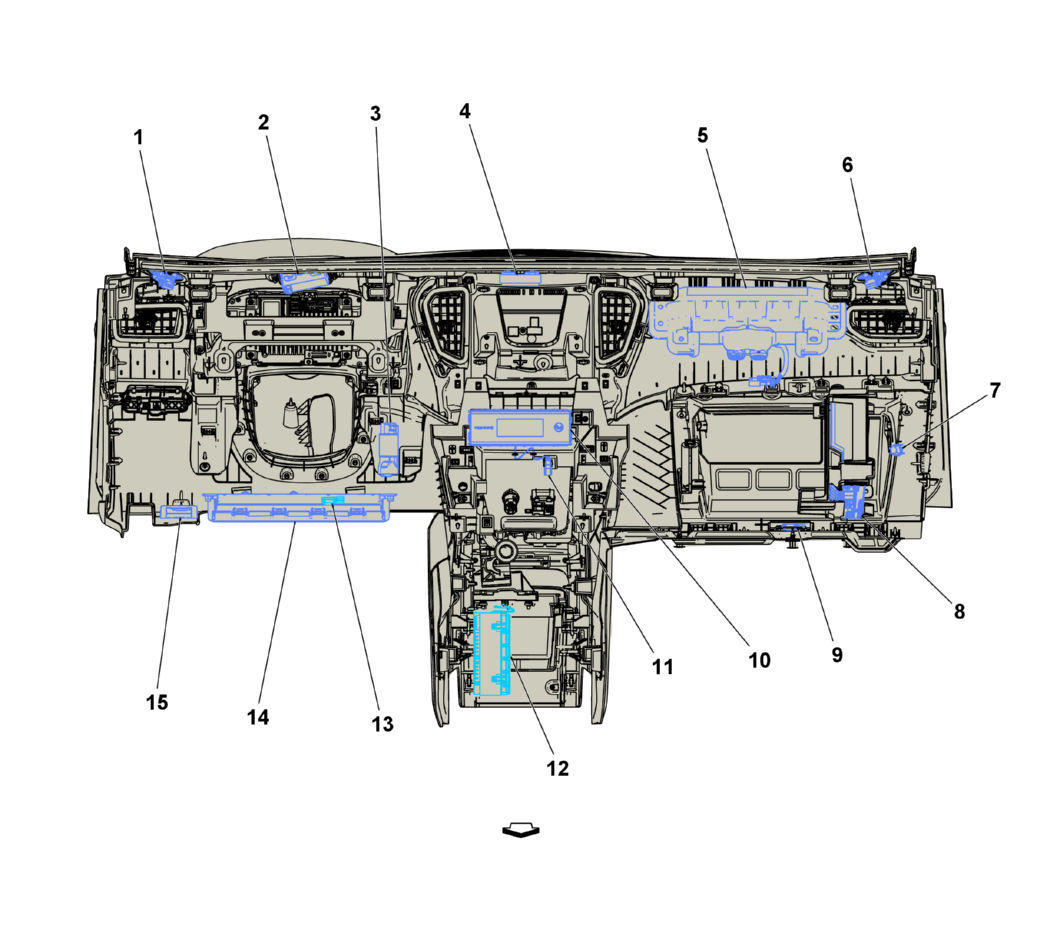

Behind the Instrument Panel Components (Holden)

Courtesy of GENERAL MOTORS COMPANY

Items
1. P19W Speaker - Right Instrument Panel P19W Speaker - Right Instrument Panel (UQA+Holden) , or P19W Speaker - Right Instrument Panel (UQF+Holden)
2. P43 Collision Alert Indicators (UEU) P43 Collision Alert Indicators (UEU)
3. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 (Holden) , or K56 Serial Data Gateway Module X2 (Holden)
4. P19B Speaker - Center Instrument Panel (UQA) P19B Speaker - Center Instrument Panel (UQA)
5. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 , or F101 Passenger Instrument Panel Air Bag X2
6. P19J Speaker - Left Instrument Panel P19J Speaker - Left Instrument Panel (UQA+Holden) , or P19J Speaker - Left Instrument Panel (UQF+Holden)
7. R6F Terminating Resistor - High Speed Extension Bus 2 R6F Terminating Resistor - High Speed Extension Bus 2
8. A11 Radio A11 Radio X1 (IO5/IO6) , or A11 Radio X1 (IOB) , or A11 Radio X1 (IOU) , or A11 Radio X2 (IO5/IO6) , or A11 Radio X2 (IOB) , or A11 Radio X2 (IOU) , or A11 Radio X3 (IO5/IOB) , or A11 Radio X3 (IOB) , or A11 Radio X3 (IOU) , or A11 Radio X4 (USR) , or A11 Radio X5 (UVB/UV2) , or A11 Radio X6 (IOU) , or A11 Radio X7 (IOB)
9. E8VA Floor Courtesy Lamp - Left Front E8VA Floor Courtesy Lamp - Left Front
10. K33 HVAC Control Module K33 HVAC Control Module X1 , or K33 HVAC Control Module X2 , or K33 HVAC Control Module X3 , or K33 HVAC Control Module X4
11. E1Z Accent Lamp - Middle Instrument Panel E1Z Accent Lamp - Middle Instrument Panel (TSP/TSQ)
12. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel (Holden)
13. E8VC Floor Courtesy Lamp - Right Front E8VC Floor Courtesy Lamp - Right Front
14. F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver
15. X84 Data Link Connector X84 Data Link Connector
