Instrument Panel Extension Replacement

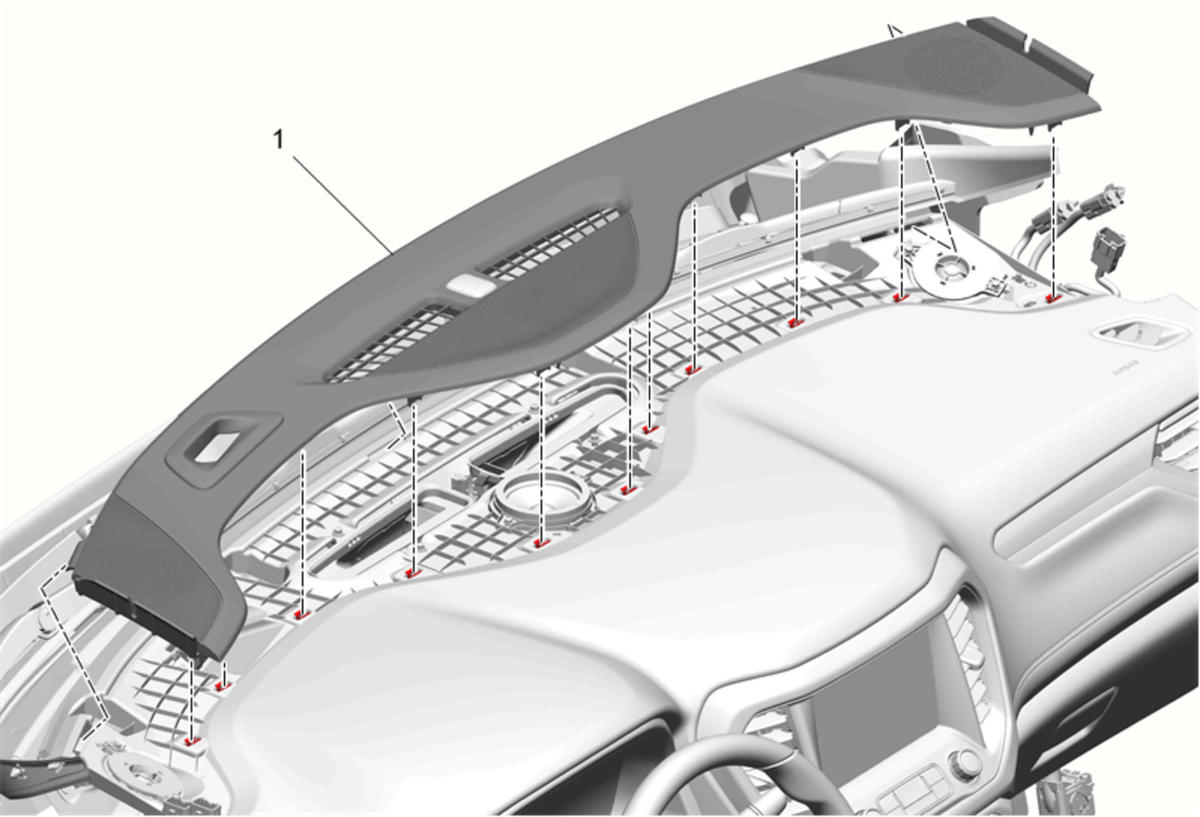

GM4381644Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Windshield Garnish Molding Replacement
1 Instrument Panel Extension

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
