Rear Closure Hands Free Sensor Shield Replacement

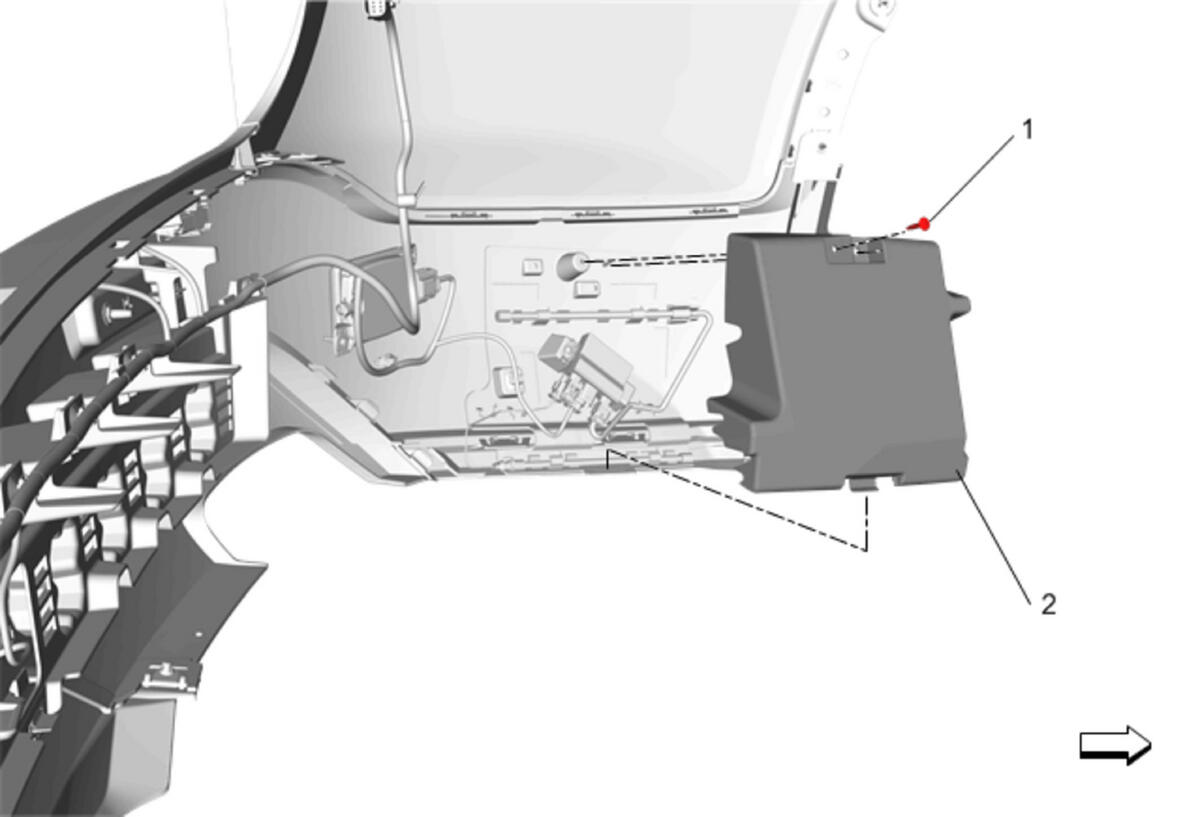

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Bumper Fascia Replacement |
|
| 1 | Rear Closure Hands Free Sensor Shield Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Rear Closure Hands Free Sensor Shield Procedure Release the retainer tab at the bottom of the shield and pull up and away form the rear bumper fascia. |
