Liftgate Power Assist Actuator Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Liftgate Lower Trim Finish Panel Replacement

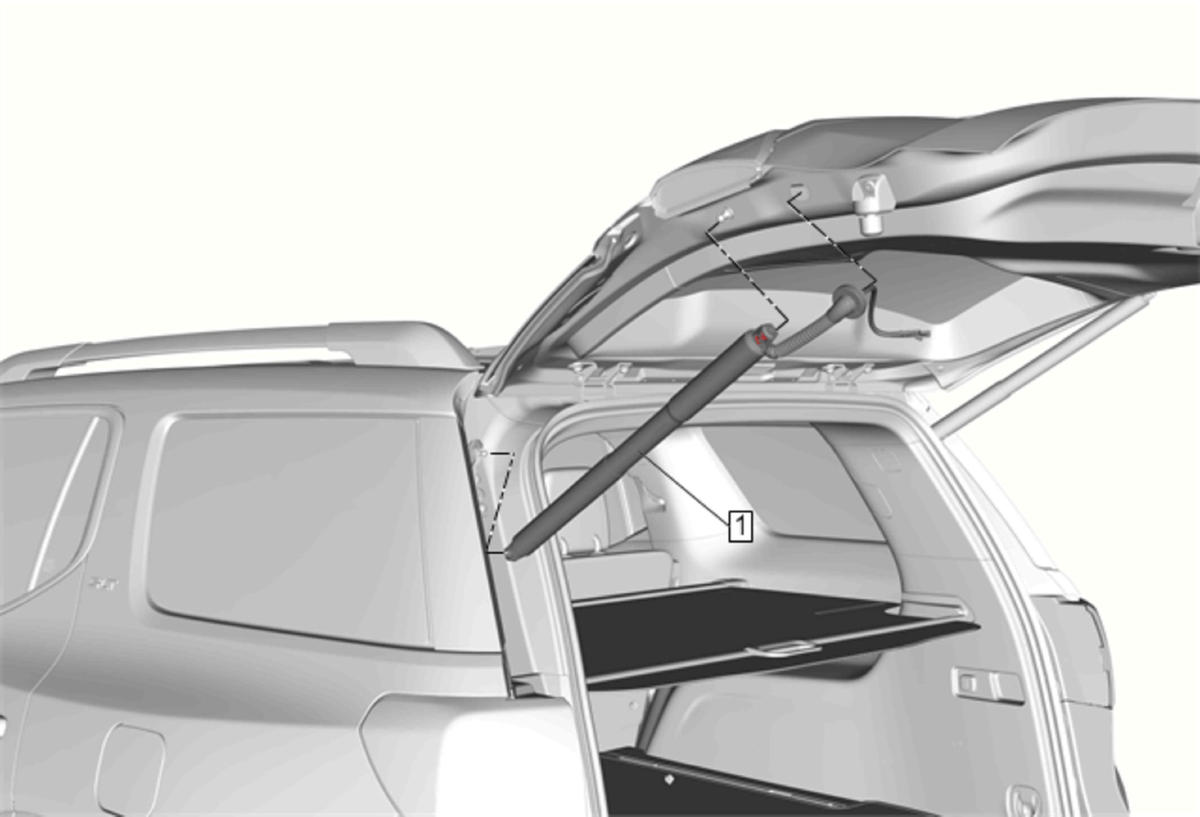

1	Rear Compartment Lid Power Assist Actuator WARNING: When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Procedure Disconnect the electrical connector. Release the strut retainers/clips. Ensure the retainer/clip is fully seated when rod is reinstalled. If clip cannot be fully seated, a new rod should be installed. Perform the necessary programming and setup procedure: Liftgate Calibration

Callout

Component Name

Preliminary Procedure
Liftgate Lower Trim Finish Panel Replacement

Rear Compartment Lid Power Assist Actuator

WARNING:

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Procedure

Disconnect the electrical connector.
Release the strut retainers/clips.
Ensure the retainer/clip is fully seated when rod is reinstalled. If clip cannot be fully seated, a new rod should be installed.
Perform the necessary programming and setup procedure: Liftgate Calibration
