Liftgate Latch Striker Replacement

Courtesy of GENERAL MOTORS COMPANY

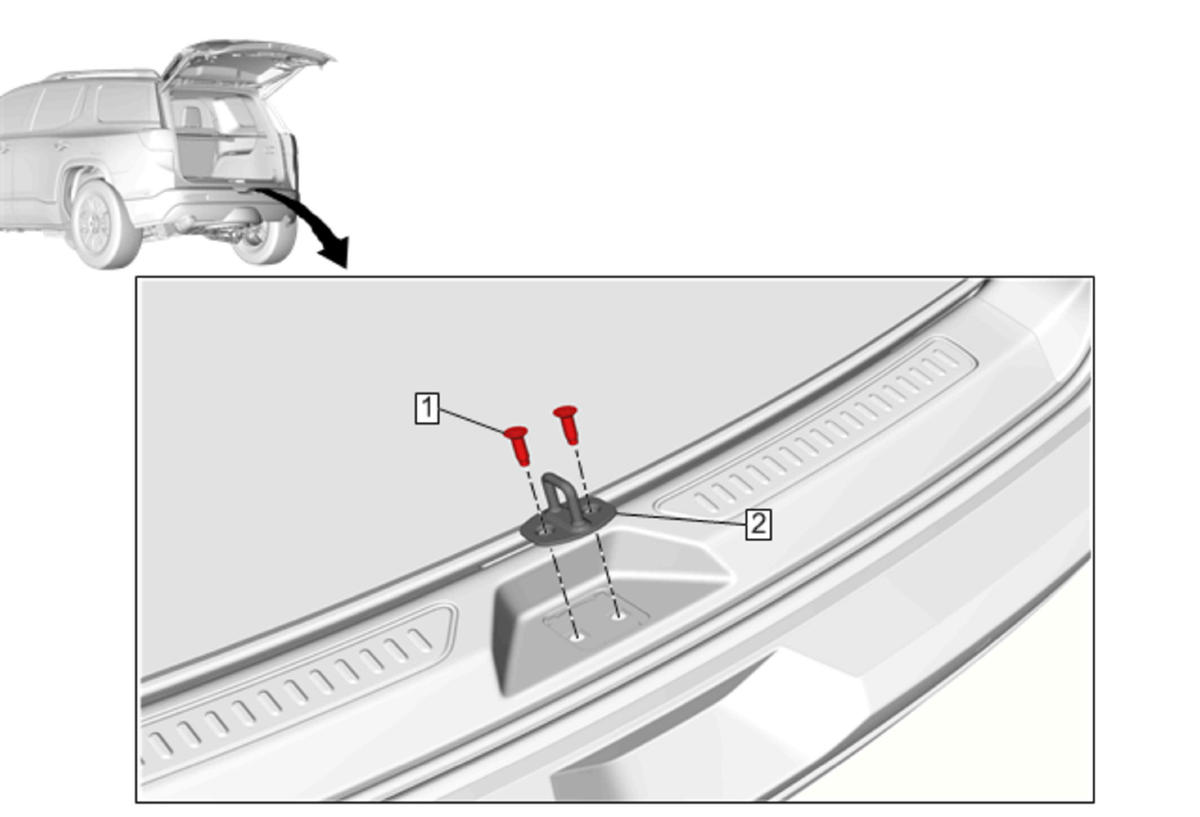

Callout	Component Name
Preliminary Procedure Liftgate Lock Striker Cover Replacement
1	Liftgate Latch Striker Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Liftgate Latch Striker Procedure Mark the location of the striker with a grease pencil to ensure proper alignment during installation. Adjust Liftgate, if needed. Liftgate Adjustment

Callout

Component Name

Liftgate Latch Striker Bolt [2x]

CAUTION:

Tighten
22 N.m (16 lb ft)

Liftgate Latch Striker

Procedure

Mark the location of the striker with a grease pencil to ensure proper alignment during installation.
Adjust Liftgate, if needed. Liftgate Adjustment
