Steering Wheel Heat Control Module Replacement (Equinox)

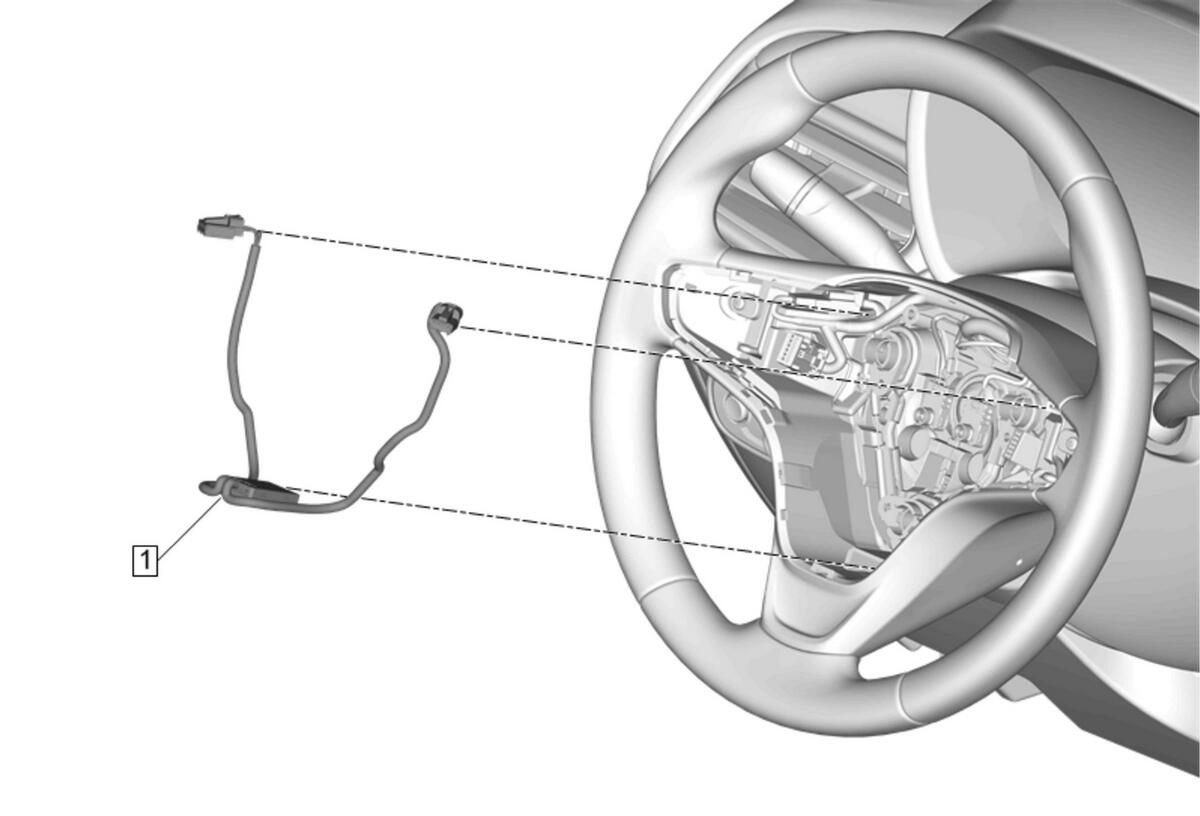

Fig 1: Steering Wheel Heat Control Module (Equinox)
GM4581621Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Steering Wheel Spoke Cover. Refer to Steering Wheel Spoke Cover Replacement (Equinox)
1 Steering Wheel Heat Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Remove the steering wheel heat control module wiring harness from the steering wheel.
  3. Remove the steering wheel heat control module from the steering wheel.
