Top And Rear Of The Center Console (Chevrolet)
Top And Rear Of The Center Console (Chevrolet)

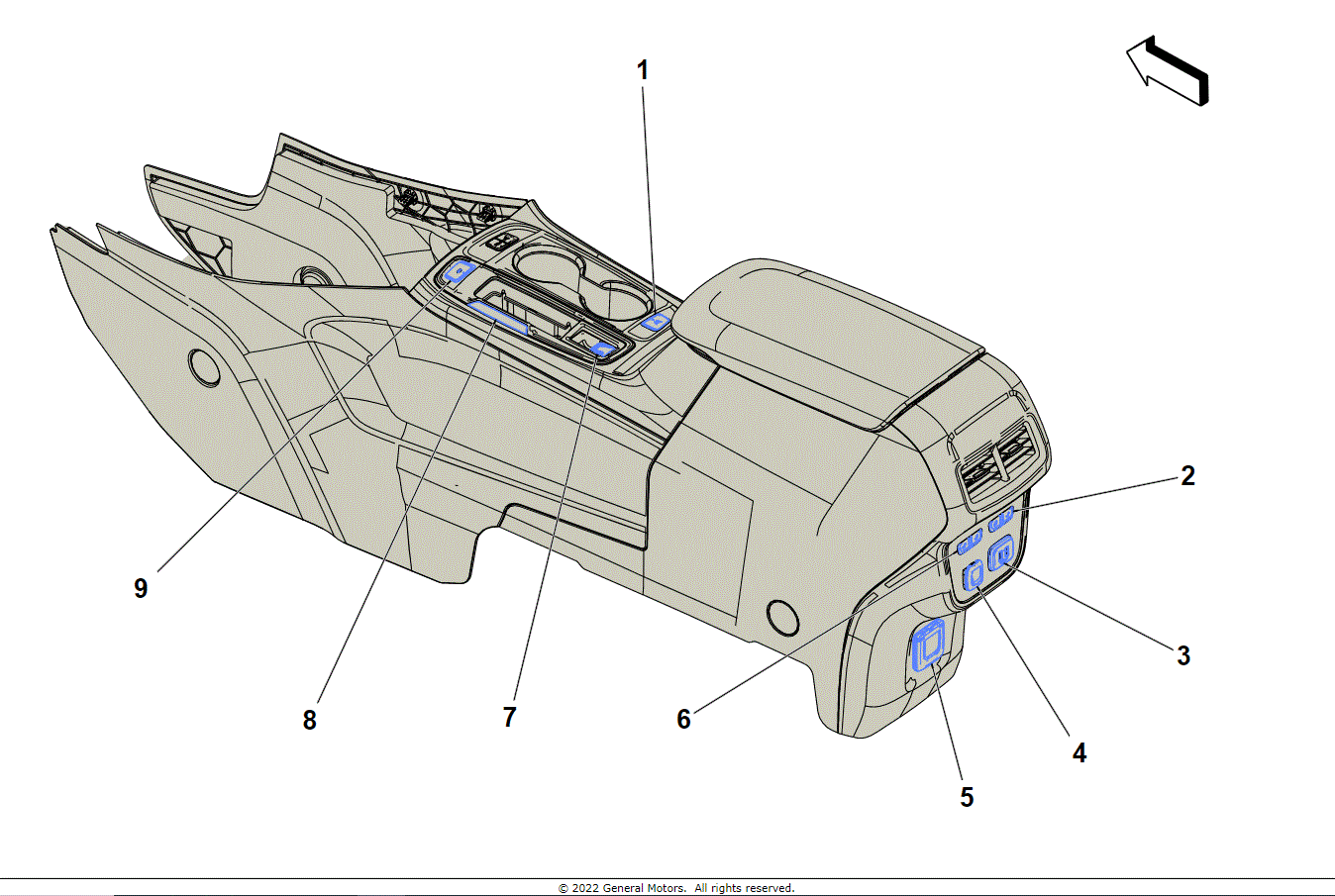

| Items |
|---|
| 1. S107 Parking Assist On/Off Switch S107 Parking Assist On/Off Switch (UFQ+EPH)S107 Parking Assist On/Off Switch (UFQ-EPH) |
| 2. S32RR Seat Heating Switch - Right Rear (KA6) S32RR Seat Heating Switch - Right Rear (KA6) |
| 3. X92C USB Receptacle - Center Console Rear (USS) X92C USB Receptacle - Center Console Rear (USS) |
| 4. X80L Accessory Power Receptacle - Center Console Rear (KPA) X80L Accessory Power Receptacle - Center Console Rear (KPA) |
| 5. X81 Accessory Power Receptacle - 110V AC (KI6) X81 Accessory Power Receptacle - 110V AC X1 (KI6)X81 Accessory Power Receptacle - 110V AC X2 (KI6) |
| 6. S32LR Seat Heating Switch - Left Rear (KA6) S32LR Seat Heating Switch - Left Rear (KA6) |
| 7. B80 Park Brake Switch B80 Park Brake Switch (-EPH)B80 Park Brake Switch (EPH) |
| 8. P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator |
| 9. S126 Drive Mode Select Switch S126 Drive Mode Select Switch (-EPH)S126 Drive Mode Select Switch (EPH) |
