Front Of The Engine Compartment And Transmission (MNH)

Front Of The Engine Compartment And Transmission (MNH)

Items
1. K20 Engine Control Module K20 Engine Control Module X1 (LH7)K20 Engine Control Module X1 (LTG)K20 Engine Control Module X1 (LYX)K20 Engine Control Module X2 (LH7)K20 Engine Control Module X2 (LTG)K20 Engine Control Module X2 (LYX)K20 Engine Control Module X3 (LH7)K20 Engine Control Module X3 (LTG)K20 Engine Control Module X3 (LYX)
2. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X11X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X5 (LH7)X50A Fuse Block - Underhood X6X50A Fuse Block - Underhood X7X50A Fuse Block - Underhood X8X50A Fuse Block - Underhood X9
3. Q8 Control Solenoid Valve Assembly Q8 Control Solenoid Valve Assembly X1 (MHG/MNH/MNK)Q8 Control Solenoid Valve Assembly X2 (MHG/MNH/MNK)Q8 Control Solenoid Valve Assembly X3 (MHG/MNH/MNK)Q8 Control Solenoid Valve Assembly X4 (MHG/MNH/MNK)
4. B280 Automatic Transmission Accumulator Solenoid Valve (KL9) B280 Automatic Transmission Accumulator Solenoid Valve (KL9+MHG/MNH)

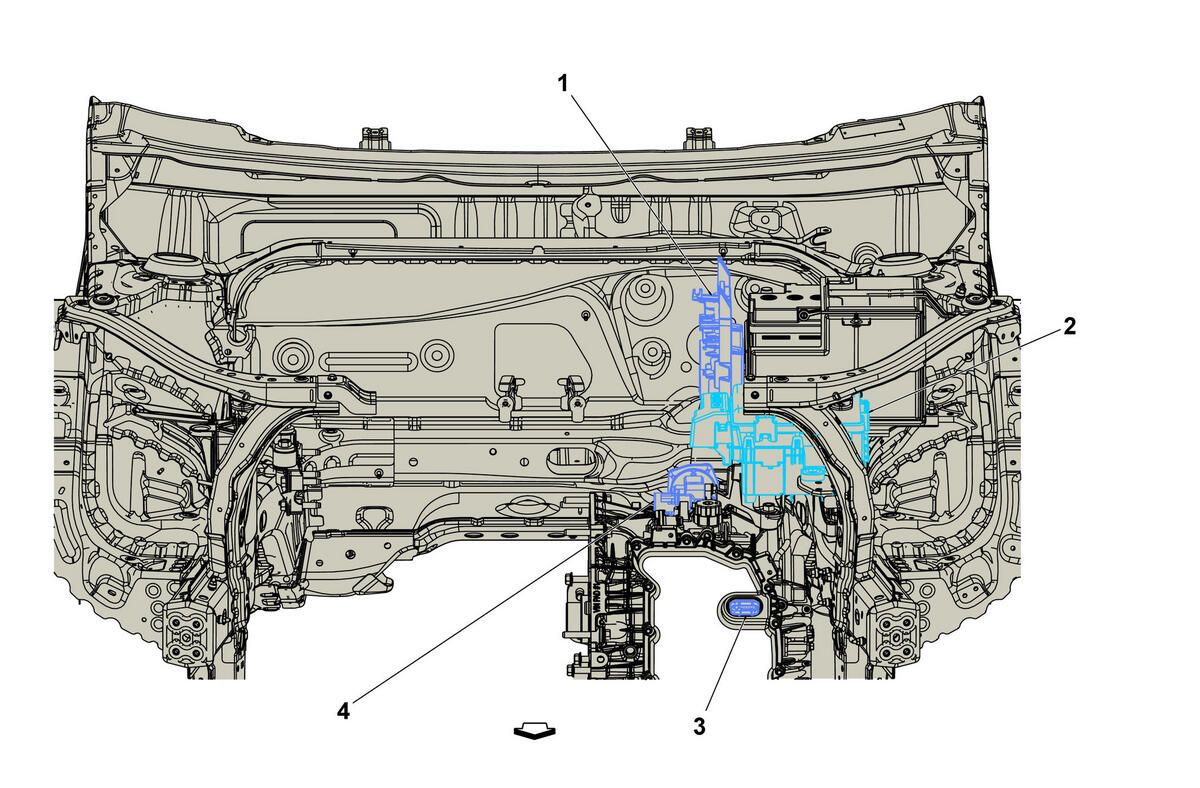

Fig 1: Front Of The Engine Compartment And Transmission (MNH)

Courtesy of GENERAL MOTORS COMPANY
