Installation Procedure

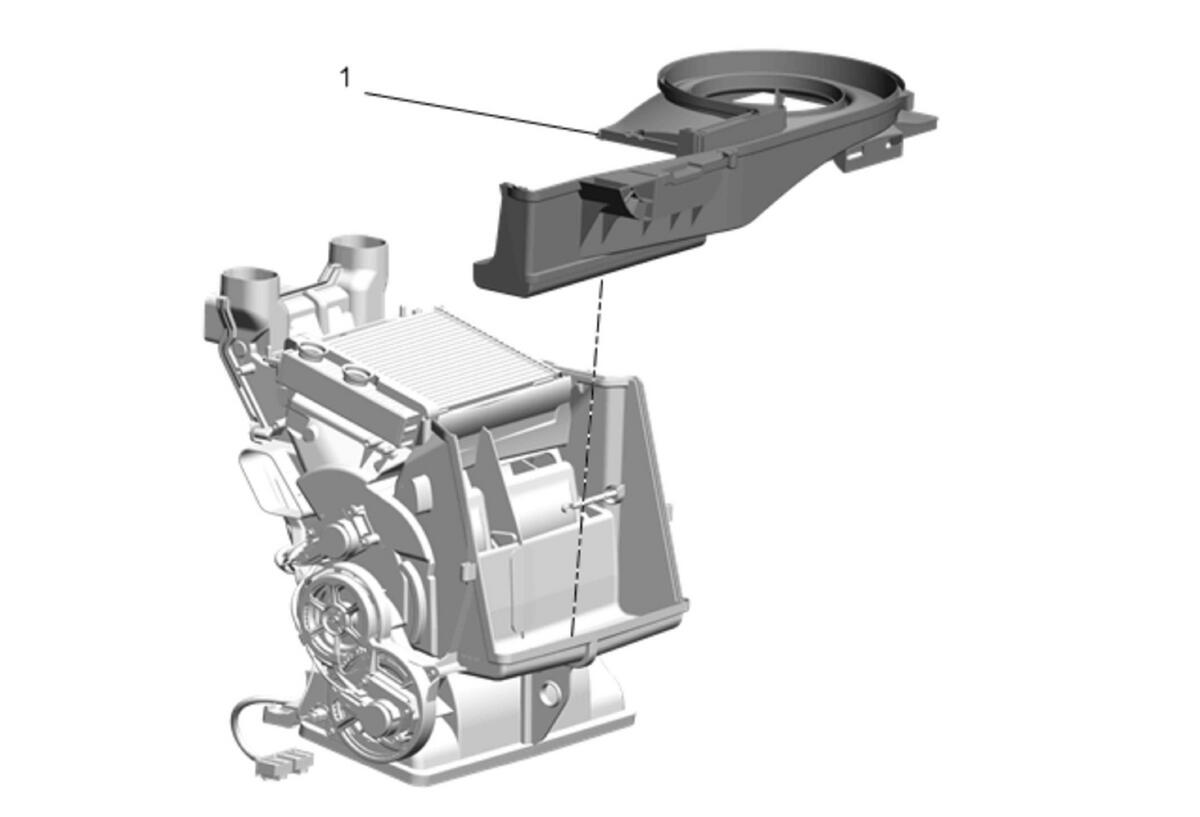

    Fig 1: Air Conditioning Evaporator Upper Case Assembly
    GM3921641Courtesy of GENERAL MOTORS COMPANY
  1. Air Conditioning Evaporator Upper Case Assembly (1)

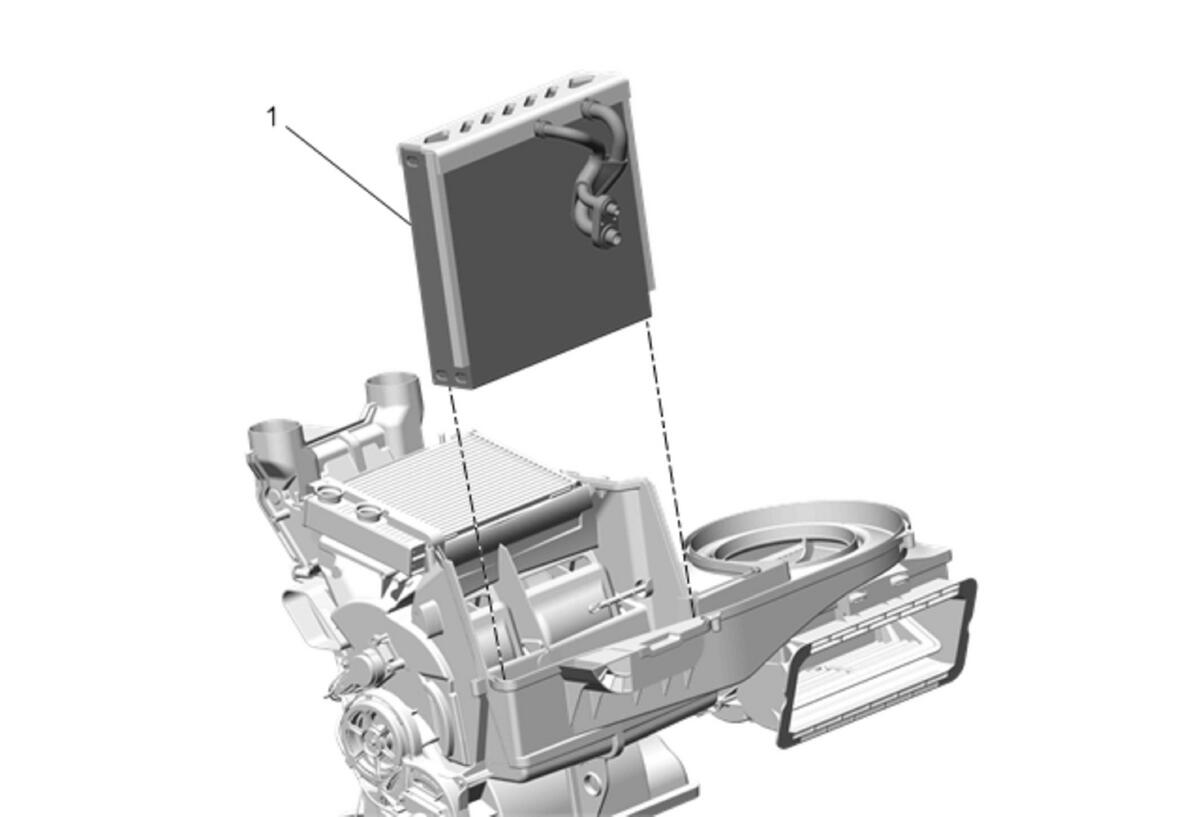

    2. Fig 2: Air Conditioning Evaporator
    GM3921515Courtesy of GENERAL MOTORS COMPANY
  2. Air Conditioning Evaporator (1)

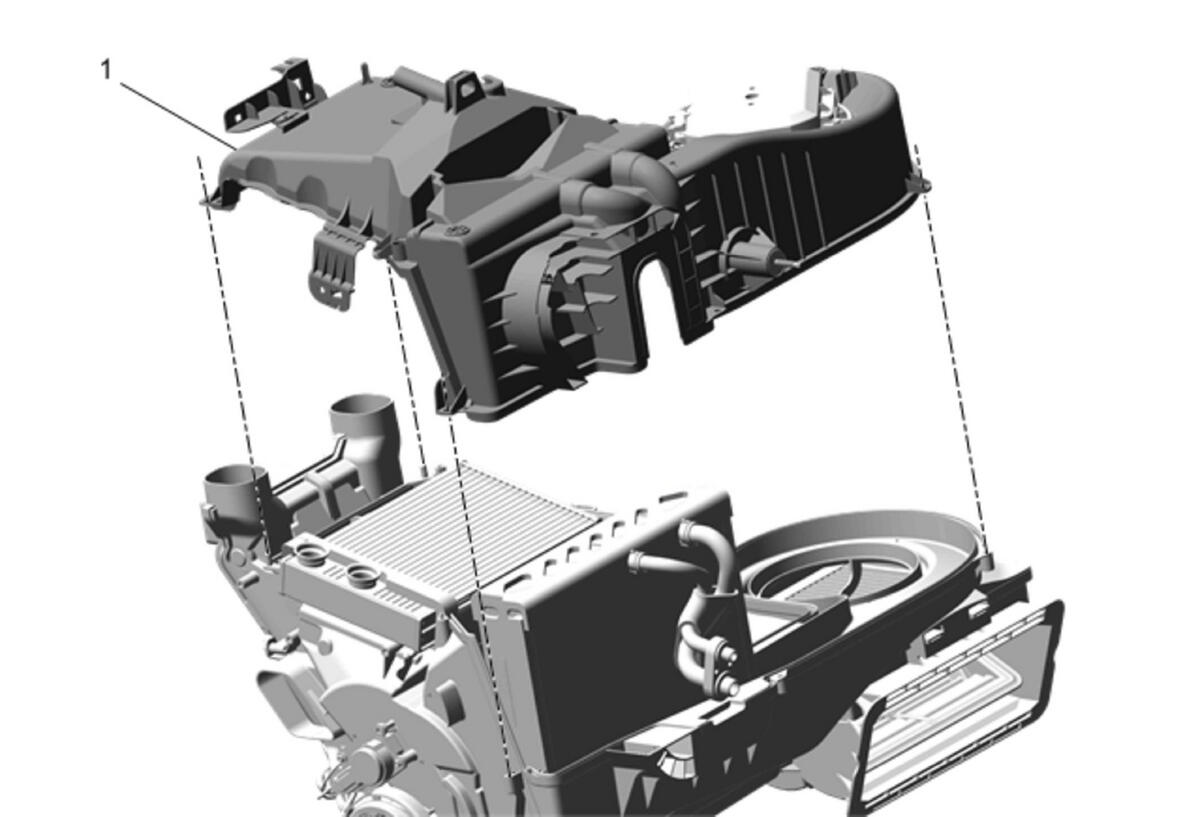

    3. Fig 3: Air Conditioning Evaporator Lower Case Assembly
    GM3921523Courtesy of GENERAL MOTORS COMPANY
  3. Air Conditioning Evaporator Lower Case Assembly (1)

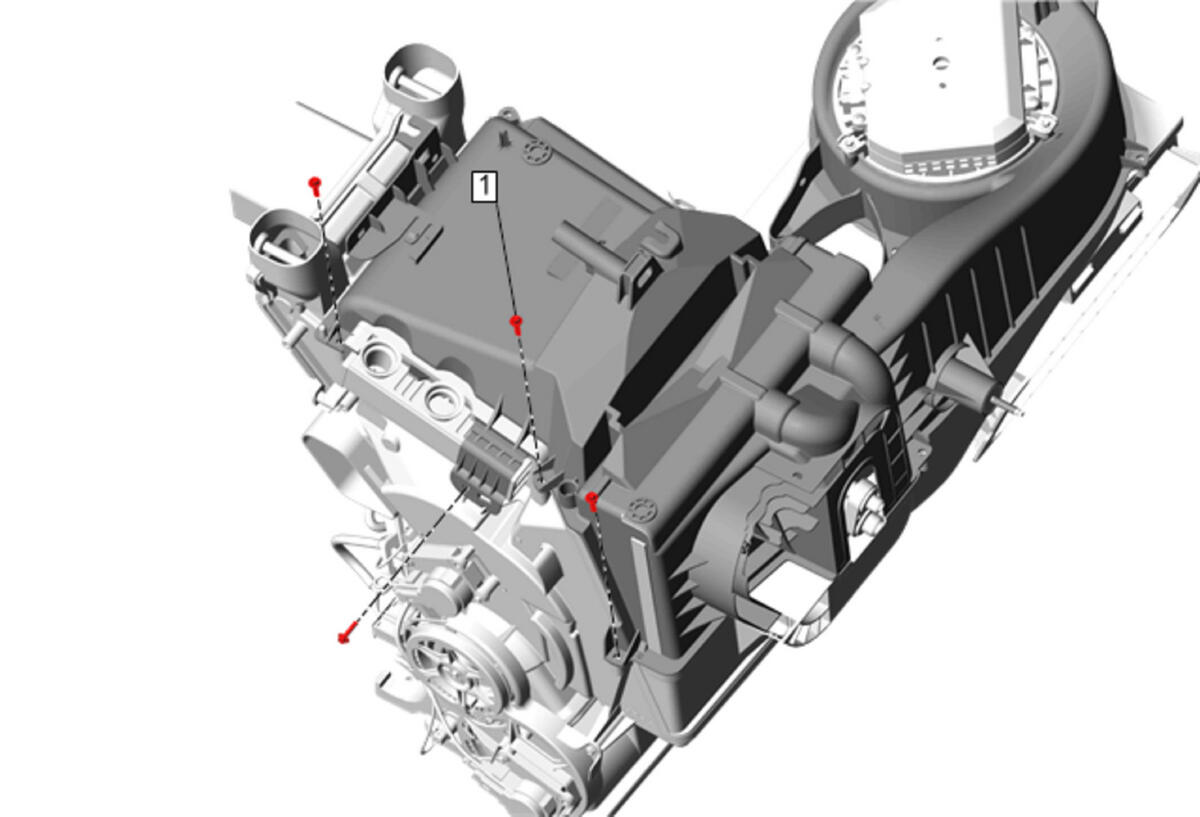

    4. Fig 4: Air Conditioning Evaporator Case Bolt
    GM3921522Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install Air Conditioning Evaporator Case Bolt (1) [4x] 2.5 N.m (22 lb in)

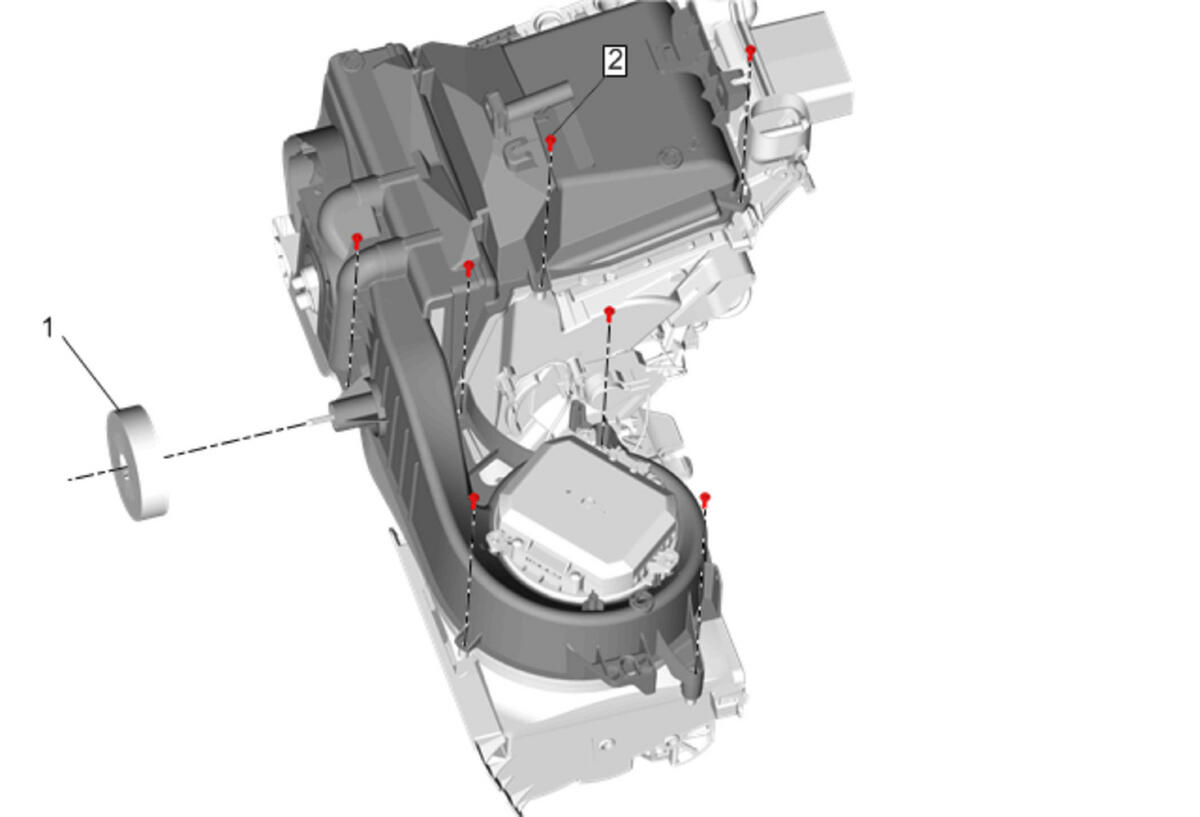

    5. Fig 5: Heater and Air Conditioning Evaporator and Blower Module Seal
    GM3921519Courtesy of GENERAL MOTORS COMPANY
  5. Install Air Conditioning Evaporator Case Bolt (2) [7] 2.5 N.m (22 lb in)
  6. Install Heater and Air Conditioning Evaporator and Blower Module Seal (1)
  7. Install Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (Equinox LYX) Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (Equinox LTG) Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (Equinox LH7) Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (Terrain LH7) Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (Terrain LTG) Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (Terrain LYX With KL9) Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (Terrain LYX) Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (Equinox LYX With KL9)
