Throttle Body Assembly Replacement

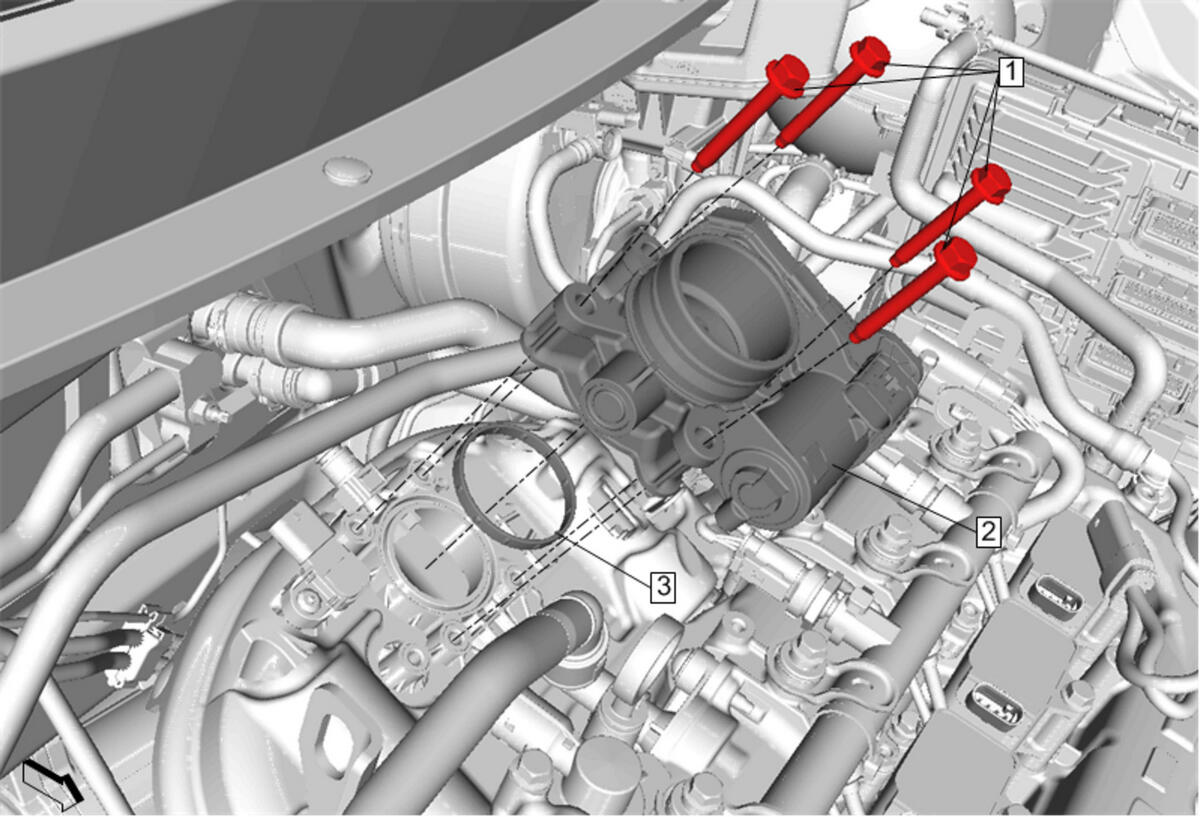

Fig 1: Throttle Body Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Charge Air Cooler Outlet Air Tube Replacement Disconnect the electrical connector.
1	Throttle Body Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Throttle Body Procedure Perform the intake system learned values reset. Intake System Learned Values Reset Perform throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
3	Throttle Body Seal Procedure Install a NEW throttle body seal.
