Spark Plug Replacement

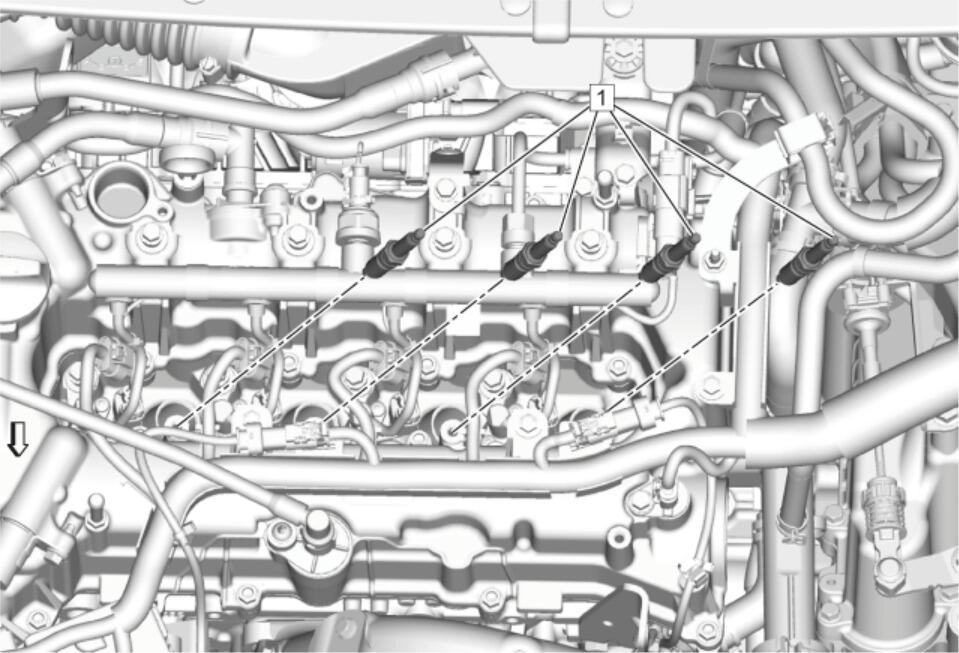

Fig 1: Spark Plugs
GM3686937Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Ignition Coil Replacement
1 Spark Plug[4x]
CAUTION:

Refer to:Component Fastener Tightening Caution


Tighten
17 N.m (13 lb ft)
