Intake Air Duct Replacement

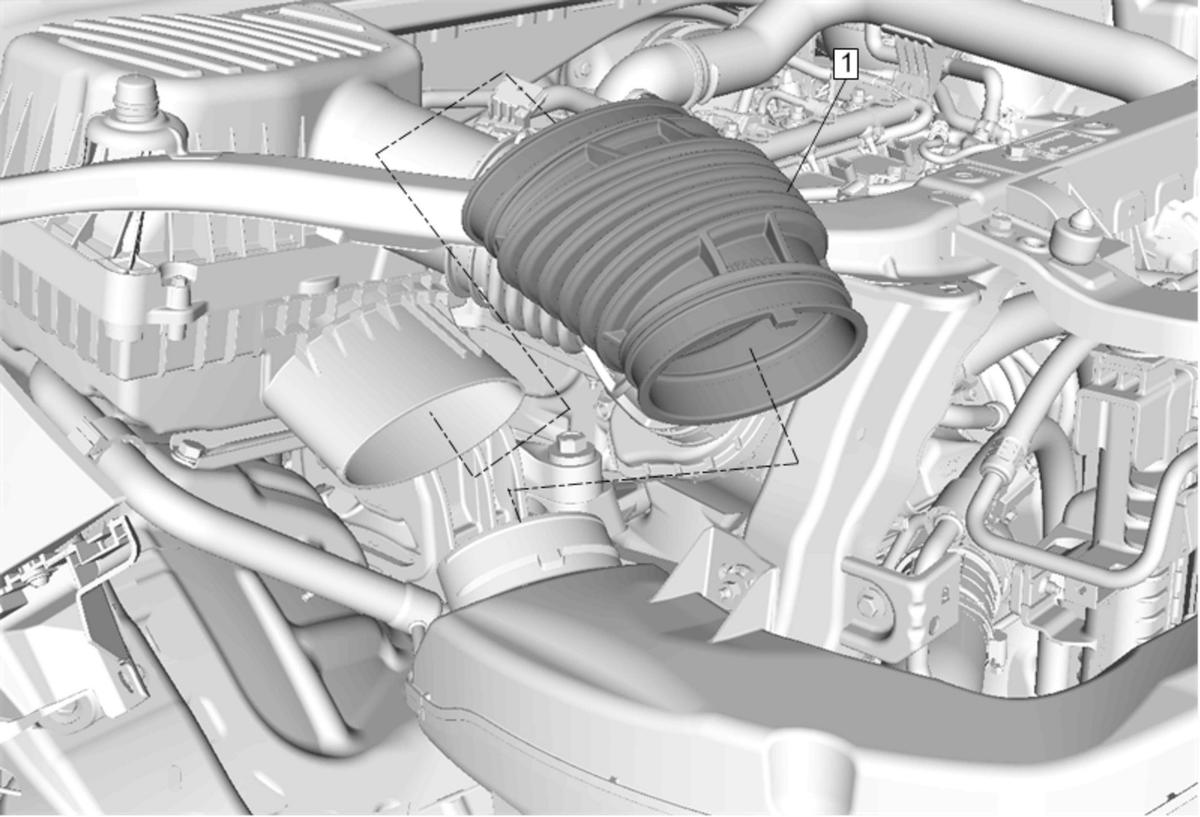

Fig 1: Intake Air Duct
GM4592871Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Air Cleaner Outlet Duct Replacement
1 Intake Air Duct
Procedure
Perform the intake system learned values reset. Intake System Learned Values Reset
NOTE:

Align the tab on the duct to the correct position on the intake air baffle.
