Intake Air Baffle Replacement

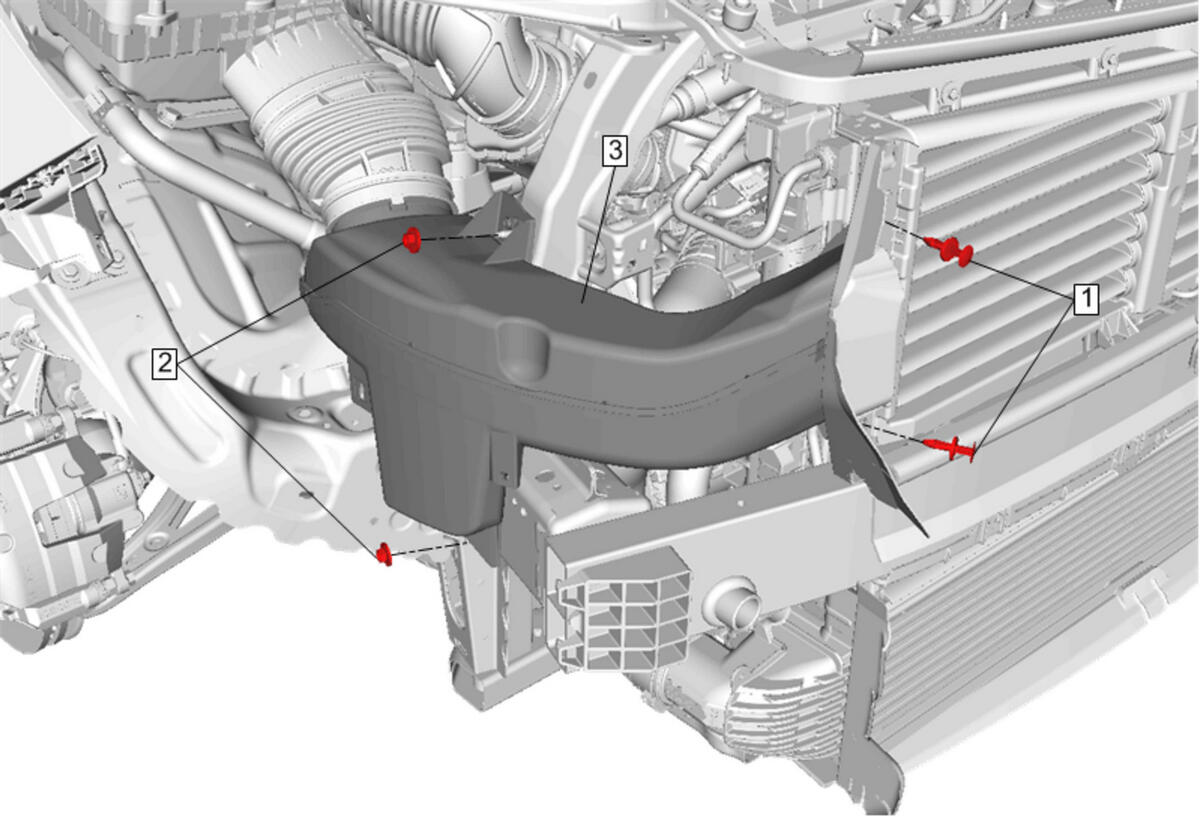

| Callout | Component Name |
|---|---|
| Preliminary Procedure Headlamp Replacement (Chevrolet)Headlamp Replacement (GMC) |
|
| 1 | Intake Air Baffle Retainer [2x] |
| 2 | Front Intake Air Duct Nut[2x]
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 3 | Intake Air Baffle Procedure Remove wiring harness retainers from intake air baffle. |
