Installation Procedure

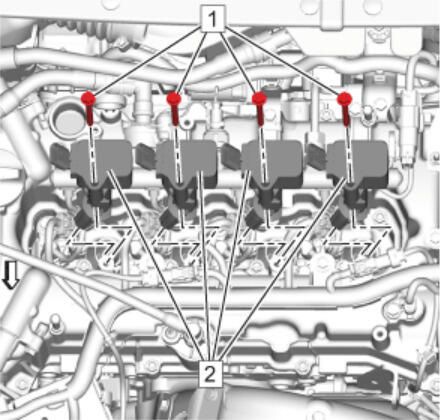

    Fig 1: Ignition Coils And Bolts
    GM3686889Courtesy of GENERAL MOTORS COMPANY
  1. Install the ignition coils (2).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the ignition coil bolts (1) and tighten to 10 N.m (89 lb in).

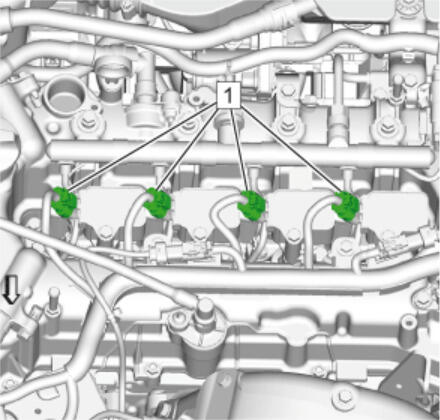

    3. Fig 2: Ignition Coil Electrical Connectors
    GM3686311Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The ignition coil wiring harness cylinders 1 and 3 are marked white.

  3. Connect the electrical connectors (1).
  4. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)
  5. Install Intake Manifold Cover - Intake Manifold Cover Replacement
