Installation Procedure

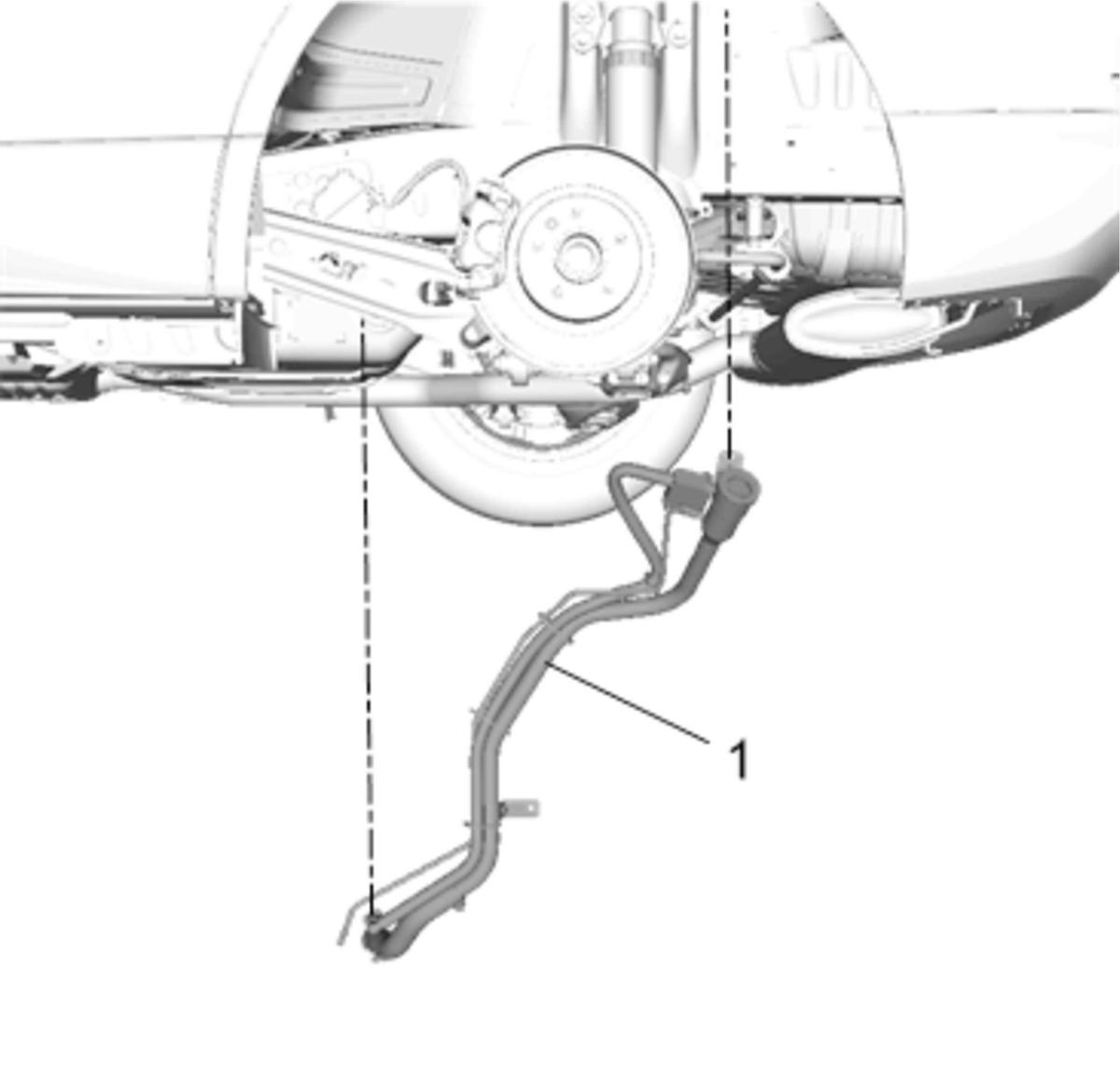

    Fig 1: Fuel Tank Filler Pipe
    GM4597401Courtesy of GENERAL MOTORS COMPANY
  1. Install Fuel Tank Filler Pipe (1)

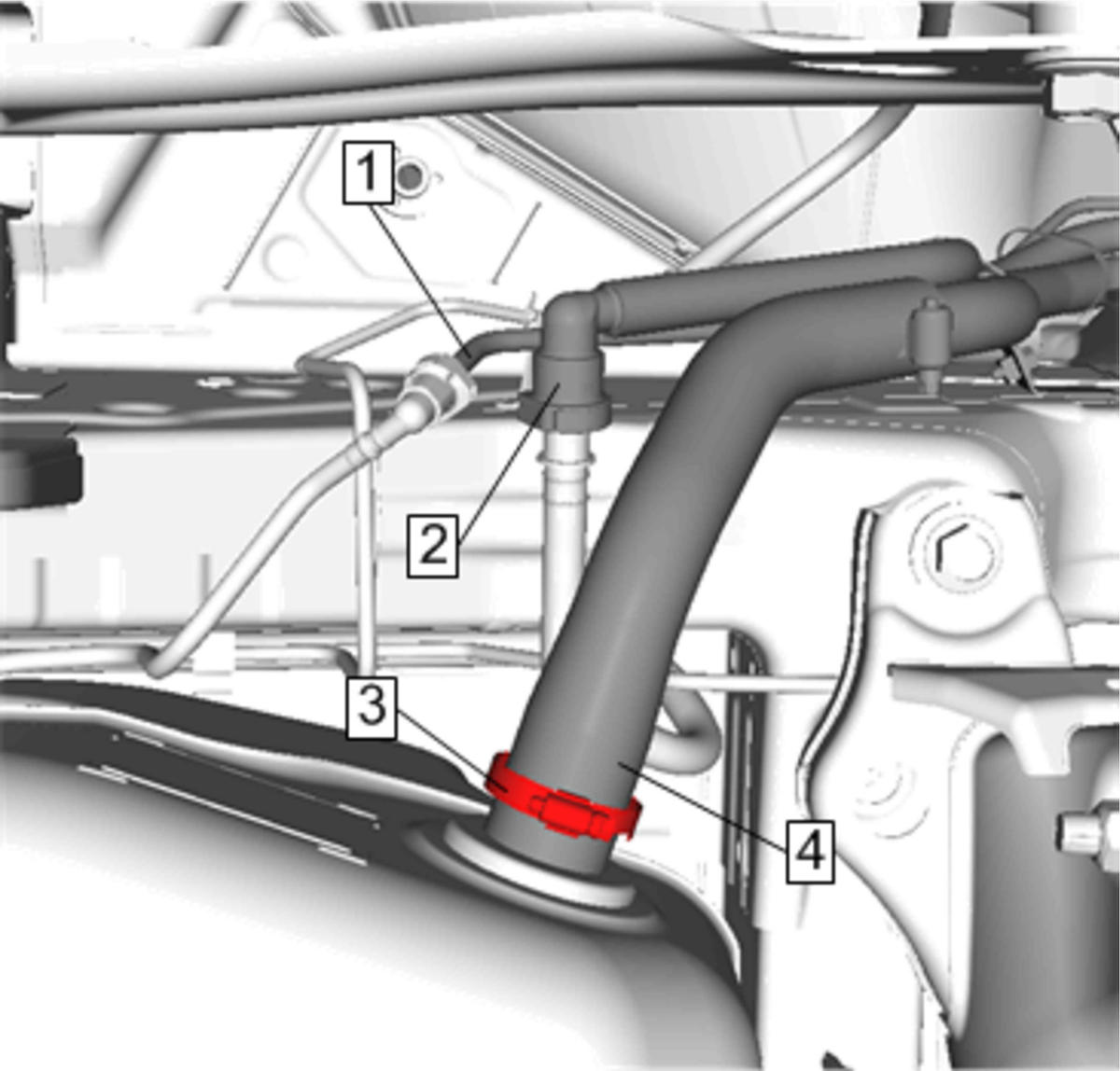

    2. Fig 2: Tank Filler Pipe
    GM4597398Courtesy of GENERAL MOTORS COMPANY
  2. Install Fuel Tank Filler Hose (4)
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install Fuel Tank Filler Hose Clamp (3) and tighten 4 N.m (35 lb in)
  4. Connect Evaporative Emission Canister Vent Hose (2)-Plastic Collar Quick Connect Fitting Service
  5. Connect Fuel Tank Filler Pipe (1) - Plastic Collar Quick Connect Fitting Service

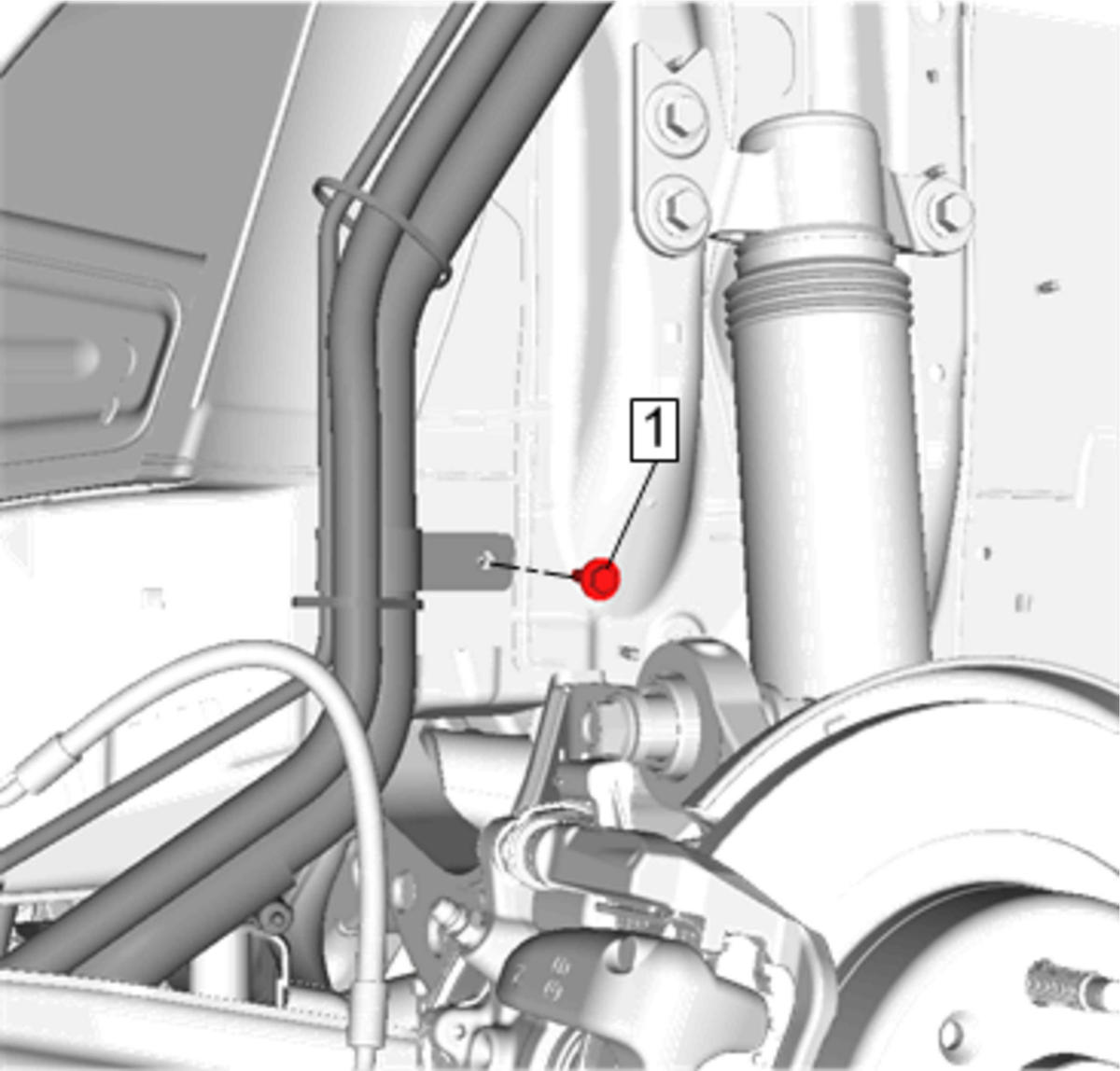

    6. Fig 3: Fuel Tank Filler Pipe Ground Bolt
    GM4597397Courtesy of GENERAL MOTORS COMPANY
  6. Install Fuel Tank Filler Pipe Ground Bolt(1) and tighten 9 N.m (80 lb in)

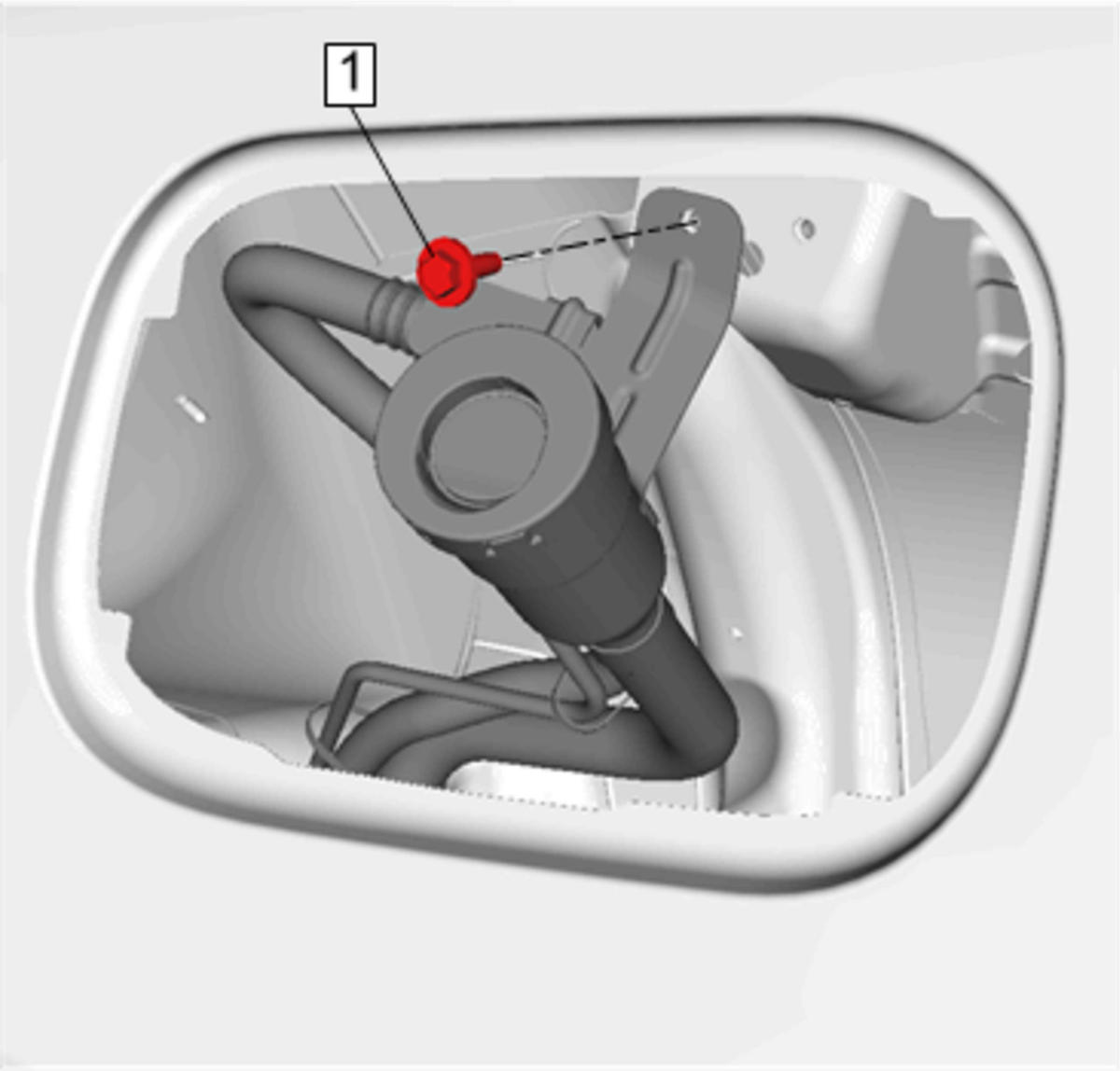

    7. Fig 4: Tank Filler Pipe Ground Bolt
    GM4597394Courtesy of GENERAL MOTORS COMPANY
  7. Install Fuel Tank Filler Pipe Ground Bolt(1) and tighten 9 N.m (80 lb in)
  8. Install Rear Wheelhouse Liner-Left Side - Rear Wheelhouse Liner Replacement- Left Side (Equinox)Rear Wheelhouse Liner Replacement- Left Side (Terrain)
  9. Install Fuel Tank Filler Pipe Housing - Fuel Tank Filler Pipe Housing Replacement (Equinox)Fuel Tank Filler Pipe Housing Replacement (Terrain)
  10. Refill fuel tank.
