Installation Procedure
- ANY fuel injectors being reused MUST have NEW combustion fuel injector seals (1) installed. Fuel Rail and Injectors Installation
- Install the EN-51146 - 2 - 5 calibration tool (1) on the fuel injector.
- Lightly coat the NEW fuel injector seal (2) with clean engine oil. Adhesives, Fluids, Lubricants, and Sealers

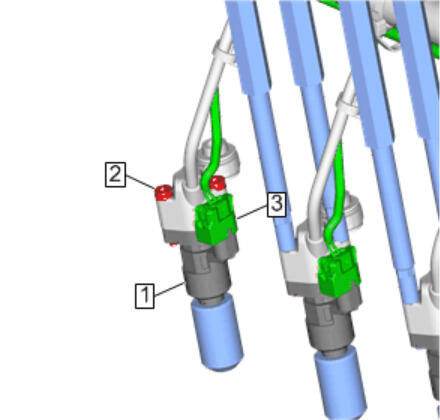

- Install the fuel injector (1) into the fuel injection fuel rail.
- Perform the following steps to install the NEW inner and outer fuel injector bolts (2):
- Apply one drop of thread locking adhesive to each bolt. Adhesives, Fluids, Lubricants, and Sealers
- Install the bolts and tighten to 5 N.m (44 lb in).
- Connect the wiring harness connector (3).
- Install the fuel injection fuel rail assembly. Fuel Injection Fuel Rail Assembly Replacement
NOTE:
ALWAYS install a NEW fuel injector seal when the fuel injector is removed from the fuel injection fuel rail.
CAUTION:
Refer to Fastener Caution .
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
