Engine Oil Pressure Sensor Replacement

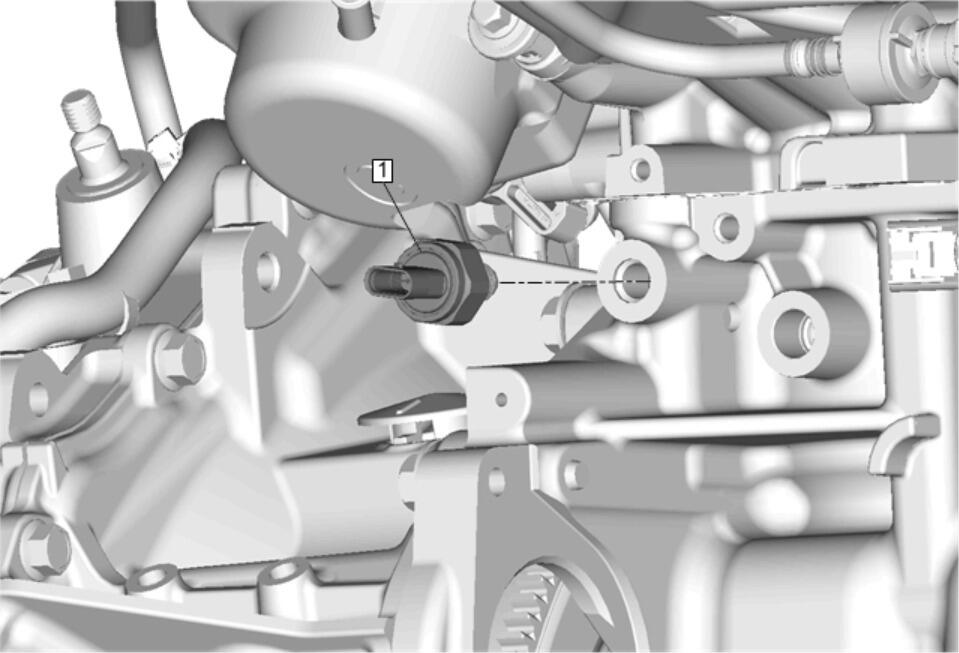

Fig 1: Engine Oil Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Starter Replacement (LYX - All Wheel Drive)Starter Replacement (LYX - Front Wheel Drive)
1	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure  Disconnect the electrical connector. Tighten  35 N.m (26 lb ft)
