Camshaft Position Sensor Replacement - Intake

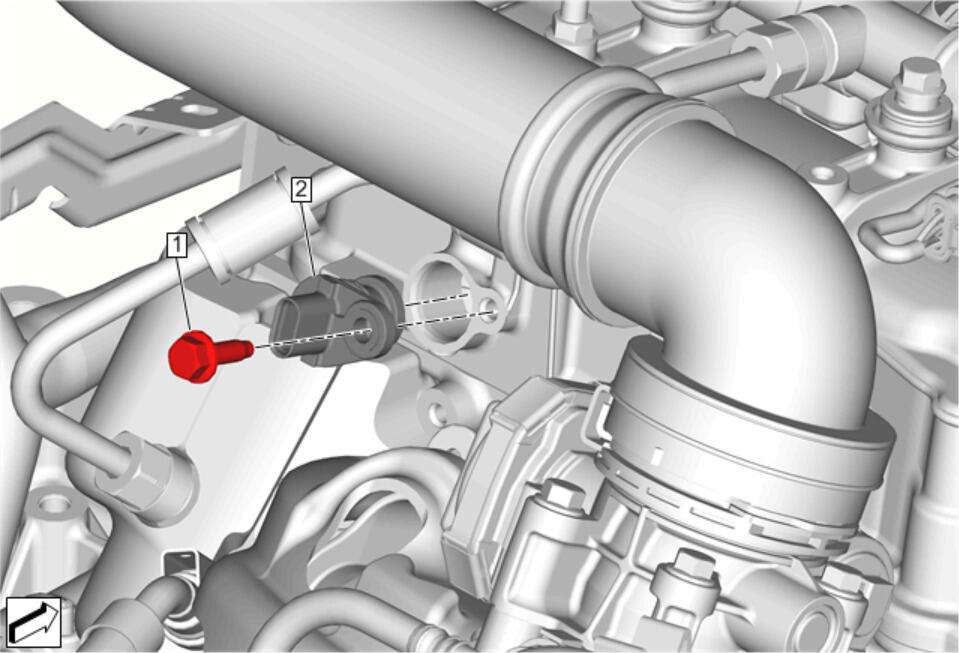

Fig 1: Camshaft Position Sensor - Intake

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Intake Manifold Cover Replacement
1	Camshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Camshaft Position Sensor Procedure Disconnect the electrical connector. Install a NEW seal if not replacing the sensor.

Callout

Component Name

Camshaft Position Sensor Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Camshaft Position Sensor

Procedure
