Air Cleaner Assembly Replacement

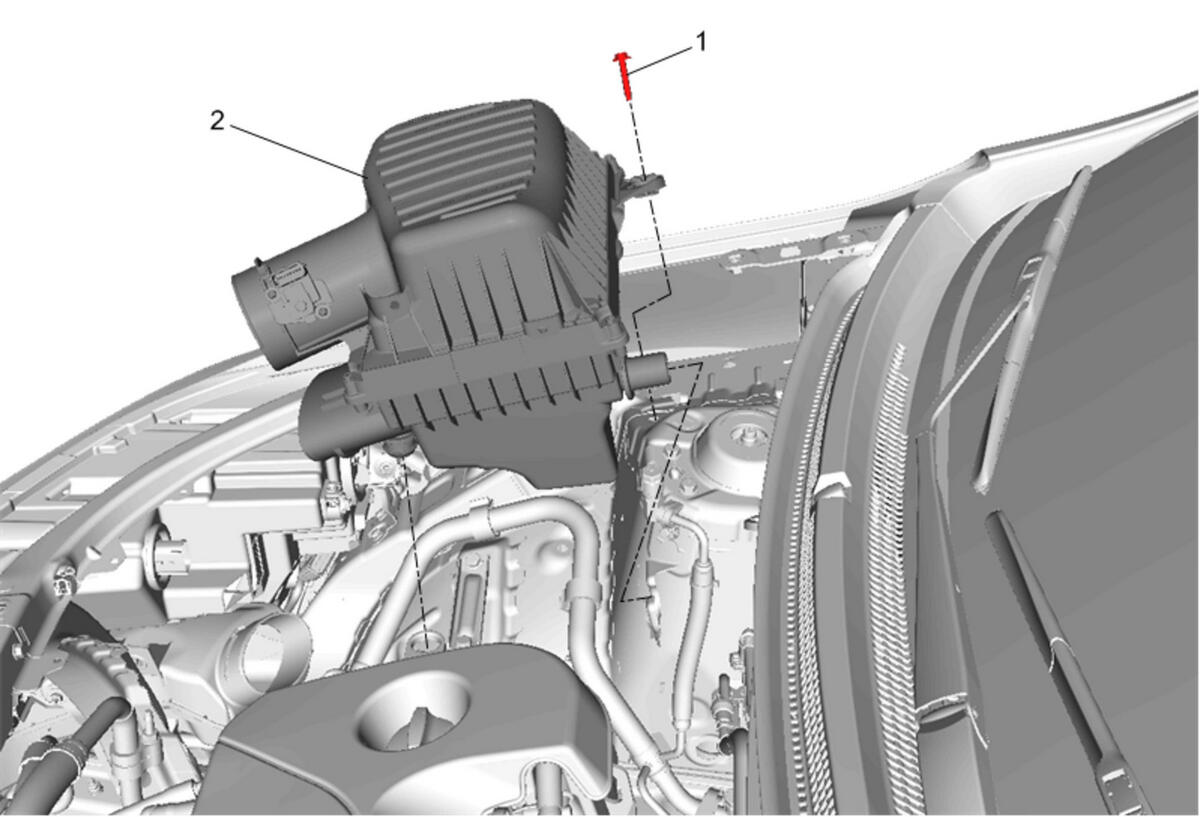

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Air Cleaner Outlet Duct Replacement Intake Air Duct Replacement Disconnect the electrical connector. Remove the two wiring harness retainers from the air cleaner assembly.
1	Air Cleaner Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Air Cleaner Assembly Procedure Remove the air cleaner housing from the retainers. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure

Air Cleaner Bolt

CAUTION:

Tighten
9 N.m (80 lb in)

Air Cleaner Assembly

Procedure
