Installation Procedure

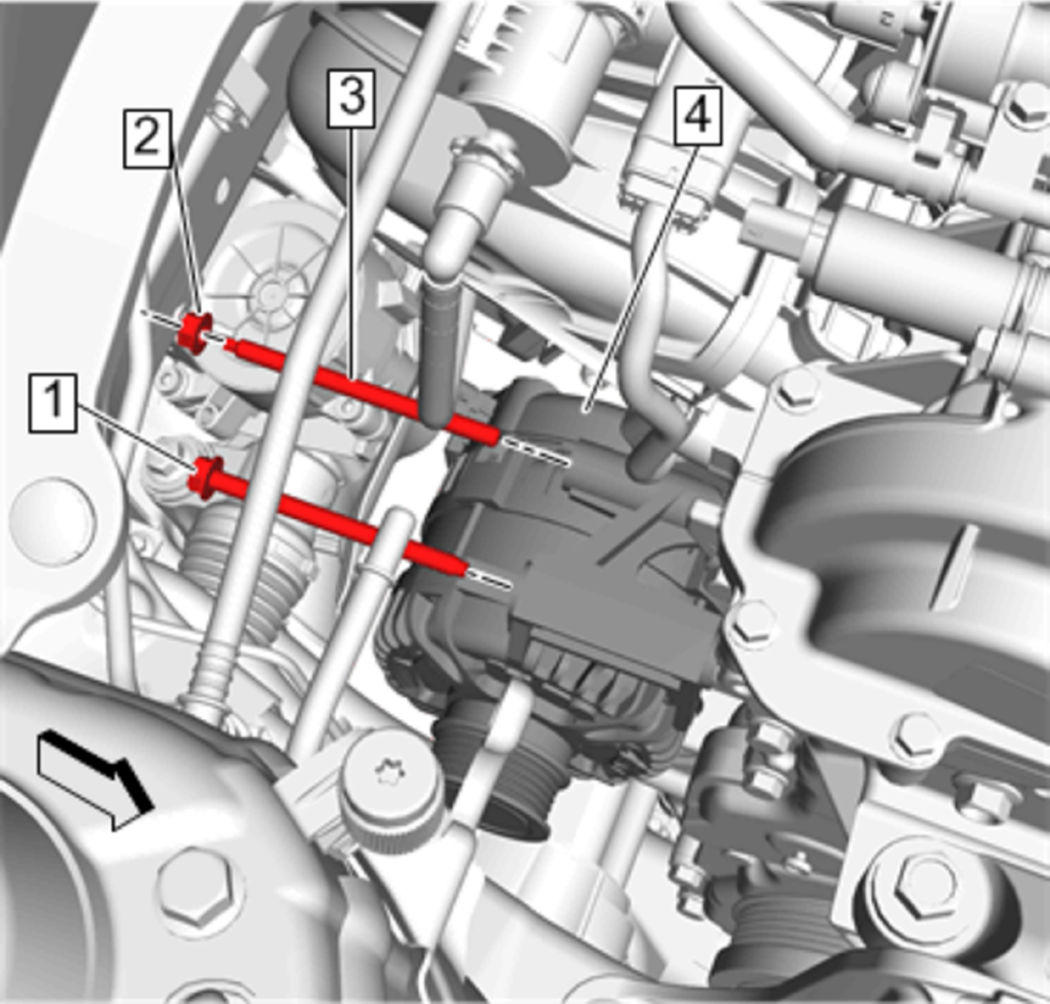

    Fig 1: Generator, Nut And Bolt
    GM4635871Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  1. If necessary, install the generator mounting stud. (3) - Tighten 9 N.m (80 lb in)
  2. Install Generator (4).
  3. Install Generator Nut (2) and tighten 22 N.m (16 lb ft)
  4. Install Generator Bolt (1) and tighten 22 N.m (16 lb ft)

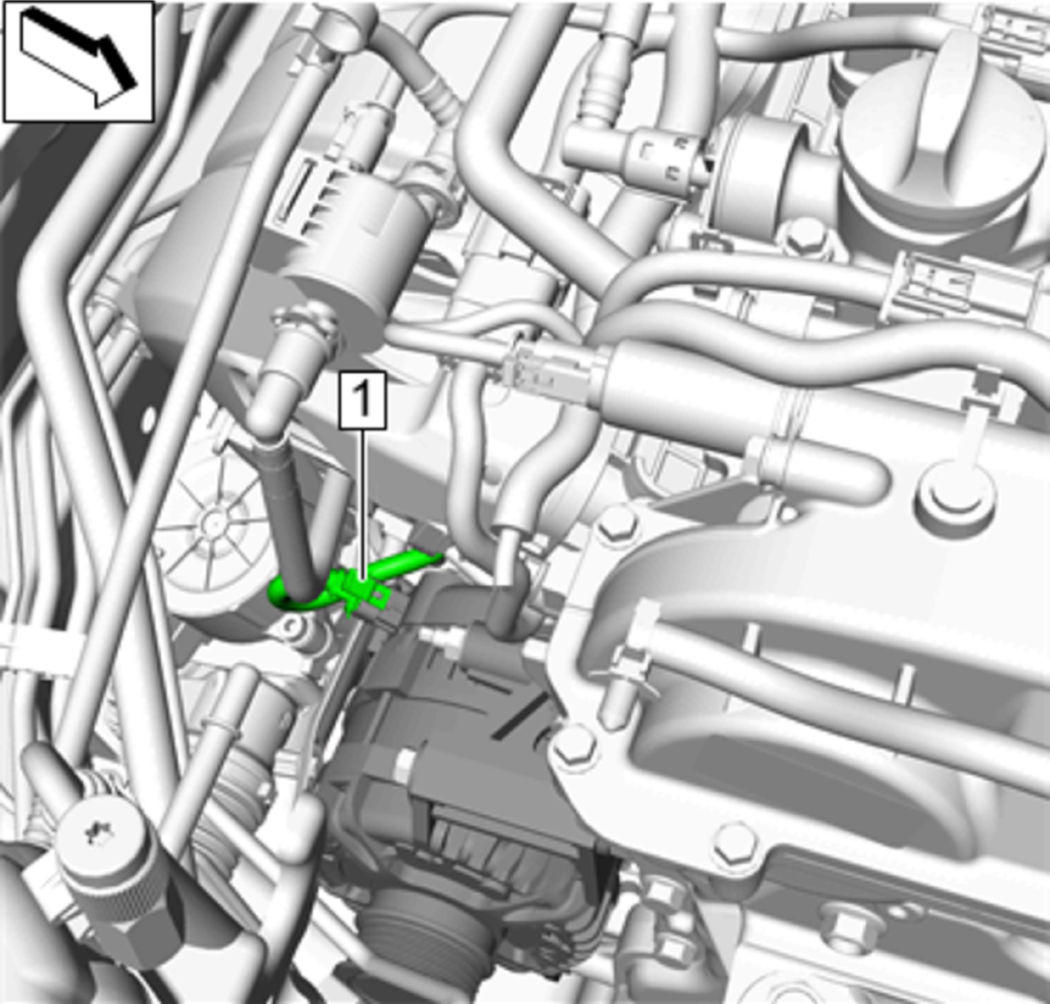

    5. Fig 2: Electrical Connector
    GM4635869Courtesy of GENERAL MOTORS COMPANY
  5. Connect Electrical Connector (1).
  6. Raise and support the vehicle. Lifting and Jacking the Vehicle

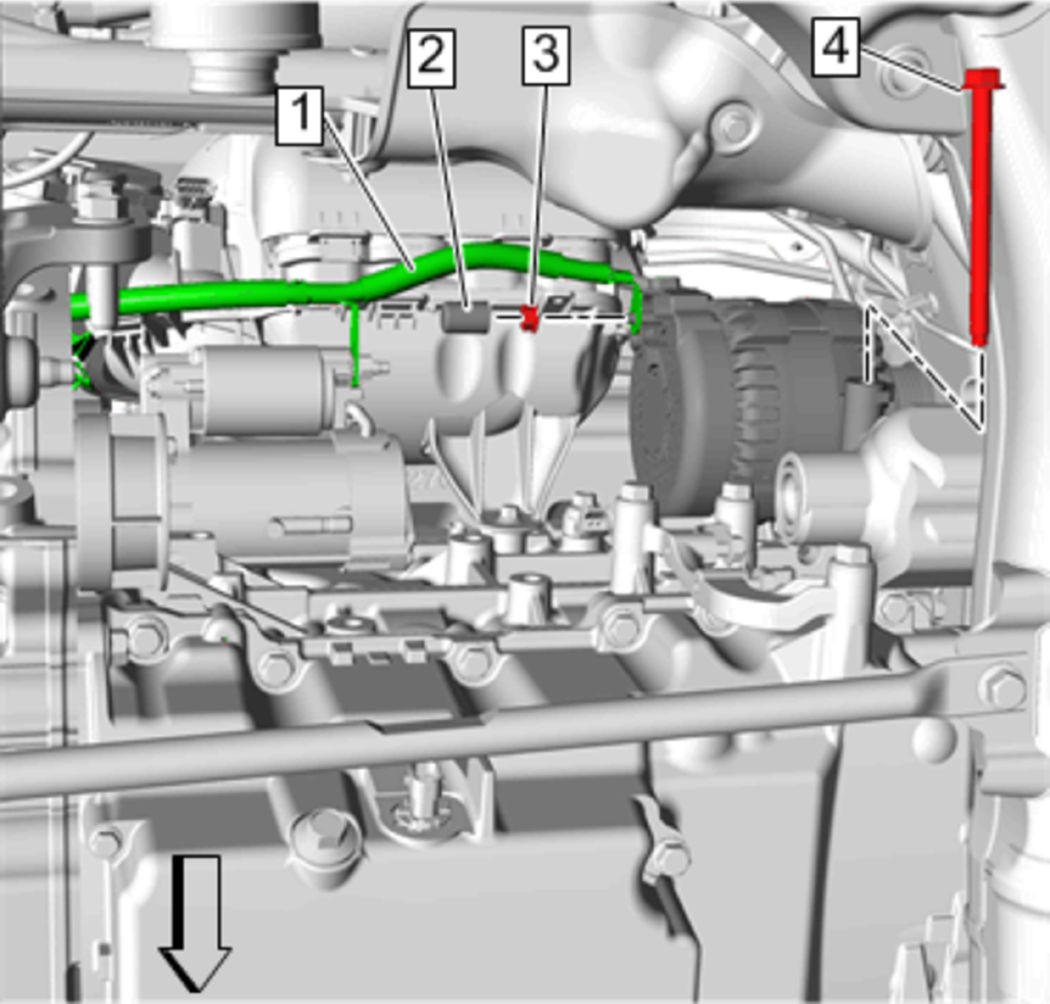

    7. Fig 3: Protective Cap, Generator Nut And Bolt
    GM4635870Courtesy of GENERAL MOTORS COMPANY
  7. Install Generator Bolt (4) and tighten 22 N.m (16 lb ft)
  8. Install Starter Solenoid Cable (1).
  9. Install Generator Nut (3) and tighten 15 N.m (11 lb ft)
  10. Install Protective Cap (2).
  11. Install Drive Belt (1) - Drive Belt Replacement
  12. Lower the vehicle.
  13. If necessary, connect the fuel feed pipe. Fuel Feed Front Pipe Replacement
  14. Intake Manifold Cover -Intake Manifold Cover Replacement
    15. Fig 4: Air Cleaner Assembly
    GM4645244Courtesy of GENERAL MOTORS COMPANY
  15. Install Air Cleaner Assembly (2) -Air Cleaner Assembly Replacement
  16. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (KL9)
