Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)
  2. Remove Lower Oil Pan - Lower Oil Pan Replacement

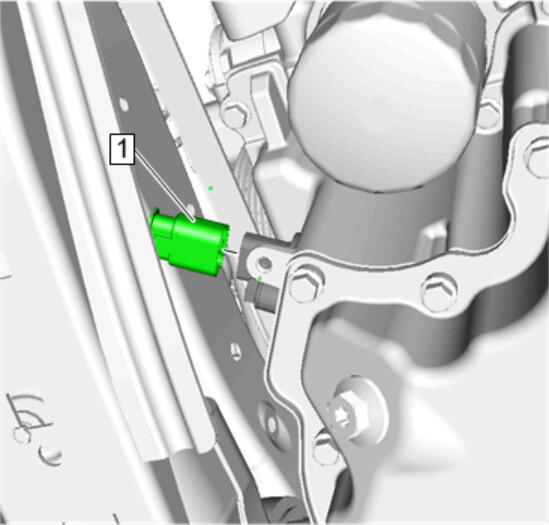

    3. Fig 1: Electrical Connector
    GM4597714Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect Electrical Connector (1) @Engine Oil Level Indicator Control Module Wiring Harness

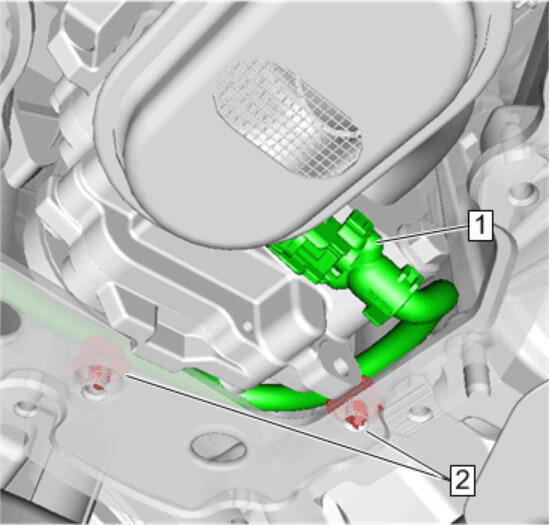

    4. Fig 2: Electrical Connector And Wiring Harness Retainer
    GM4597718Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect Electrical Connector (1) @ Oil Pump Flow Control Solenoid Valve
  5. Remove { If equipped }Wiring Harness Retainer (2)

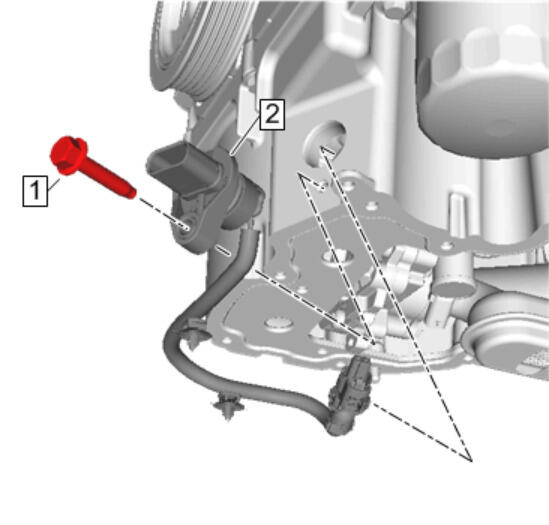

    6. Fig 3: Wiring Harness Connector Bolt
    GM4597727Courtesy of GENERAL MOTORS COMPANY
  6. Remove Wiring Harness Connector Bolt (1)
  7. Remove Engine Oil Level Indicator Control Module Wiring Harness
