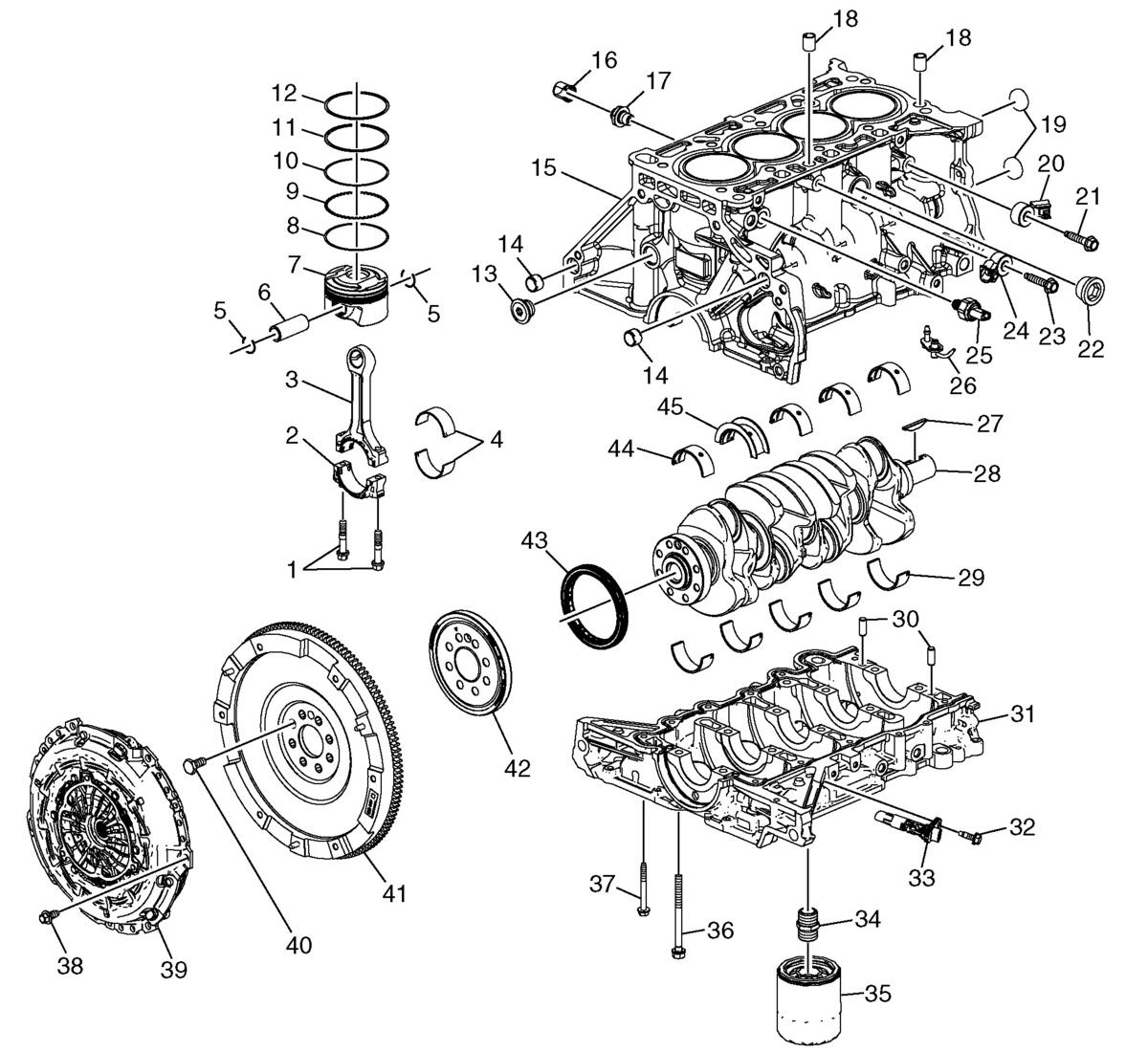

| 1 |
Connecting Rod Bolt[8x] |
| 2 |
Connecting Rod Cap[4x] |
| 3 |
Connecting Rod[4x] |
| 4 |
Connecting Rod Bearing[4x] |
| 5 |
Piston Pin Retainer [8x] |
| 6 |
Piston Pin[4x] |
| 7 |
Piston[4x] |
| 8 |
Piston Oil Ring Rail[4x] |
| 9 |
Piston Oil Ring Rail Spacer[4x] |
| 10 |
Piston Oil Ring Rail[4x] |
| 11 |
Piston Compression Lower Ring[4x] |
| 12 |
Piston Compression Upper Ring [4x] |
| 13 |
Engine Block Oil Gallery Plug |
| 14 |
Transmission Locating Pin[2x] |
| 15 |
Engine Block |
| 16 |
Turbocharger Oil Feed Pipe Clip |
| 17 |
Turbocharger Pipe Fitting |
| 18 |
Cylinder Head Locating Pin[2x] |
| 19 |
Engine Block Core Hole Plug[2x] |
| 20 |
Knock Sensor |
| 21 |
Knock Sensor Bolt |
| 22 |
Engine Coolant Heater Hole Plug |
| 23 |
Knock Sensor Bolt |
| 24 |
Knock Sensor |
| 25 |
Engine Oil Pressure Sensor |
| 26 |
Piston Oil Nozzle[4x] |
| 27 |
Crankshaft Balancer Key |
| 28 |
Crankshaft |
| 29 |
Crankshaft Lower Bearing[5x] |
| 30 |
Lower Crankcase Locating Pin[4x] |
| 31 |
Lower Crankcase |
| 32 |
Crankshaft Position Sensor Bolt |
| 33 |
Crankshaft Position Sensor |
| 34 |
Oil Filter Fitting |
| 35 |
Oil Filter |
| 36 |
Lower Crankcase Bolt[10x] |
| 37 |
Lower Crankcase Bolt[13x] |
| 38 |
Clutch Pressure Plate Bolt[6x] |
| 39 |
Clutch Pressure Plate |
| 40 |
Engine Flywheel Bolt[8x] |
| 41 |
Engine Flywheel |
| 42 |
Crankshaft Position Sensor Reluctor Ring |
| 43 |
Crankshaft Rear Oil Seal |
| 44 |
Crankshaft Upper Bearing[4x] |
| 45 |
Crankshaft Thrust Upper Bearing |
