Installation Procedure

    Fig 1: Radiator
    GM4585203Courtesy of GENERAL MOTORS COMPANY
  1. Install Radiator (1)
    2. Fig 2: Engine Coolant Fan
    GM4582810Courtesy of GENERAL MOTORS COMPANY
  2. Install Engine Coolant Fan (1) @ Radiator - Engine Coolant Fan Replacement (LTG)
    3. Fig 3: Radiator Upper Bracket-Right Side
    GM4581249Courtesy of GENERAL MOTORS COMPANY
  3. Install Radiator Upper Bracket - Right Side (2) - Radiator Upper Bracket Replacement - Right Side
    4. Fig 4: Radiator Upper Bracket-Left Side
    GM4581256Courtesy of GENERAL MOTORS COMPANY
  4. Install Radiator Upper Bracket - Left Side (2) -Radiator Upper Bracket Replacement - Left Side

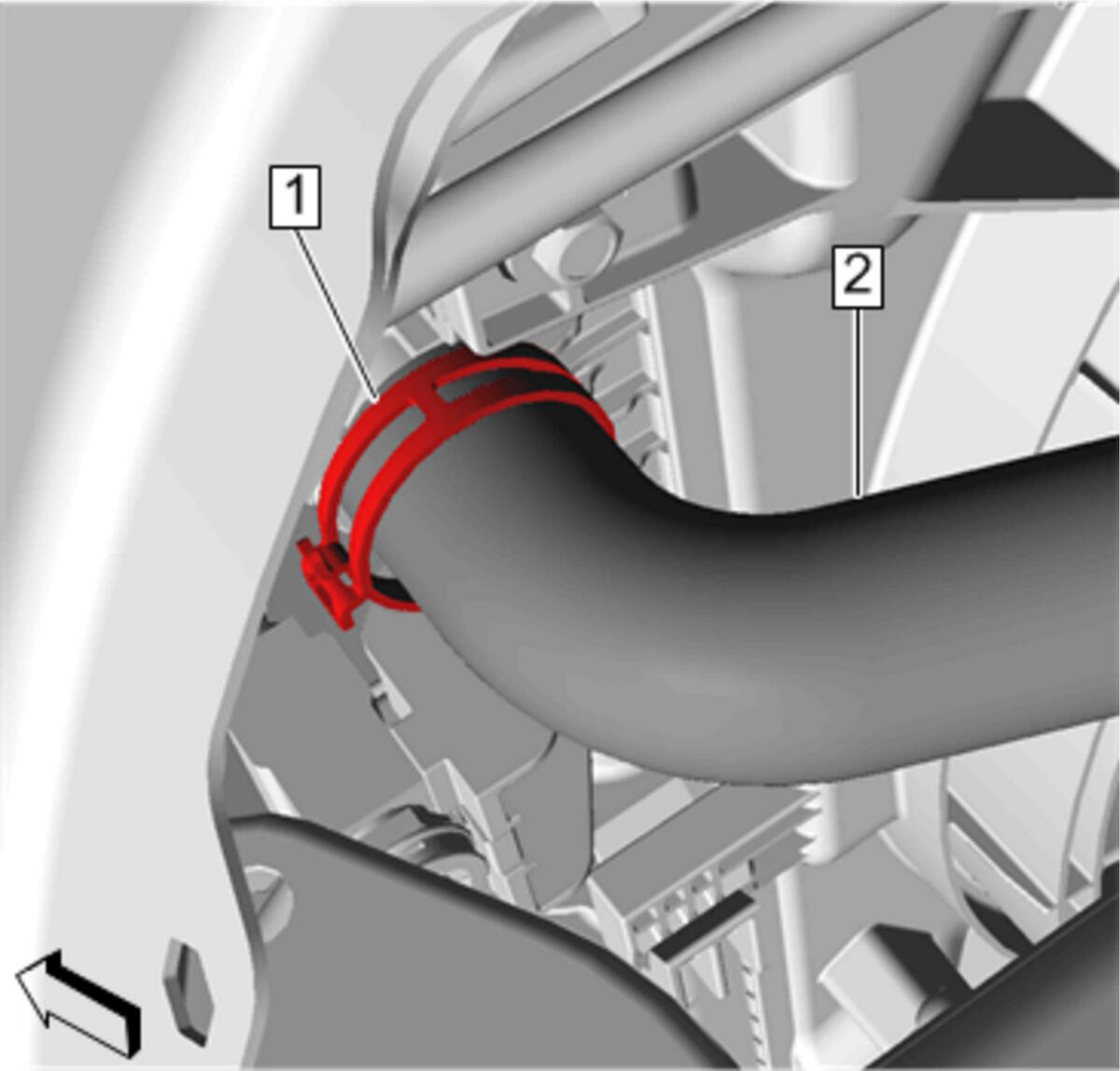

    5. Fig 5: Radiator Inlet Hose Clamp
    GM4644655Courtesy of GENERAL MOTORS COMPANY
  5. Install Radiator Inlet Hose (2) @ Radiator - Radiator Inlet Hose Replacement (LTG with KL9)
    6. Fig 6: Engine Coolant Air Bleed Hose
    GM4577205Courtesy of GENERAL MOTORS COMPANY
  6. Install Engine Coolant Air Bleed Hose (2) @ Radiator - Engine Coolant Air Bleed Hose Replacement (Radiator Surge Tank to Radiator to Engine Coolant Air Bleed Pipe LTG)

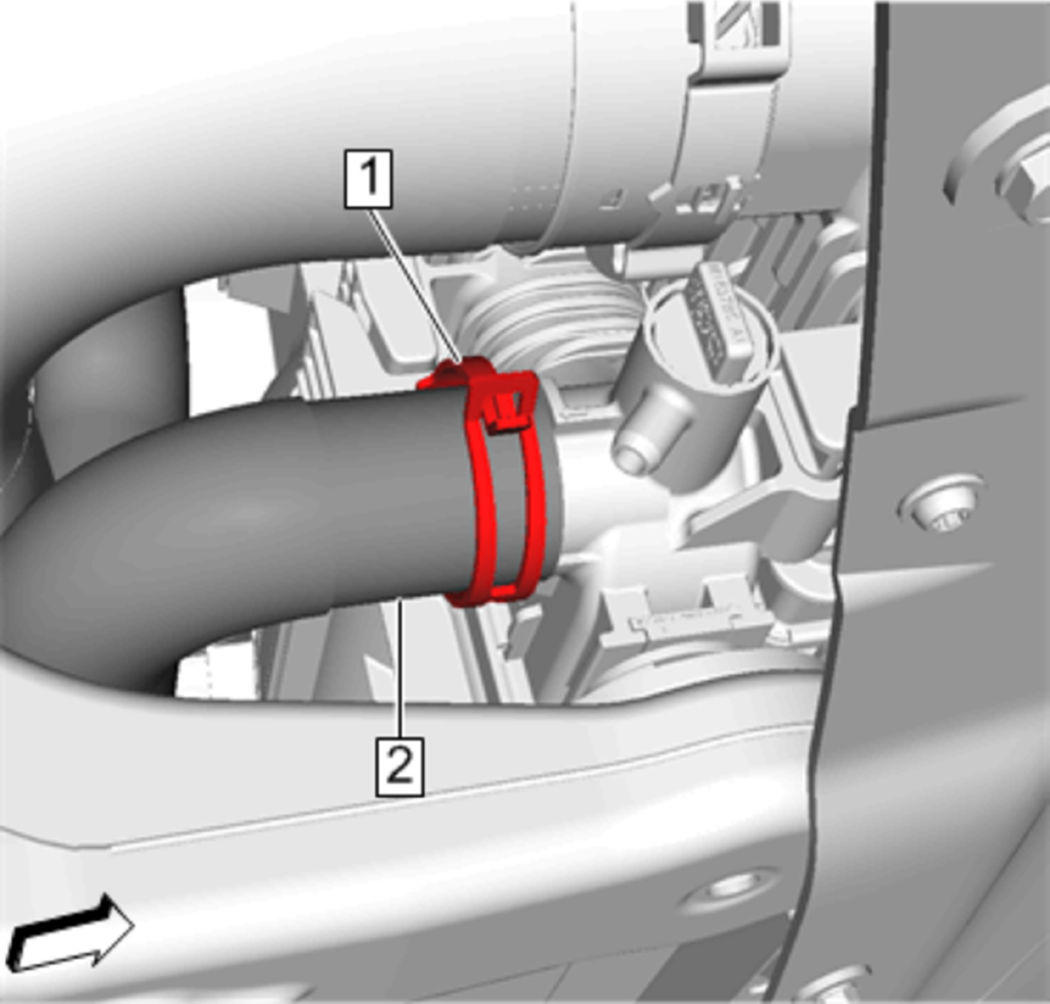

    7. Fig 7: Radiator Outlet Hose
    GM4644733Courtesy of GENERAL MOTORS COMPANY
  7. Install Radiator Outlet Hose (2) @ Radiator - Radiator Outlet Hose Replacement (LTG with KL9)

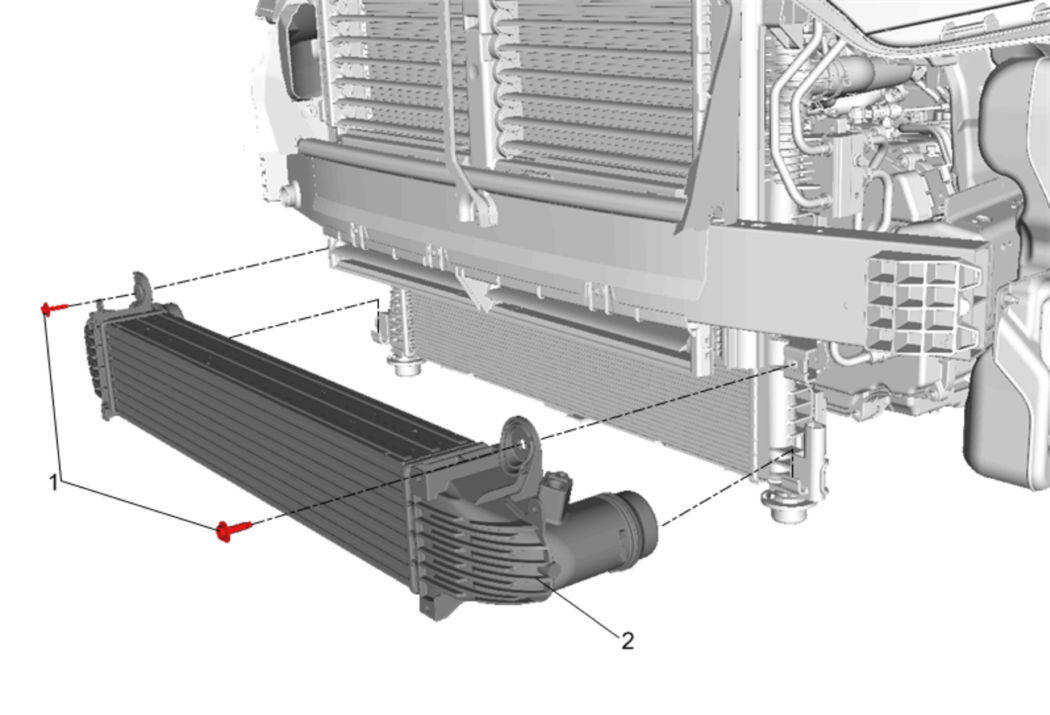

    8. Fig 8: Charge Air Cooler
    GM4644705Courtesy of GENERAL MOTORS COMPANY
  8. Install Charge Air Cooler (2) -Charge Air Cooler Replacement
  9. Install Air Conditioning Condenser - Air Conditioning Condenser Replacement
  10. Connect the electrical connectors.
    11. Fig 9: Radiator Air Upper Baffle
    GM4582602Courtesy of GENERAL MOTORS COMPANY
  11. Install Radiator Air Upper Baffle (1) - Radiator Air Upper Baffle Replacement (LH7 LTG LYX)
    12. Fig 10: Radiator Air Lower Baffle
    GM4582341Courtesy of GENERAL MOTORS COMPANY
  12. Install Radiator Air Lower Baffle (1) - Radiator Air Lower Baffle Replacement (LH7 LTG LYX)
  13. Fill the cooling system. Cooling System Draining and Filling (GE 47716) Cooling System Draining and Filling (Static)
  14. Start the engine and check for coolant leaks.
  15. Install Front Bumper Fascia -Front Bumper Fascia Replacement (Equinox)Front Bumper Fascia Replacement (Terrain)
