Installation Procedure

Fig 1: Radiator

Courtesy of GENERAL MOTORS COMPANY

Fig 2: Engine Coolant Fan

Courtesy of GENERAL MOTORS COMPANY

Install Engine Coolant Fan (1) @ Radiator - Engine Coolant Fan Replacement (LH7)

Fig 3: Radiator Upper Bracket-Right Side

Courtesy of GENERAL MOTORS COMPANY

Install Radiator Upper Bracket - Right Side (2) - Radiator Upper Bracket Replacement - Right Side

Fig 4: Radiator Upper Bracket-Left Side

Courtesy of GENERAL MOTORS COMPANY

Install Radiator Upper Bracket - Left Side (2) - Radiator Upper Bracket Replacement - Left Side

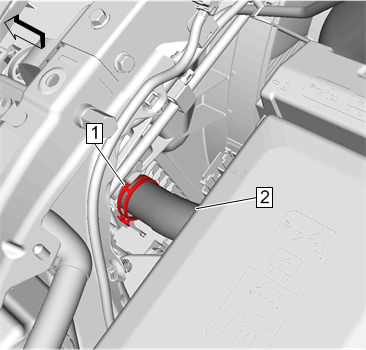

Fig 5: Radiator Inlet Hose Clamp

Courtesy of GENERAL MOTORS COMPANY

Install Radiator Inlet Hose (2) @ Radiator - Radiator Inlet Hose Replacement (LH7)

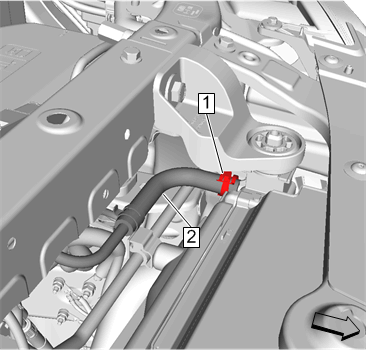

Fig 6: Engine Coolant Air Bleed Hose And Clamp

Courtesy of GENERAL MOTORS COMPANY

Install Engine Coolant Air Bleed Hose (2) @ Radiator - Engine Coolant Air Bleed Hose Replacement (Radiator Surge Tank to Exhaust Gas Recirculation Cooler Housing and Radiator LH7)

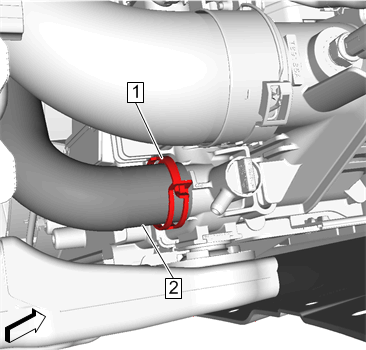

Fig 7: Radiator Outlet Hose Clamp

Courtesy of GENERAL MOTORS COMPANY

Install Radiator Outlet Hose (2) @ Radiator - Radiator Outlet Hose Replacement (LH7)
Install Charge Air Cooler - Charge Air Cooler Replacement
Install Air Conditioning Condenser - Air Conditioning Condenser Replacement
Connect the electrical connectors.

Fig 8: Radiator Air Upper Baffle

Courtesy of GENERAL MOTORS COMPANY

Install Radiator Air Upper Baffle (1) -Radiator Air Upper Baffle Replacement (LH7 LTG LYX)

Fig 9: Radiator Air Lower Baffle

Courtesy of GENERAL MOTORS COMPANY

Install Radiator Air Lower Baffle (1) - Radiator Air Lower Baffle Replacement (LH7 LTG LYX)
Fill the cooling system. Cooling System Draining and Filling (GE 47716) Cooling System Draining and Filling (Static)
Start the engine and check for coolant leaks.
Install Front Bumper Fascia - Front Bumper Fascia Replacement (Equinox)Front Bumper Fascia Replacement (Terrain)
