ABS Description And Operation: Notes

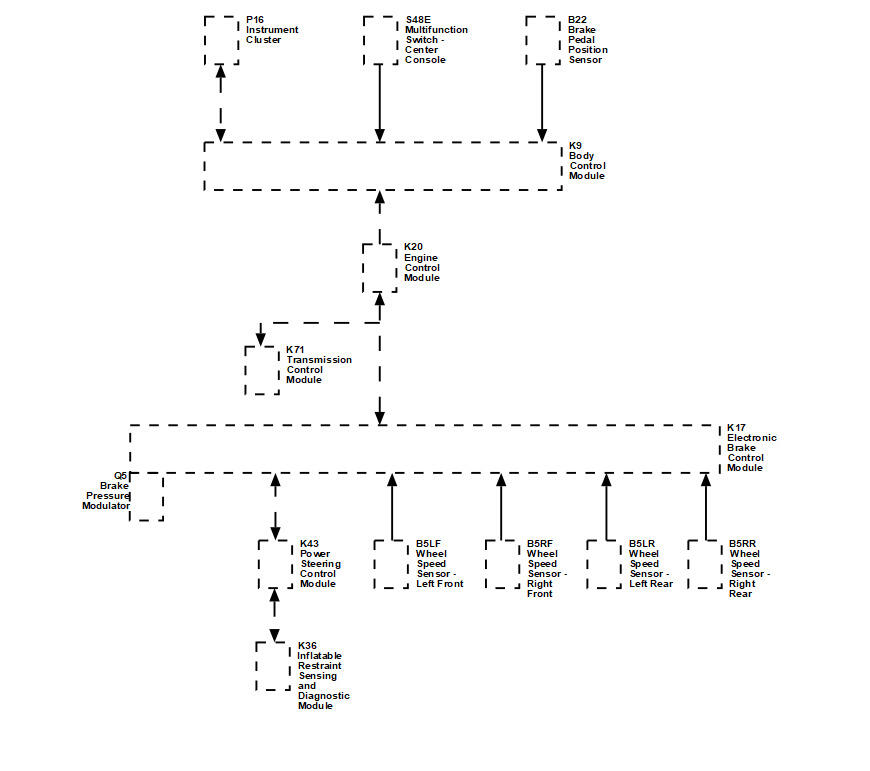

| Callout | Component Name |
|---|---|
| B22 | B22 Brake Pedal Position Sensor |
| S48E | S48E Multifunction Switch - Center Console |
| P16 | P16 Instrument Cluster |
| K9 | K9 Body Control Module |
| K20 | K20 Engine Control Module |
| K71 | K71 Transmission Control Module |
| K17 | K17 Electronic Brake Control Module |
| Q5 | Q5 Brake Pressure Modulator |
| K43 | K43 Power Steering Control Module |
| B5LF | B5LF Wheel Speed Sensor - Left Front |
| B5RF | B5RF Wheel Speed Sensor - Right Front |
| B5LR | B5LR Wheel Speed Sensor - Left Rear |
| B5RR | B5RR Wheel Speed Sensor - Right Rear |
| K36 | K36 Inflatable Restraint Sensing and Diagnostic Module |
This vehicle is equipped with a Continental Teves Mk100 ABS, traction control, electronic stability control and a hydraulic brake system with diagonal brake circuit split.
The electronic brake control module and the brake pressure modulator is serviced separately. The brake pressure modulator uses a four circuit configuration to control hydraulic pressure to each wheel independently.
Depending on options, the following vehicle performance enhancement systems are provided.
- ABS
- Traction control
- Stability control
- Dynamic rear proportioning
- Hill hold start assist
- Hydraulic brake assist
- Intelligent brake assist
- Optimized hydraulic braking system
The following components are involved in the operation of the above systems:
- Electronic brake control - The electronic brake control module controls the system functions and detects failures. It supplies voltage to the solenoid valves and pump motor.
- Brake pressure modulator - The brake pressure modulator contains the following components:
- Hydraulic pump with pump motor
- Four isolation valves
- Four dump valves
- Two traction/stability control supply valves
- Two traction/stability control isolation valves
- Brake pressure sensor
- Multi-axis acceleration sensor - The yaw rate, lateral acceleration and longitudinal acceleration sensors are combined into one multi-axis acceleration sensor, internal to the inflatable restraint sensing and diagnostic module.
- Steering wheel angle sensor - This sensor measures the rotation angle, angle velocity and direction of the steering wheel, providing serial data message inputs to the electronic brake control module. The steering wheel angle sensor signal is used to calculate the intended driving direction. This sensor is internal to the electric power steering gear.
- Traction control switch - The traction control system is manually disabled or enabled by pressing the traction control switch.
- Traction/Stability control switch - The electronic stability control is manually disabled or enabled by pressing and holding the traction control switch for five seconds.
- Active wheel speed sensors - The electronic brake control module sends a signal voltage to each wheel speed sensor. As the wheel spins, the wheel speed sensor produces an alternating current square wave signal. The electronic brake control module uses the frequency of the square wave signal to calculate the wheel speed.
