Installation Procedure

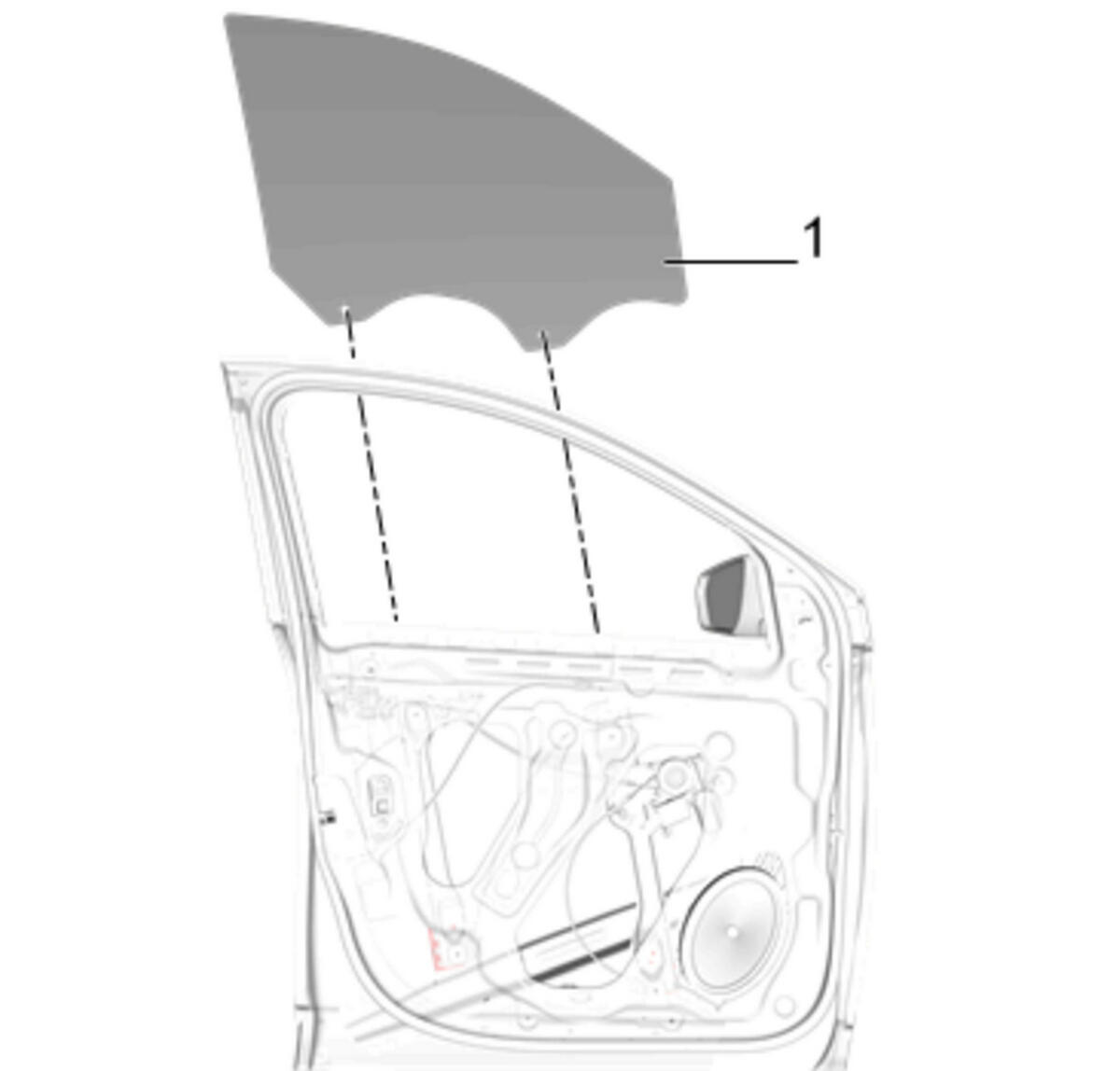

    Fig 1: Front Side Door Window
    GM4574235Courtesy of GENERAL MOTORS COMPANY
  1. Place the front side door window (1) into the door frame.
  2. Place the window in the full up position and tape in place. (1)

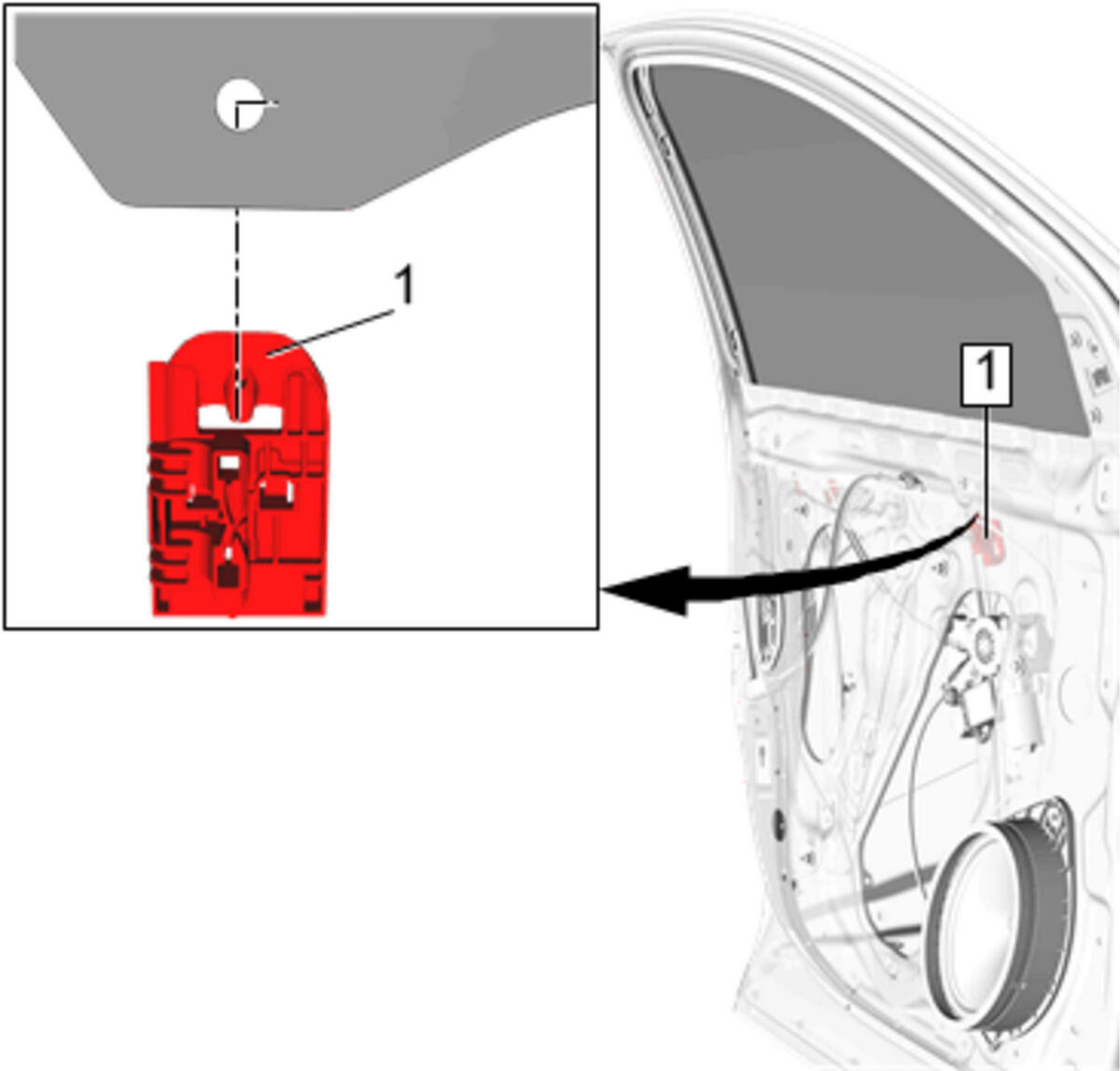

    3. Fig 2: Front Side Door Window Regulator Sash Retainers
    GM4574211Courtesy of GENERAL MOTORS COMPANY
  3. Place the window regulator in the full up position.
  4. Remove the tape holding the front side door window in the full up position.
  5. Install Front Side Door Window @ Front Side Door Window Regulator Sash Retainers (1) (Qty: 2)

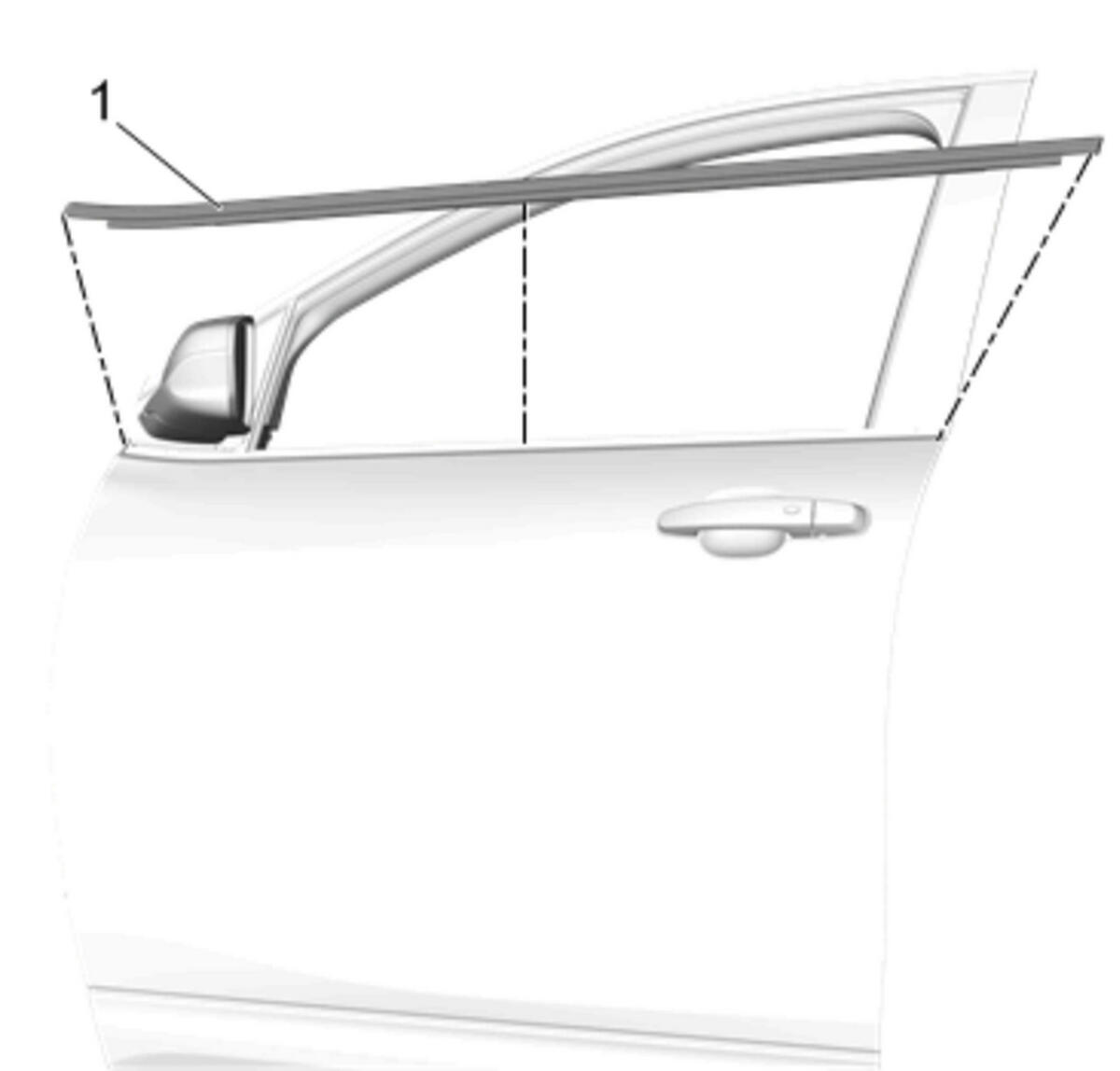

    6. Fig 3: Front Side Door Window Belt Reveal Molding
    GM4574003Courtesy of GENERAL MOTORS COMPANY
  6. Install Front Side Door Window Belt Reveal Molding (1). Refer to Front Side Door Window Belt Reveal Molding Replacement

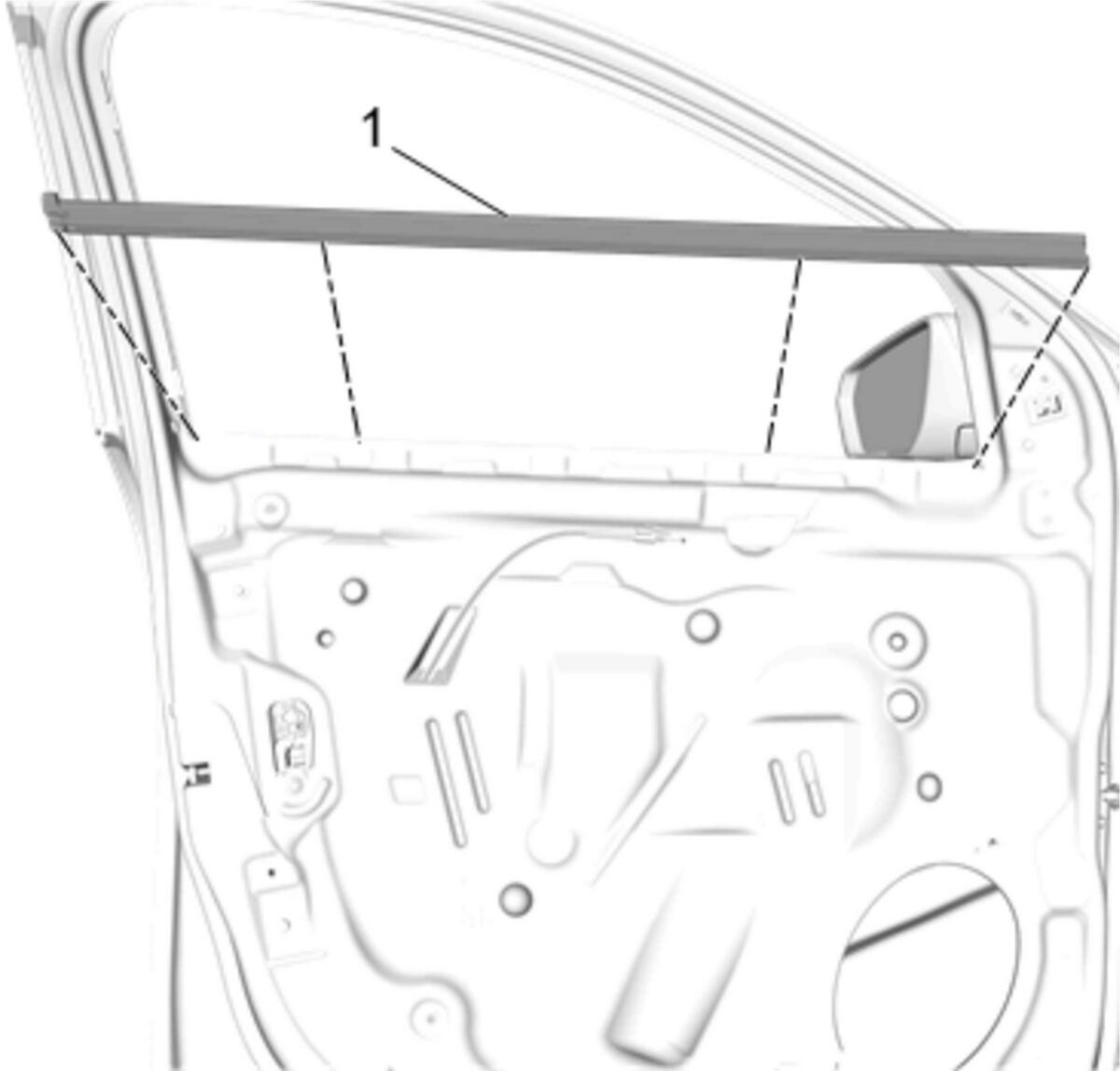

    7. Fig 4: Front Side Door Window Inner Sealing Strip
    GM4574004Courtesy of GENERAL MOTORS COMPANY
  7. Install Front Side Door Window Inner Sealing Strip (1). Refer to Front Side Door Window Inner Sealing Strip Replacement
  8. Install Front Side Door Window Garnish Molding. Refer to Front Side Door Window Garnish Molding Replacement (Equinox)Front Side Door Window Garnish Molding Replacement (Terrain)
  9. Install Front Side Door Water Deflector. Refer to Front Side Door Water Deflector Replacement (Equinox)Front Side Door Water Deflector Replacement (Terrain)
  10. Ensure the window system operates properly.
