Front Side Door Window Regulator Motor Replacement

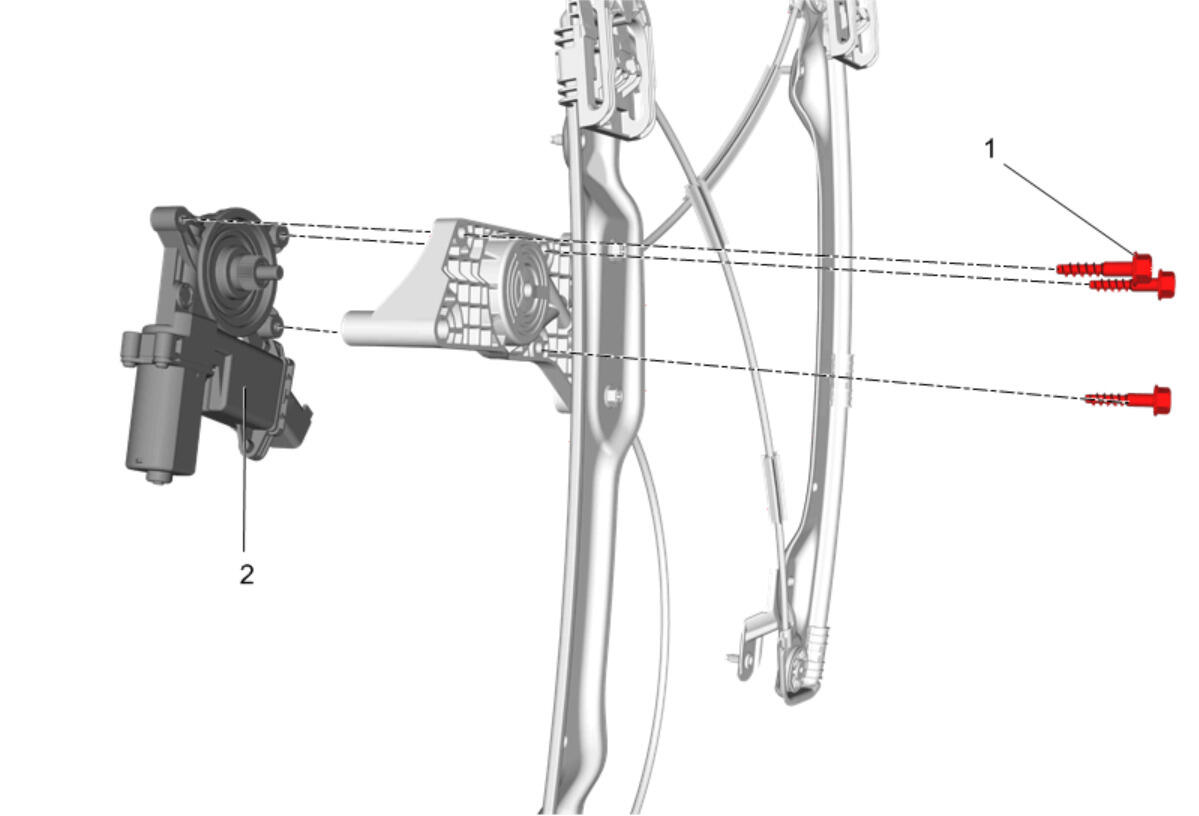

Fig 1: Front Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Side Door Window Regulator. Refer to Front Side Door Window Regulator Replacement
1	Front Side Door Window Regulator Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Front Side Door Window Regulator Motor Procedure Refer to Window Motor Programming - Express Function NOTE: Inspect the window for proper operation before installing the door trim.
