Front Side Door Window Control Switch Replacement (Terrain)

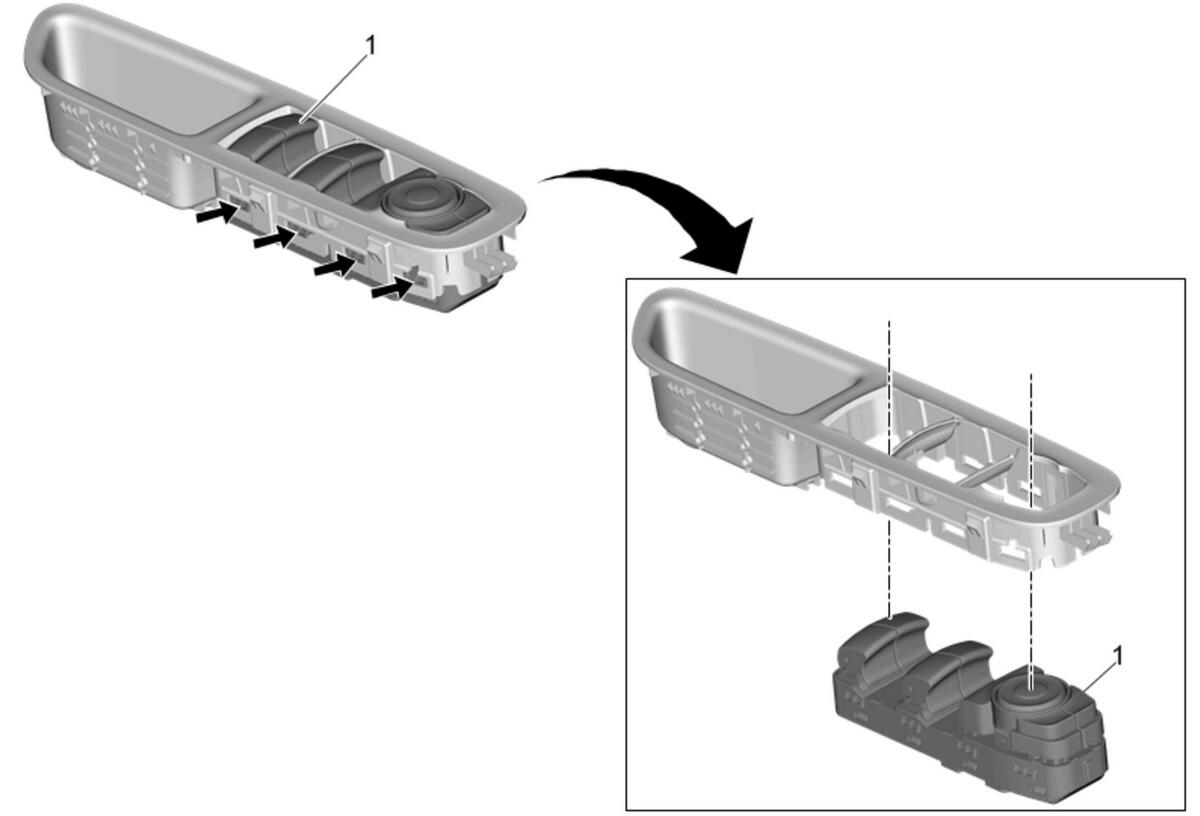

Fig 1: Front Side Door Window Control Switch (Terrain)
GM4733664Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Front Side Door Armrest Switch Mount Plate. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Driver Side, Terrain)
1 Front Side Door Window Control Switch

Procedure

  1. Release the front side door window control switch from the front side door armrest switch mount plate by depressing the tabs along each side of the switch.
  2. Disconnect the electrical connector.
